ST-IP2VFD QUICK
START GUIDE
www.nacebrands.com
www.securitytronix.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-IP2VFD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Security Tronix ST-IP2VFD

Summary of Contents for Security Tronix ST-IP2VFD

  • Page 1 ST-IP2VFD QUICK START GUIDE www.nacebrands.com www.securitytronix.com...
  • Page 2 ST-IP2VFD QUICK START GUIDE Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. About This Document This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice.

  • Page 3: Regulatory Information

    ST-IP2VFD QUICK START GUIDE Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 ST-IP2VFD QUICK START GUIDE 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.

  • Page 5: Safety Instruction

    ST-IP2VFD QUICK START GUIDE Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 6 ST-IP2VFD QUICK START GUIDE ● Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard. ● Please make sure that the plug is firmly connected to the power socket. When the product is mounted on wall or ceiling, the device shall be firmly fixed.
  • Page 7 ST-IP2VFD QUICK START GUIDE ● Do not place the camera in extremely hot, cold (the operating temperature shall be-22F~+140F,or -40°F ~ 140°F if the camera model has an “H” in its suffix), dusty or damp locations, and do not expose it to high electromagnetic radiation.
  • Page 8 ST-IP2VFD QUICK START GUIDE Table of Contents 1 Appearance Description ..............8 2 Installation ..................11 2.1 Disassembling ............... 12 2.2 Mounting ..............13 2.2.1 Ceiling Mounting ..........13 2.2.2 Ceiling Mounting with Gang Box ......17 2.2.3 Wall Mounting ............ 20 2.3 Image and Focus Adjusting ..........

  • Page 9: Appearance Description

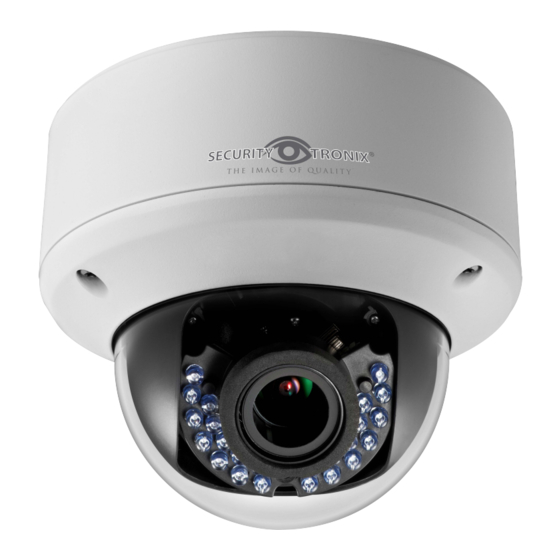

    ST-IP2VFD QUICK START GUIDE 1 Appearance Description The overview of the network dome camera is shown below. Figure 1-1 Overview...
  • Page 10 ST-IP2VFD QUICK START GUIDE Table 1-1 Description Description Bubble Black Liner Lens Mounting Base Reset Auxiliary Video Output Serial Port Micro SD Card Slot Network Cable Power Cable Audio/Alarm Interface  Press RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, and port No., etc.
  • Page 11 ST-IP2VFD QUICK START GUIDE Alarm/Audio Cable Interface Figure 1-2 Audio and Alarm Interfaces...

  • Page 12: Installation

    ST-IP2VFD QUICK START GUIDE 2 Installation Before you start:  Make sure the device in the package is in good condition and all the assembly parts are included.  Make sure all the related equipment is powered off during the installation.

  • Page 13: Disassembling

    ST-IP2VFD QUICK START GUIDE ● Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera may reflect back into the lens causing poor image quality. ● The foam ring around the lens must be seated flush against the inner surface of the bubble to isolate the lens from the IR LEDS.

  • Page 14: Mounting

    ST-IP2VFD QUICK START GUIDE 2.2 Mounting Ceiling Mounting Steps: 1. Disassemble the camera. Refer to the section 2.1. 2. Attach the drill template (supplied) to the place where you want to fix the camera. 3. According to the drill template as shown in Figure 2-2, drill three screw holes in the ceiling.
  • Page 15 ST-IP2VFD QUICK START GUIDE want to route the cables on the surface of the ceiling. Refer to Conduit Installation on the Side for side cable routing. 5. Attach the camera to the ceiling by aligning the holes of the back box with the holes on the ceiling.
  • Page 16 ST-IP2VFD QUICK START GUIDE Figure 2-4 Secure Black Liner and Bubble Conduit Installation on the Side If you want to route the cables from side of the camera, you need to follow the steps below to install a conduit for cable routing.
  • Page 17 ST-IP2VFD QUICK START GUIDE Water-proof Plug Side Cable Outlet Figure 2-5 Remove the water-proof plug 2. Route the power cable and network cable through the side outlet to the conduit. 3. Align and rotate clockwise the conduit to the side outlet tightly.

  • Page 18: Ceiling Mounting With Gang Box

    ST-IP2VFD QUICK START GUIDE For wall mounting, position the side outlet directly downward for water-proof. Downward Figure 2-7 Side Outlet Direction 2.2.2 Ceiling Mounting with Gang Box Steps: 1. Disassemble the camera. Refer to the section 2.1. 2. Install the gang box in the ceiling.
  • Page 19 ST-IP2VFD QUICK START GUIDE Mounting Base Figure 2-8 In-ceiling Mount 4. Route the cables through the hole in the center of the mounting base. 5. Align the camera with the mounting base. 6. Tighten the screws to secure the camera with the mounting base.
  • Page 20 ST-IP2VFD QUICK START GUIDE Figure 2-9 Secure Camera 9. Install the inner black liner back to the camera. 10. Align the bubble with the camera. 11. Tighten the screws to secure the bubble with the camera as shown in Figure 2-10.

  • Page 21: Wall Mounting

    ST-IP2VFD QUICK START GUIDE Figure 2-10 Secure the Bubble 2.2.3 Wall Mounting For wall mounting, you have to purchase a wall mount separately. Steps: 1. Disassemble the camera. Refer to the section 2.1. 2. Install the wall mount and mounting adapter as shown in Figure 2-11.
  • Page 22 ST-IP2VFD QUICK START GUIDE Mounting Adapter Mounting Base Figure 2-11 Install the Mounting Base 5. Route the cables through the hole in the center of the wall mount. 6. Align the camera with the mounting base. 7. Tighten the set screws to secure the camera with the mounting base.
  • Page 23 ST-IP2VFD QUICK START GUIDE Figure 2-12 Secure Camera 10. Install the inner black liner back to the camera. 11. Align the bubble with the camera. 12. Tighten the screws to secure the bubble with the camera.

  • Page 24: Image And Focus Adjusting

    ST-IP2VFD QUICK START GUIDE Figure 2-13 Secure Black Liner and Bubble 2.3 Image and Focus Adjusting Steps: 1. 3-axis adjustment. View the camera image using a test monitor. Rotate the panning table to adjust the panning position of the camera.
  • Page 25 ST-IP2VFD QUICK START GUIDE Tilting Panning Rotation Figure 2-14 3-axis Adjustment 2. Zoom and focus adjustment. View the camera image using a test monitor. Loosen the zoom lever and move the lever between T (Tele) and W (Wide) to obtain the appropriate view angle.
  • Page 26 ST-IP2VFD QUICK START GUIDE Zoom/Focus Lever Figure 2-15 Lens Adjustment...

  • Page 27: Setting The Network Camera Over The Lan

    ST-IP2VFD QUICK START GUIDE 3 Setting the Network Camera over the Purpose: To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet as your PC. Then, install the SADP or client software to search and change the IP of network camera.
  • Page 28 ST-IP2VFD QUICK START GUIDE  Use client software to list the online devices. Please refer to the user manual of client software for detailed information. 2. Change the IP address and subnet mask to the same subnet of your PC.
  • Page 29 ST-IP2VFD QUICK START GUIDE Figure 3-2 Search Online Devices Device can be searched and displayed in the list 15 seconds after it goes online; it will be removed from the list 45 seconds after it goes offline. Search online devices manually:...

  • Page 30: Modify Device Information

    ST-IP2VFD QUICK START GUIDE You can click on each column heading to order the information; you can click to show the device table and hide the network parameter panel on the right side, or click to show the network parameter panel.
  • Page 31 ST-IP2VFD QUICK START GUIDE Figure 3-4 Modify Network Parameters 3. Enter the IP address of the network camera in the address field of the web browser to view the live video. The default IP address is “192.0.0.64”. The default user name is “admin”, and password is “12345”.

  • Page 32: Accessing Via Web Browser

    ST-IP2VFD QUICK START GUIDE 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher...
  • Page 33 ST-IP2VFD QUICK START GUIDE Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. You may have to close the web browser to finish the installation of...
  • Page 34 ST-IP2VFD QUICK START GUIDE Figure 4-2 Download Plug-in Figure 4-3 Install Plug-in(1)
  • Page 35 ST-IP2VFD QUICK START GUIDE Figure 4-4 Install Plug-in(2) 6. Reopen the web browser after the installation of the plug-in and repeat the steps 2-4 to login. For detailed instructions of further configuration, please refer to the user manual of network camera.
  • Page 36 SECURITYTRONIX 2-Year Limited Fixed Camera Warranty Securitytronix. (the "Company") warrants to the Original Purchaser that the Fixed Camera is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. During the warranty period, the Company agrees to repair or replace, at its sole option, without charge to Original Purchaser, any defective component in the Fixed Camera.
