Security Tronix ST-IP-BT3.6-1 Quick Start Manual

®
SECURITY TRONIX
T H E I M A G E O F Q U A L I T Y

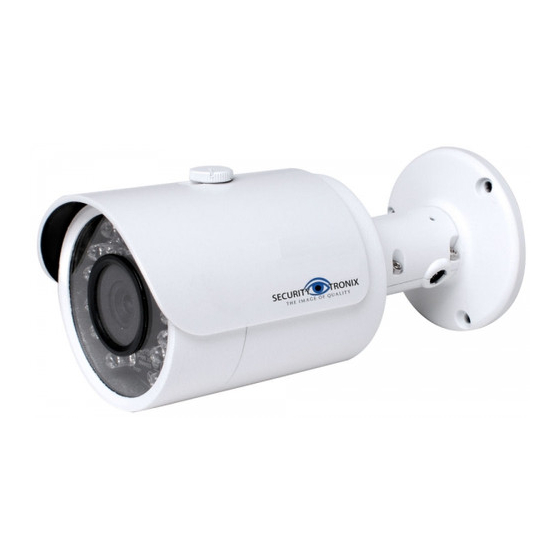

ST-IP-BT3.6-1
HD Mini IR Waterproof Fixed Lens
720P (1.3MP) Network Camera
Quick Start Guide Version 1.0
®
NACE BRANDS
Introduction
Thank you for purchasing our Network camera. This Quick Start
Guide is designed as a tool to help you get started as quickly as
possible. Detailed operation instructions are included on the
enclosed CD. Please keep this guide for future reference. Please
check the contents of the camera box to ensure that all items are
present as listed in the "included items" list below. Contact
SecurityTronix immediately if anything is missing or if there is
damage to the camera
Important Safeguards and Warnings
1. Electrical safety
All installation and operation of this camera should conform to
your local and national electrical safety codes.
The power shall conform to the requirements in the SELV (Safety
Extra Low Voltage) and the limited power source is rated 12V DC or
24V AC in the IEC60950-1. (Refer to the general introduction).
Please Note: Do not connect two power supply sources to the
device at the same time; it may result in damage to the device.
SecurityTronix assumes no liability or responsibility for improper
handling or installation, or unauthorized modi cation or
attempted repair, which could result in re, electrical shock or
physical harm to persons involved.
2. Physical considerations
Keep the camera free of any harsh physical impact, before, during
and after installation. Do not allow water to penetrate the case
during installation and ensure that all weatherproof seals are
properly in place to keep water out during normal operation.
3. Installation
Do not apply power to the camera until installation has been
completed and all wires have been run and are protected from
physical damage. Ensure there is a means to quickly disengage
power from the camera in the event of a short circuit.
4. Quali ed Operators
All examination, installation and operation of the camera should be
performed by persons quali ed for such work. SecurityTronix in not
liable for any damage to persons or property caused by improper
installation, unauthorized modi cations or attempted repairs to
the camera.
5. Environment
This series of network camera is designed to be installed in an
Important Safeguards and Warnings
environment free of strong, local electromagsusceptible to direct
beams of laser light, such as retail scanners. Lightning surge
suppressors are highly recommended to further help protect the
camera from high voltage discharges.
6. Maintenance
Use only a soft, lint-free cloth and mild detergent to clean the exterior
of the camera. Dome cameras have a plastic-based optical dome;
special care should be taken to use only cleansers which will not
scratch or cloud the plastic.
7. Accessories
Be sure to use only accessories made for or approved for this model of
camera. If you have any questions, contact SecurityTronix at (610)
429-1821, press 3, then 2.
Package Contents:
1 Network Camera
1Quick Start Guide
1 Installation Hardware
1 Software CD
1

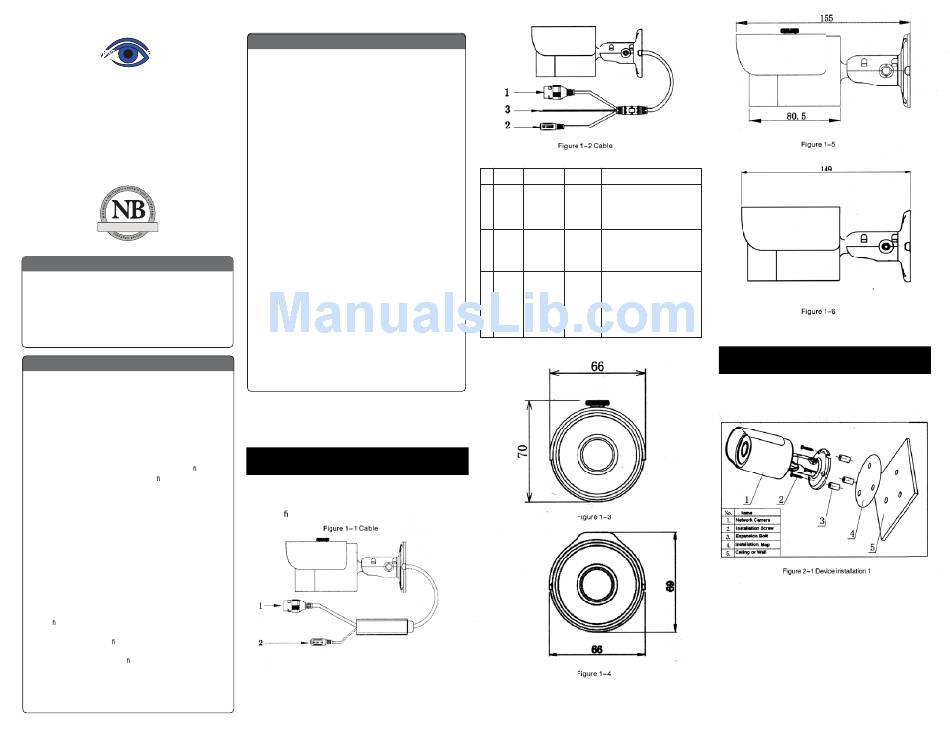

Mechanical Description
1.1 Cable
Please refer to the following diagrams for cable
identi cation of the camera
#
Port Function Type Note
LAN Network Ethernet Connect to standard
Port Port ethernet cable.
NOTE: Some devices
1
do not support PoE.
5.5mm
DC 12V Power Minimum current
input barrel
required is 1A
2 (1,000mA). Connector
is center-positive.
Used to initiate WPS
Reset WPS reset Bare
connections by connecting
wires
3
the wires for 2 seconds.
Keeping the wires together
for 5 seconds or longer will
reset the defualt IP address
2
Device Installation
