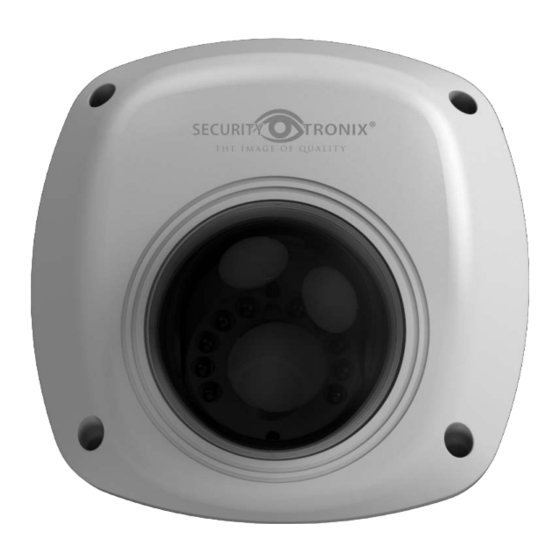

ST-IP4FWD
QUICK START
GUIDE
www.nacebrands.com
www.securitytronix.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-IP4FWD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Security Tronix ST-IP4FWD

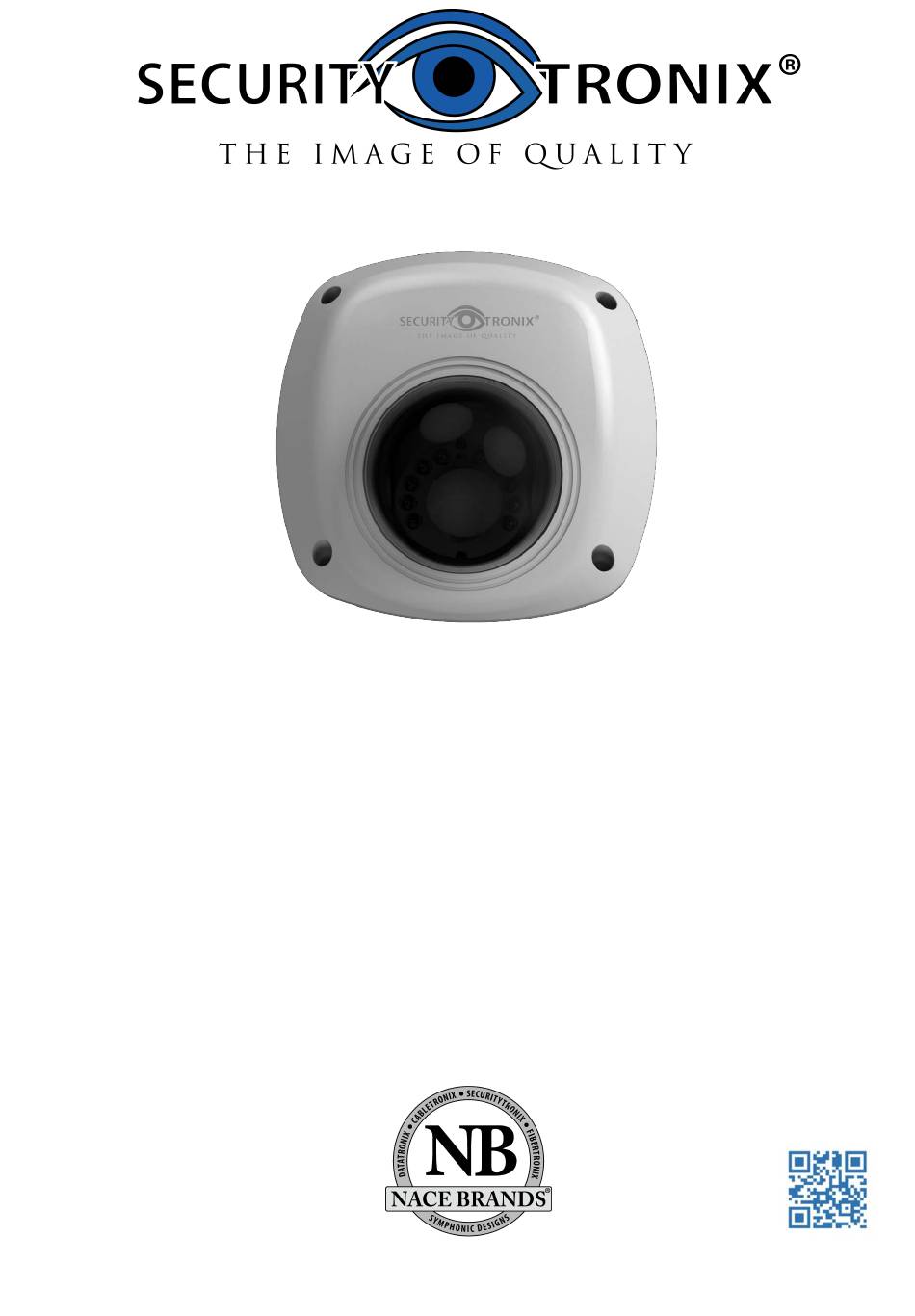

  • Page 1 ST-IP4FWD QUICK START GUIDE www.nacebrands.com www.securitytronix.com...
  • Page 2 ST-IP4FWD QUICK START GUIDE Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. About This Document This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice.
  • Page 3 ST-IP4FWD QUICK START GUIDE Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 ST-IP4FWD QUICK START GUIDE 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 5 ST-IP4FWD QUICK START GUIDE Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 6 ST-IP4FWD QUICK START GUIDE ● Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard. ● Please make sure that the plug is firmly connected to the power socket. When the product is mounted on wall or ceiling, the device shall be firmly fixed.
  • Page 7 ST-IP4FWD QUICK START GUIDE ● Do not place the camera in extremely hot, cold (the operating temperature shall be-22F~+140F,or -40°F ~ 140°F if the camera model has an “H” in its suffix), dusty or damp locations, and do not expose it to high electromagnetic radiation.
  • Page 8: Table Of Contents

    ST-IP4FWD QUICK START GUIDE Table of Contents 1 Appearance Description ..............8 2 Installation ..................11 2.1 Ceiling Mounting ............12 2.2 Ceiling Mounting with a Gang Box ........ 17 2.3 Ceiling Bracket Mounting ..........19 2.4 Wall Bracket Mounting ..........21 2.5 Install the Micro SD Card ..........
  • Page 9: Appearance Description

    ST-IP4FWD QUICK START GUIDE 1 Appearance Description Figure 1-1 Overview (1) Figure 1-2 Overview (2)
  • Page 10 ST-IP4FWD QUICK START GUIDE Table 1-1 Physical Description Description Front Cover Dome Drive Micro SD Card Slot Network Cable Lens IR LED Power Cable Audio/Alarm Cables Wi-Fi Antenna (If equipped) Serial Port Interface Hex Screw RESET/WPS Button  Press RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc.
  • Page 11 ST-IP4FWD QUICK START GUIDE  No.8 is the audio/alarm cable interface, of which the “I” mark connects to the alarm input, the “o” mark connects to the alarm output, the “GND” mark connects the grounding, and the “A” mark connects the audio output.
  • Page 12: Installation

    ST-IP4FWD QUICK START GUIDE 2 Installation Before you start: Make sure the device in the package is in good condition and all the  assembly parts are included. Make sure all the related equipment is power-off during  installation. Check the specification of the products for the installation ...
  • Page 13: Ceiling Mounting

    ST-IP4FWD QUICK START GUIDE ● Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera may reflect back into the lens causing poor image quality. ● The foam ring around the lens must be seated flush against the inner surface of the bubble to isolate the lens from the IR LEDS.
  • Page 14 ST-IP4FWD QUICK START GUIDE A different type of drill template might be provided because of the different batches of products. Also, the contained adapter plate matches with type II drill template may differs as well. Drill Template Hole A :for cables routed through the wall...
  • Page 15 ST-IP4FWD QUICK START GUIDE 3. Fix the adapter plate to the ceiling with the supplied expansion screws. Adapter Plate Side Outlet Figure 2-4 Fix the Adapter Plate If the supplied drill template is type II drill template, you can just skip step 3 and go straight to step 4.
  • Page 16 ST-IP4FWD QUICK START GUIDE 5. Connect the power cable, network cable, and the audio/alarm cables. Use a plier to remove the removable tab and route the cables via side outlet (as shown in Figure 2-4) if no cable hole is drilled in step 1, and connect the corresponding cables.
  • Page 17 ST-IP4FWD QUICK START GUIDE Adjusting Tool Rotation Tilt Figure 2-7 3-Axis Adjustment 9. Tighten the hex screw to fix the well-adjusted surveillance angle. 10. Align the front cover to the dome drive and tighten the set screws on the front cover.
  • Page 18: Ceiling Mounting With A Gang Box

    ST-IP4FWD QUICK START GUIDE 11. Tear off the protection film softly to complete the installation. Do not tear off the protection film until the installation is  completed. Do not touch the inside face of the bubble with your hands.
  • Page 19 ST-IP4FWD QUICK START GUIDE Figure 2-10 Fix the Dome Drive 3. Connect the power cable, network cable, and the alarm/audio cables. 4. Align the front cover to the dome drive and tighten the set screws on the front cover. Figure 2-11 Install the Front Cover...
  • Page 20: Ceiling Bracket Mounting

    ST-IP4FWD QUICK START GUIDE 5. Tear off the protection film softly to complete the installation. Do not tear off the protection film until the installation is  completed. Do not touch the inside face of the bubble with your hands.
  • Page 21 ST-IP4FWD QUICK START GUIDE Figure 2-12 Fix the Adapter Plate 3. Install the dome drive to the adapter plate. Figure 2-13 Fix the Dome Drive...
  • Page 22: Wall Bracket Mounting

    ST-IP4FWD QUICK START GUIDE 4. Align the front cover to the dome drive and tighten the set screws on the front cover to complete the installation. Figure 2-14 Install the Front Cover 5. Tear off the protection film softly to complete the installation.
  • Page 23 ST-IP4FWD QUICK START GUIDE 1. Install the wall bracket to the wall with the supplied screws in the wall bracket package. You need to purchases the matched ceiling bracket model separately if wall bracket mounting is adopted. Figure 2-15 Install Wall Bracket 2.
  • Page 24 ST-IP4FWD QUICK START GUIDE 3. Fix the dome drive to the wall bracket with the supplied screws. Figure 2-17 Install the Camera 4. Align the front cover to the dome drive and tighten the set screws on the front cover to complete the installation.
  • Page 25: Install The Micro Sd Card

    ST-IP4FWD QUICK START GUIDE Do not touch the inside face of the bubble with your hands.  2.5 Install the Micro SD Card This series of camera supports local storage, please refer to the following steps to install the micro SD card.
  • Page 26 ST-IP4FWD QUICK START GUIDE Mirco SD Card Figure 2-20 Install and Uninstall Micro SD Card...
  • Page 27: Setting The Network Camera Over The Lan

    ST-IP4FWD QUICK START GUIDE 3 Setting the Network Camera over the Purpose: To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet as your PC. Then, install the SADP or client software to search and change the IP of network camera.
  • Page 28 ST-IP4FWD QUICK START GUIDE  Use client software to list the online devices. Please refer to the user manual of client software for detailed information. Change the IP address and subnet mask to the same subnet of your PC. Refer to the following introductions to set IP address with SADP...
  • Page 29 ST-IP4FWD QUICK START GUIDE Figure 3-2 Search Online Devices Device can be searched and displayed in the list 15 seconds after it goes online; it will be removed from the list 45 seconds after it goes offline. Search online devices manually:...
  • Page 30 ST-IP4FWD QUICK START GUIDE You can click on each column heading to order the information; you can click to show the device table and hide the network parameter panel on the right side, or click to show the network parameter panel.
  • Page 31 ST-IP4FWD QUICK START GUIDE Figure 3-4 Modify Network Parameters 3. Enter the IP address of the network camera in the address field of the web browser to view the live video. The default IP address is “192.0.0.64”. The default user name is “admin”, and password is “12345”.
  • Page 32: Accessing Via Web Browser

    ST-IP4FWD QUICK START GUIDE 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher...
  • Page 33 ST-IP4FWD QUICK START GUIDE Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. You may have to close the web browser to finish the installation of...
  • Page 34 ST-IP4FWD QUICK START GUIDE Figure 4-2 Download Plug-in Figure 4-3 Install Plug-in (1)
  • Page 35 ST-IP4FWD QUICK START GUIDE Figure 4-4 Install Plug-in (2) 6. Reopen the web browser after the installation of the plug-in and repeat steps 2-4 to login. For detailed instructions of further configuration, please refer to the user manual of network camera.
  • Page 36 SECURITYTRONIX 2-Year Limited Fixed Camera Warranty Securitytronix. (the "Company") warrants to the Original Purchaser that the Fixed Camera is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. During the warranty period, the Company agrees to repair or replace, at its sole option, without charge to Original Purchaser, any defective component in the Fixed Camera.
