Installing the Switch 2124
Installation Procedures

4. Mount the Switch

After a transceiver has been installed and you have verified that the switch
passes its self test, you are ready to mount the switch in a stable location. The
Switch 2124 can be mounted in these ways:
I
I
I
Rack or Cabinet Mounting
The Switch 2124 is designed to be mounted in any EIA-standard 19-inch telco
rack or in an equipment cabinet such as a server cabinet.
W a r n i n g
For safe operation, please read the Installation Precautions on page
2-3 before mounting the switch.
E q u i p m e n t
If you are installing the switch in an equipment cabinet, use the clips and
C a b i n e t screws that came with the cabinet in place of the 12-24 screws that are
supplied with the switch. Plan which four holes you will be using in the cabinet
N o t e
and install all four clips and partially install the two bottom screws, as
described in step 2 on the next page. Then proceed to step 3.
1.
8 mm
M4 screws
2-8
in a rack or cabinet
on a horizontal surface
on a wall

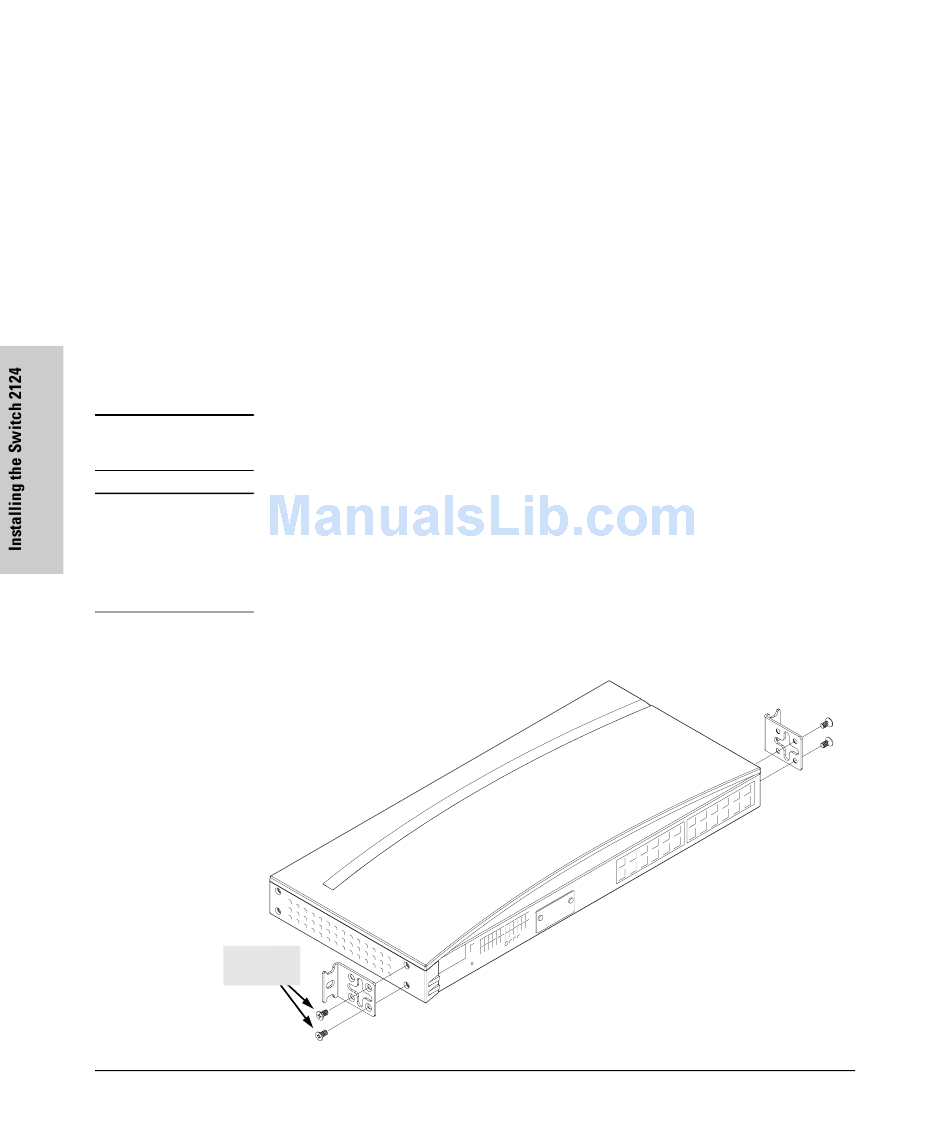

Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the switch with the included 8-mm M4 screws.
