PSEN opII4F Series PSEN sensor technology Operating Manual-1003502-EN-09...
Page 2
Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
Attach the safety light curtain to the mounting surface ............. Orientation ..........................General guidelines........................Safety light curtain alignment....................Wiring ............................General guidelines........................Connector pin assignment ......................Earthing the safety light curtain ....................Commissioning ........................System connection ........................Checking the safety light curtain....................Operating Manual PSEN opII4F Series 1003502-EN-09...
Page 4
Order reference for safety light curtains ................... Order reference for accessories ....................Mirror column set ........................Mirror columns .......................... Protective column sets......................Protective columns ........................Order reference: Component parts................... Appendix ..........................Check list ..........................EC declaration of conformity ....................Operating Manual PSEN opII4F Series 1003502-EN-09...
PSEN opII4F Series Introduction Validity of documentation This documentation is valid for the product PSEN opII4F Series from Version 3.0. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product.
Overview Safety light curtains of the PSEN opII4F Series are electrosensitive protective equipment (ESPE type: 4) in accordance with DIN EN 61496-1 and DIN EN 61496-2 (AOPD) for work- spaces in which machines, robots, and automated systems might pose a physical danger to their operators.
Page 7
(=2 clamping units per transmitter and receiver) – Protected field heights of 750-1200 mm, including: 1 PSEN opII Adv Bracket Kit3 (=3 clamping units per transmitter and receiver) – Protected field heights of 1350-1800 mm, including: 2 PSEN opII Adv Bracket Kit2 (=4 clamping units per transmitter and receiver) Operating Manual PSEN opII4F Series 1003502-EN-09...

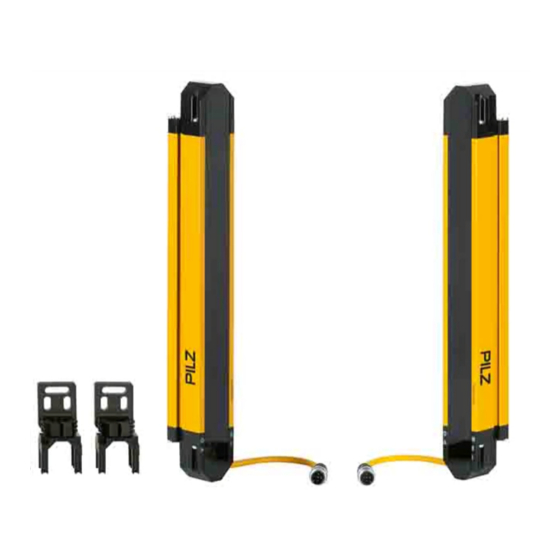

Transmitter Fig.: Front view of the safety light grid transmitter and receiver, protected field height 300-1800 mm with connection cable Legend [1] Protected field height [2] Effective protected field height [3] Tinted front panel Operating Manual PSEN opII4F Series 1003502-EN-09...
Page 9
Fig.: Front view of the safety light grid transmitter and receiver, protected field height 150 mm with connection cable Legend [1] Protected field height [2] Effective protected field height [3] Tinted front panel [4] LEDs for status information [5] Connection cable, M12 connector Operating Manual PSEN opII4F Series 1003502-EN-09...
PSEN opII4F Series Safety Intended use Safety light curtain of the PSEN opII4F Series are electrosensitive protective equipment of the ESPE type 4. They are used to protect personnel and systems. The safety light curtains are designed to securing hazardous areas within buildings and securing access within buildings with a resolution of 14 mm.
In safety-related applications, please comply with the mission time T in the safety-related characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSEN opII4F Series | 12 1003502-EN-09...
[ of the safety light grid. The safety light grid in the PSEN opII4F Series offers the following functions: Automatic start automatic restart Operation of 2 safety light grids that are parallel to one another and are installed with the...
Page 14
Check is begun to determine whether the protected field is clear and whether there are errors Response time (coded/uncoded), until OSSDs switch to the OFF state (see Technical details [ 47]) Minimum time that the OSSDs remain in the OFF state: 80 ms Operating Manual PSEN opII4F Series | 14 1003502-EN-09...
Time between the OSSDs changing to the OFF state and the hazardous machine move- ment stopping (including the reaction time of the connected relay) Approach speed The speed with which the object to be detected is nearing the danger zone in mm/s Operating Manual PSEN opII4F Series | 15 1003502-EN-09...
Avoid strong electromagnetic interference when operating the safety light grid. When operating the safety light grid, avoid the development of smoke, mist, or dust that would reduce the grid’s operating range. Operating Manual PSEN opII4F Series | 16 1003502-EN-09...
As a result, the safety light grid must be installed at a minimum distance from reflective sur- faces. Fig.: Interference with the function of the safety light curtain due to reflective surfaces – top view Operating Manual PSEN opII4F Series | 17 1003502-EN-09...
Page 18
Working distance between transmitter and receiver the maximum opening angle [ of the light beams emitted by the safety light cur- tain at: 5° = ± 2.5° in relation to the optical axis Operating Manual PSEN opII4F Series | 18 1003502-EN-09...
Page 19
For a working distance of 3 m or more: D = working distance in m x tan ⍺ Distance from reflective surfaces in m 0,35 0,174 0,131 Working distance in m Fig.: Relationship between minimum distance and working distance Legend [1] Minimum distance D Operating Manual PSEN opII4F Series | 19 1003502-EN-09...
[1] Minimum distance of 2 x D between two safety light curtains that are aligned [2] Working distance [3] Minimum distance D, dependent on the working distance [4] Working distance (≤ 3 m) with constant minimum distance D = 0.131 m Operating Manual PSEN opII4F Series | 20 1003502-EN-09...
Page 21
Minimum distance between two aligned safety light curtains with beam coding Lower value of the distances [2] and [3] Minimum distance between safety light curtains that are aligned in parallel < 2 m 2xD = 262 mm ≥ 2 m Operating Manual PSEN opII4F Series | 21 1003502-EN-09...
If several adjacent safety light curtains need to be installed, steps must be taken to ensure that the transmitter on one safety light curtain does not interfere with the receiver on an- other safety light curtain. Operating Manual PSEN opII4F Series | 22 1003502-EN-09...
Please consider this reduction when positioning the safety light curtain. You should not use more than two mirrors per device. Any dust or dirt on the mirror’s reflective surface will drastically reduce the operating range. Operating Manual PSEN opII4F Series | 23 1003502-EN-09...
If you want to use the safety light grid without dead zones, use the PSEN opII Adv Bracket Kit for safety light curtain installation (see Dead-zone-free installation [ 6]). Use the installation information provided in the PSEN opII Adv Bracket Kit operating manual. Operating Manual PSEN opII4F Series | 24 1003502-EN-09...
Page 25
Fig.: Placement of the dead zones in vertical safety light curtain installation Legend [1] Last light beam (wiring side) [2] Last light beam (cable side) [3] Wiring-side dead zone [4] Cable-side dead zone Operating Manual PSEN opII4F Series | 25 1003502-EN-09...
(see Technical details [ 47]). The installation surface must be at least as wide as the standard installation kit The installation surface may have a flatness imperfection of no more than 1.5 mm. Operating Manual PSEN opII4F Series | 26 1003502-EN-09...
Ensure that the holder is flush with the end cap (see diagram). Attach the holder to the end cap with the tightening screws (Torx T10) included in delivery. [1] Torque setting 0,7 Nm Operating Manual PSEN opII4F Series | 27 1003502-EN-09...
Page 28
The angle [4] of the flexible bracket [3] on the holder [2] may not be more than 2°. The flexible bracket [3] must be seated on one side of the holder [2]. Operating Manual PSEN opII4F Series | 28 1003502-EN-09...
Page 29
Ensure that the transmitters and receivers are properly installed in a suitable place. Ensure that the transmitters and receivers are posi- tioned at the same height and parallel to one another. Operating Manual PSEN opII4F Series | 29 1003502-EN-09...
[2] Horizontal: by moving up and down in the slots in a horizontal direction [3] The axis orientation can be changed by rotating the flexible bracket right or left Pilz recommends that modifications to the orientation of the transmitter/receiver be made in the following sequence: 1.
Tighten the clamping screws [1] and the nuts [2] on the flexible bracket to a torque of 1,1 Tighten the brackets’ mounting screws [3] on the installation surface to a torque of 3 Nm. Operating Manual PSEN opII4F Series | 31...
– Use the order reference of the cable listed (see Accessories, connection to PDP67 [ 59]) Connection to other evaluation devices – Use the order reference of the cable listed (see Accessories, connection to other evaluation devices [ 60]) Operating Manual PSEN opII4F Series | 32 1003502-EN-09...
Ensure that the wiring has been performed according to the truth table. Receiver/transmitter uncoded A-coded B-coded Receiver 24 V 24 V 24 V 24 V Transmitter 24 V 24 V 24 V 24 V Truth table for checking the pin assignment Operating Manual PSEN opII4F Series | 33 1003502-EN-09...
2-channel with feasibility monitoring OSSD signals are evaluated A test pulse lasting no longer than 300 µs is bridged Suitable Pilz evaluation devices are, for example: PNOZelog for monitoring safety light curtains PNOZsigma for monitoring safety light curtains PNOZ X for monitoring safety light curtains PDP67 ION and PDP67 ION HP –...
Page 35
– Perform a new risk assessment and hazard analysis and determine the new minimum distance [ to the hazardous area with the extended response time. Operating Manual PSEN opII4F Series | 35 1003502-EN-09...
PSEN opII4F Series CAUTION! When considering the examples, please note that Pilz accepts no respons- ibility for the specific application. In particular, they may not be used without testing and approval. The system manufacturer is responsible for creating appropriate safety con- cepts for the overall plant and for connection to the programmable safety system (including the user program).
Page 37
The danger zone must be secured so that it is impossible to access by circumventing the protected field. Protected field perimeters The protected field perimeters (see Dimensions [ 45]) must completely secure the hazardous area, making it inaccessible. Operating Manual PSEN opII4F Series | 37 1003502-EN-09...
Device status Reception quality: – III: Best quality OSSD status (protected field LED) – I: Worst quality Status of the beam coding when the protected field is interrupted LED indicator on the receiver Operating Manual PSEN opII4F Series | 38 1003502-EN-09...
Ready for operation Green Green The current reception quality status is indicated Safety light curtain is started. The safety light curtain is not Green Green Green Green aligned. Protected field is interrupted, Uncoded Green Operating Manual PSEN opII4F Series | 39 1003502-EN-09...
Page 40
Overtemperature; OSSD in the OFF state Green 1. Ensure that the ambient tem- perature corresponds to the in- formation in the Technical details [ 47]. Restart [ the safety light curtain. Operating Manual PSEN opII4F Series | 40 1003502-EN-09...
2. Perform a safety light curtain restart [ 41]. Safety light grid restart a Disconnect the supply voltage from the safety light curtain and reconnect it. The auto- matic start [ begins. Operating Manual PSEN opII4F Series | 41 1003502-EN-09...
Regular checks can bring to light changes to the plant/machine, safeguards and ambient conditions. Regular check Pilz recommends that the safety light curtain be checked every six months. Check the safety light curtain’s front panel. – Scratched front panel: Replace the safety light curtain.
The exchange of components of the safety light curtain A changed connection of the safety light curtain (change from uncoded connection to coded connection). You must comply with the requirements of the applicable national regulations. Operating Manual PSEN opII4F Series | 43 1003502-EN-09...
Checklist [ which should help you perform the safety check. Maintenance Other than cleaning the lens covers, the PSEN opII4F Series requires no other form of maintenance. WARNING! Loss of the safety function due to the use of improper cleaning agents Improper cleaning agents can damage the front screen and lead to malfunc- tions.
Fig.: Front view of the safety light curtain transmitter, protected field height 150 mm with connection cable Legend [1] Total length of transmitter (without cable) [2] Effective protected field height [3] Protected field height (see Technical details [ 47]) [4] Optical centre axis Operating Manual PSEN opII4F Series | 45 1003502-EN-09...
Page 46
PSEN opII4F Series [5] Cable-side beam pair for beam synchronisation [6] Wiring-side beam pair for beam synchronisation [7] Eye shield [8] Dead zone 70.3 mm [9] Protected field perimeter markings Operating Manual PSEN opII4F Series | 46 1003502-EN-09...
300 µs Supply interruption before de-energisation 600 µs 600 µs 600 µs Response time t1 5,9 ms 7,2 ms 8,4 ms Response time (with beam coding) 11,7 ms 15,2 ms 15,2 ms Operating Manual PSEN opII4F Series | 47 1003502-EN-09...
Page 48
M12, 5-pin male con- M12, 5-pin male con- M12, 5-pin male con- nector nector nector Max. cable length 50 m 50 m 50 m Material Housing Aluminium Aluminium Aluminium End caps Front screen Operating Manual PSEN opII4F Series | 48 1003502-EN-09...
Page 50
EN 60068-2-27 EN 60068-2-27 EN 60068-2-27 Number of shocks Acceleration Duration 11 ms 11 ms 11 ms Bracket Adv Bracket Kit Adv Bracket Kit Adv Bracket Kit Protection type Housing IP65 IP65 IP65 Operating Manual PSEN opII4F Series | 50 1003502-EN-09...
14 mm 14 mm Electrical data 632086 632087 632088 Supply voltage Voltage 24 V 24 V 24 V Kind Voltage tolerance -25 %/+20 % -25 %/+20 % -25 %/+20 % Residual ripple DC Operating Manual PSEN opII4F Series | 51 1003502-EN-09...
Page 52
Vibration In accordance with the standard EN 60068-2-6 EN 60068-2-6 EN 60068-2-6 Frequency 10 - 150 Hz 10 - 150 Hz 10 - 150 Hz Amplitude 0,75 mm 0,75 mm 0,75 mm Operating Manual PSEN opII4F Series | 52 1003502-EN-09...
Page 53
1.354 mm Width 35 mm 35 mm 35 mm Depth 40 mm 40 mm 40 mm Weight 3.088 g 3.500 g 3.913 g Where standards are undated, the 2015-12 latest editions shall apply. Operating Manual PSEN opII4F Series | 53 1003502-EN-09...
300 µs Supply interruption before de-energisation 600 µs 600 µs 600 µs Response time t1 17,4 ms 18,7 ms 20 ms Response time (with beam coding) 36,4 ms 36,4 ms 36,4 ms Operating Manual PSEN opII4F Series | 54 1003502-EN-09...
Page 55
M12, 5-pin male con- M12, 5-pin male con- M12, 5-pin male con- nector nector nector Max. cable length 50 m 50 m 50 m Material Housing Aluminium Aluminium Aluminium End caps Front screen Operating Manual PSEN opII4F Series | 55 1003502-EN-09...
EN ISO mode 13849-1: 13849-1: 13849-1: SIL CL [1/h] 2015 2015 2015 Category [year] 2-ch. OSSD PL e Cat. 4 SIL CL 3 1,10E-08 – 1,86E-05 Explanatory notes for the safety-related characteristic data: Operating Manual PSEN opII4F Series | 56 1003502-EN-09...
Page 57
A safety function's SIL/PL values are not identical to the SIL/PL values of the units that are used and may be different. We recommend that you use the PAScal software tool to calculate the safety function's SIL/PL values. Operating Manual PSEN opII4F Series | 57 1003502-EN-09...
Safety light curtain for finger protection, protected field height of 1800 632 091 S-14-180 Order reference for accessories Standard installation kit Product type Features Order No. PSEN opII Bracket Standard installation with flexible bracket 632 015 Operating Manual PSEN opII4F Series | 58 1003502-EN-09...
Page 59
380 212 M12am, 3m male con- male con- nector, angled nector, angled PSS67 Cable M12af M12, 5-pin fe- M12, 5-pin 380 213 M12am, 5m male con- male con- nector, angled nector, angled Operating Manual PSEN opII4F Series | 59 1003502-EN-09...
Page 60
PSEN op cable 30 m M12, 5-pin fe- 630 350 angle M12 5-pole male con- nector, angled PSEN op cable 50 m M12, 5-pin fe- 630 365 angle M12 5-pole male con- nector, angled Operating Manual PSEN opII4F Series | 60 1003502-EN-09...
For safety light grcurtain id for finger protection, protected field height 632285 s-14-090 emitter of 900 mm PSEN opII4F- For safety light curtain for finger protection, protected field height of 632286 s-14-105 emitter 1050 mm Operating Manual PSEN opII4F Series | 62 1003502-EN-09...
Page 63
For safety light curtain for finger protection, protected field height of 632390 s-14-165 receiver 1650 mm PSEN opII4F- For safety light curtain for finger protection, protected field height of 632391 s-14-180 receiver 1800 mm Operating Manual PSEN opII4F Series | 63 1003502-EN-09...
Has the minimum distance been determined with the response time according to the beam coding (see Technical details [ 47])? Has the calculated minimum distance been maintained at all points? Operating Manual PSEN opII4F Series | 64 1003502-EN-09...
Page 65
Interrupt the protected field at various points: The hazardous movement must be shut down. Switch off safety light curtain Is the hazardous movement stopped imme- diately when you switch off? Operating Manual PSEN opII4F Series | 65 1003502-EN-09...
European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Authorised representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ostfildern, Germany Operating Manual PSEN opII4F Series...
