Summary of Contents for Pilz PSEN 1.1p-20

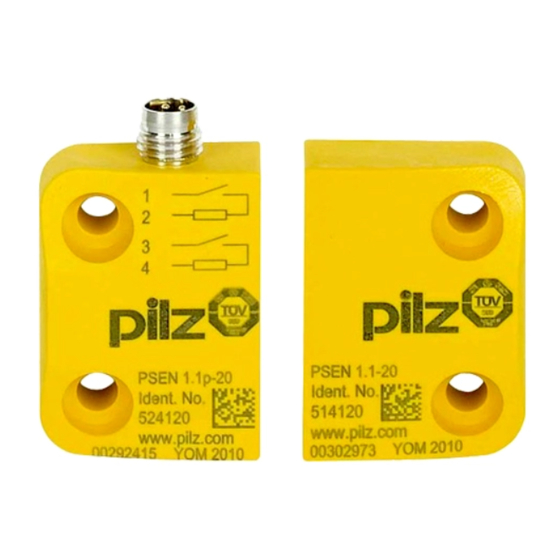

- Page 1 PSEN 1.1p-20 PSEN sensor technology Operating Manual-20990-EN-11...
- Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Requirements and connection to evaluation devices ............9 Installation ..........................12 Adjustment ..........................13 Periodic test ..........................14 Dimensions in mm .........................14 Technical details ........................15 Safety characteristic data......................16 Order reference ........................17 System ............................17 Accessories..........................17 EC declaration of conformity ....................19 UKCA-Declaration of Conformity ..................19 Operating Manual PSEN 1.1p-20 20990-EN-11... -
Page 4: Introduction
PSEN 1.1p-20 Introduction Validity of documentation This documentation is valid for the product PSEN 1.1p-20. It is valid until new documenta- tion is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 5: Safety
EN ISO 13849 and EN 62061. However, this does not guarantee the functional safety of the overall plant/machine. To achieve the relevant safety level of the overall plant/ machine’s required safety functions, each safety function needs to be considered separ- ately. Operating Manual PSEN 1.1p-20 20990-EN-11... -
Page 6: Use Of Qualified Personnel
– If substitute actuators are used, these must be installed as described under Installation [ 12]. – If the original actuators are replaced with substitute actuators, the ori- ginal actuators must be destroyed before disposal. Operating Manual PSEN 1.1p-20 20990-EN-11... -
Page 7: Unit Features
Function description If the actuator is within the response range (safety gate closed), the safety contacts of the safety switch are closed. Operate the PSEN 1.1p-20 in conjunction with the following components: Actuator PSEN 1.1-20 (see Order reference [ 17]) and... -
Page 8: Operating Distances
Lateral and vertical offset Legend [1] Lateral offset [2] Vertical offset Actuator PSEN 1.1-20 The stated values are valid at a temperature of 20 °C. Assured operating distance S in mm Lateral offset Vertical offset Operating Manual PSEN 1.1p-20 20990-EN-11... -
Page 9: Wiring
Requirements and connection to evaluation devices For use of PSEN 1.1p-20 in accordance with DIN EN 60947-5-3 an evaluation device must be connected. Connect the PSEN 1.1p-20 either with a certified Pilz evaluation device or with an evaluation device with defined properties Operating Manual PSEN 1.1p-20... - Page 10 [ of PSEN 1.1p-20 – Always comply with the max. switching current safety contacts of PSEN 1.1p-20. Outputs at the evaluation device must only be switched on again when both reed con- tacts at the safety switch have been opened and closed (partial operation lock) Operating Manual PSEN 1.1p-20...
- Page 11 (s. operating manual for the relevant evaluation device). PSENmag Evaluation device Input circuit Input circuit Fig.: Dual-channel connection PSEN 1.1p-20 to the input circuits of an evaluation device Examples for connection to Pilz evaluation devices: PNOZ s3 PSENmag brown...
-
Page 12: Installation
(e.g. brass or stainless steel). Avoid the risk of damages from foreseeable external influences by attaching the safety switch and actuator. If necessary, safety switch and actuator have to be protected. Operating Manual PSEN 1.1p-20 | 12 20990-EN-11... -
Page 13: Adjustment
The protection type (see Technical details [ 15]) can only be achieved by using the Pilz connection leads available as an accessory. Adjustment The safety switch may only be used with the corresponding actuator PSEN 1.1-20. Always test the function with a connected evaluation device. -
Page 14: Periodic Test
Carry out a monthly function test on the safety switch and actuator. Always test the function with a connected evaluation device. The safety function may only be checked by qualified personnel. Dimensions in mm Operating Manual PSEN 1.1p-20 | 14 20990-EN-11... -
Page 15: Technical Details
Duration 11 ms Airgap creepage Pollution degree Rated insulation voltage 25 V Rated impulse withstand voltage 0,33 kV Protection type Housing IP65, IP67 Connector IP67 Operating distances Assured operating distance Sao 8 mm Operating Manual PSEN 1.1p-20 | 15 20990-EN-11... -
Page 16: Safety Characteristic Data
You must comply with the safety characteristic data in order to achieve the required safety level for your plant/machine. B10d in accordance with EN ISO 13849-1: 2015 TM [year] in accordance with EN ISO and EN 62061 13849-1:2015 500.000 Operating Manual PSEN 1.1p-20 | 16 20990-EN-11... -
Page 17: Order Reference
Connector, input module Product type Features Order no. PSEN ma adapter Adapter for connecting the safety switch to PSS67 and PDP67 380300 PDP67 F 8DI ION Decentralised input module IP67 for PNOZmulti 773600 Operating Manual PSEN 1.1p-20 | 17 20990-EN-11... - Page 18 PSS67 Cable M8sf M12sm Female connector, M8 Male connector M12 380200 straight, 4-pin straight 380201 10 m 380202 30 m 380203 PSS67 Cable M8af M12sm Female connector M8 380204 angled, 4-pin 380205 10 m 380206 30 m 380207 Operating Manual PSEN 1.1p-20 | 18 20990-EN-11...
-
Page 19: Ec Declaration Of Conformity
This product/these products meet the requirements of the directive 2006/42/EC for ma- chinery of the European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Authorised representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ostfildern, Germany UKCA-Declaration of Conformity This product(s) complies with following UK legislation: Supply of Machinery (Safety) Regu- lation 2008. - Page 20 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
