2.4 Clock Source

There are two clock sources for ESP32-C3 family, namely an external crystal clock source and an RTC clock
source.

2.4.1 External Clock Source (compulsory)

Currently, the ESP32-C3 family firmware only supports 40 MHz crystal. The specific capacitance of C1 and C2
depends on further testing of, and adjustment to, the overall performance of the whole circuit. Please add a
component in series on the XTAL_P clock trace to reduce the drive capability of the crystal and to minimize the
TBD
3 L3
impact of crystal harmonics on RF performance. The value of this component (initially of 24 nH) depends on
2
further testing. Note that the accuracy of the selected crystal needs to be ±10 ppm.
GND
Espressif Systems
24 R3 0 SPIQ
23 R4 0 SPID
22 SPICLK
R5 0
21 SPICS0
20 R6 0 SPIWP
19 19 R7 R7 0 0 SPIHD SPIHD
18
VDD_SPI
17
C10 C11
0.1uF 1uF
GND GND

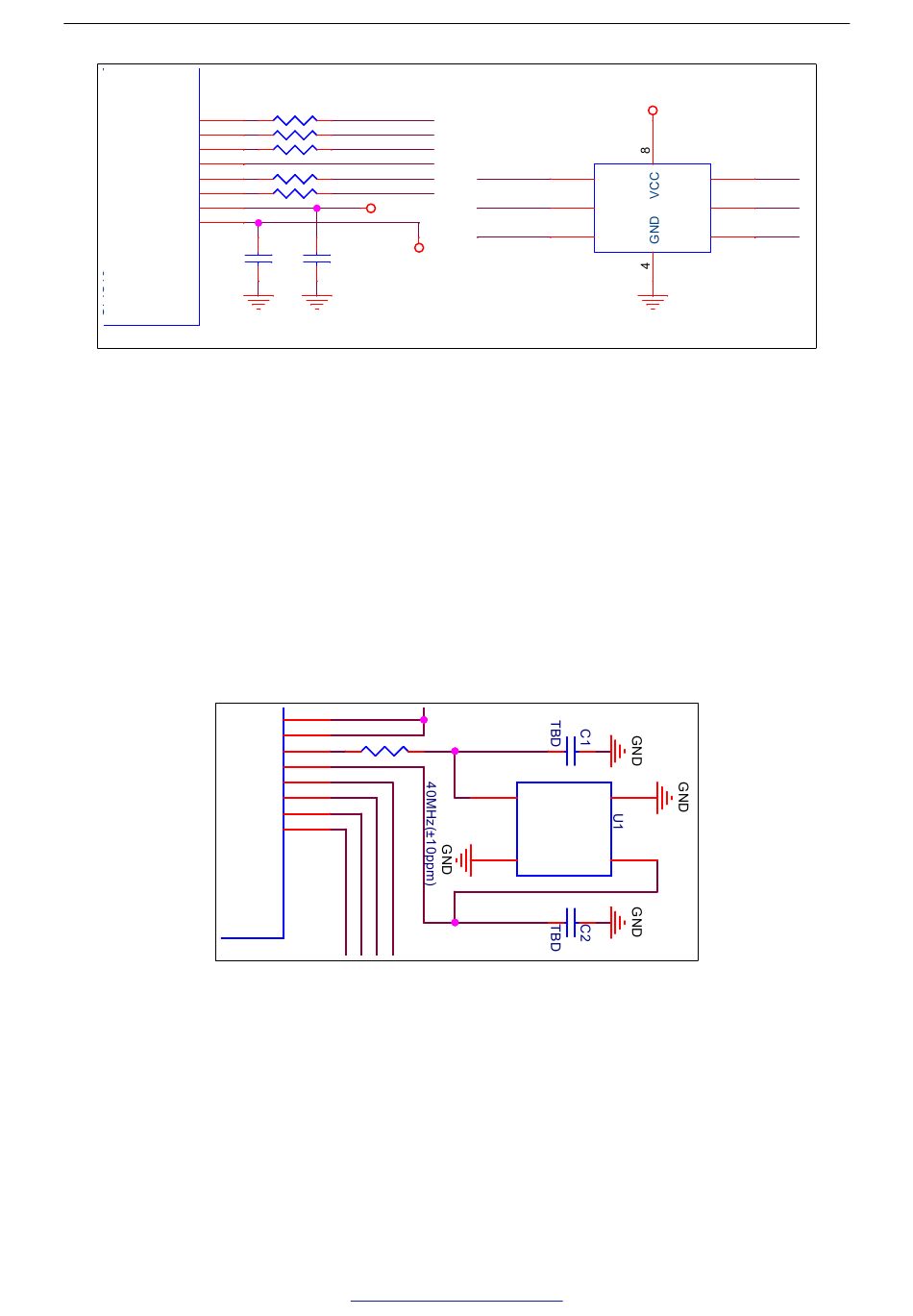

Figure 5: ESP32­C3 Family Flash Circuit
