2 Schematic Checklist

2.1 Power Supply

For details of using power supply pins, please refer to Section Power Scheme in
ESP32-C3 Family

2.1.1 Digital Power Supply

Pin 11 and pin 17 are the power supply pins for RTC IO and CPU IO respectively, in a voltage range of 3.0 V
GND
3.6 V. We recommend adding 0.1 µF capacitors close to each digital power supply pin.
When working as an output power supply pin, VDD_SPI can be powered by VDD3P3_CPU via R
V). Therefore, there will be a voltage drop on VDD_SPI to VDD3P3_CPU. We recommend adding a 1 µF filter
capacitor between VDD_SPI and ground.
When not working as a power supply pin, VDD_SPI can be used as GPIO11.
1
LNA_IN
2
VDD3P3
3
VDD3P3
4
XTAL_32K_P
5
XTAL_32K_N
6
GPIO2
7
CHIP_EN
8
GPIO3
U2
Notice:
When VDD_SPI works as the power supply pin for embedded and external 3.3 V flash, VDD3P3_CPU should
be 3.0 V or above, so as to fall into flash's operating voltage range.

2.1.2 Analog Power Supply

Pin 2, pin 3, pin 31, and pin 32 are the analog power supply pins, working at 3.0 V
ESP32-C3 family works in transmission (TX) mode, the instantaneous current is higher and may cause a power
rail collapse. Therefore, it is highly recommended to add a 10 µF capacitor to the power trace, which can work in
conjunction with the 0.1 µF capacitor. In addition, a LC filter circuit needs to be added near pin 2 and pin 3 to
suppress high-frequency harmonics. The inductor's rated current is preferably 500 mA or above. Refer to Figure
4
3 and place the appropriate decoupling capacitor near each analog power pin.
Espressif Systems
TBD
GND
40MHz(±10ppm)
Datasheet.
VDD_SPI
VDD3P3_CPU
ESP32-C3

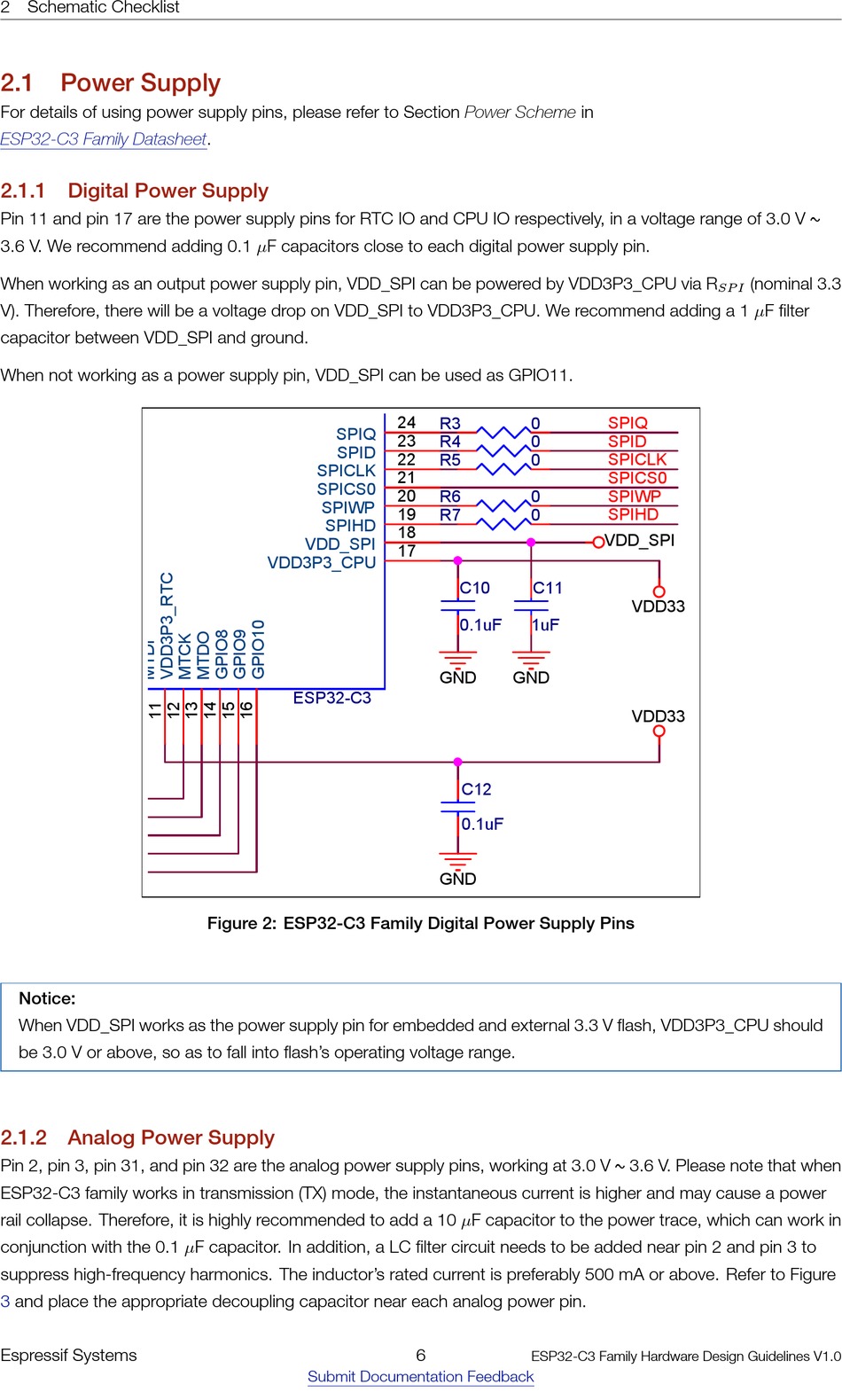

Figure 2: ESP32­C3 Family Digital Power Supply Pins
Submit Documentation Feedback
TBD
R2
24
R3
SPIQ
23
R4
SPID
22 R5
SPICLK
21
SPICS0
20
R6
SPIWP
19
R7
SPIHD
18
17
C10
0.1uF
GND
C12
0.1uF
GND
3
6
499 U0TXD
U0RXD
GPIO19
GPIO18
0 SPIQ
SPID
0
0 SPICLK
SPICS0
0 SPIWP
0 SPIHD
VDD_SPI
C11
VDD33
1uF
GND
VDD33
~ 3.6 V. Please note that when
ESP32-C3 Family Hardware Design Guidelines V1.0
~
(nominal 3.3
SP I
R8
10K
1
SPICS0
/CS
SPICLK 6
CLK
SPIHD 7
/HOLD
U3
2
VDD
G
