Installation and Operating Instruction for B.E.G. - Occupancy detector PD4-M-1C-SM/ FC / FM

1. Mounting preparation

Work on the 230 V mains supply
may only be carried out by quali-
fied professionals or by instructed
persons under the direction and
supervision of qualified skilled elec-
trical personnel in accordance with
electredechnical regulations.
Disconnect supply before installing!
The device is not suited for safe
disconnection of the mains supply.
When in Master / Slave mode of
operation, the Master-appliance
must always be installed at the
location where there is least
daylight.

3a. Hardware configuration SM

Position LED's
Potentiometer 1 Lux
Potentiometer 2 Time
1 2
40
LED 1 green
LED 2 red
LED 3 white

4a. Position DIP-switches SM

1
40
OFF
Surface VA
LED
mounting
DIP 1 Fully automatic/semi automatic mode
DIP 2 LED ON/OFF
DIP 3 Change between corridor mode and standard
mode
The DIP switch settings are using the remote control.
overriden

5. DIP switch functions

DIP- ON
switch
1 Semi automatic mode
2 LED OFF
3 Corridor mode
®

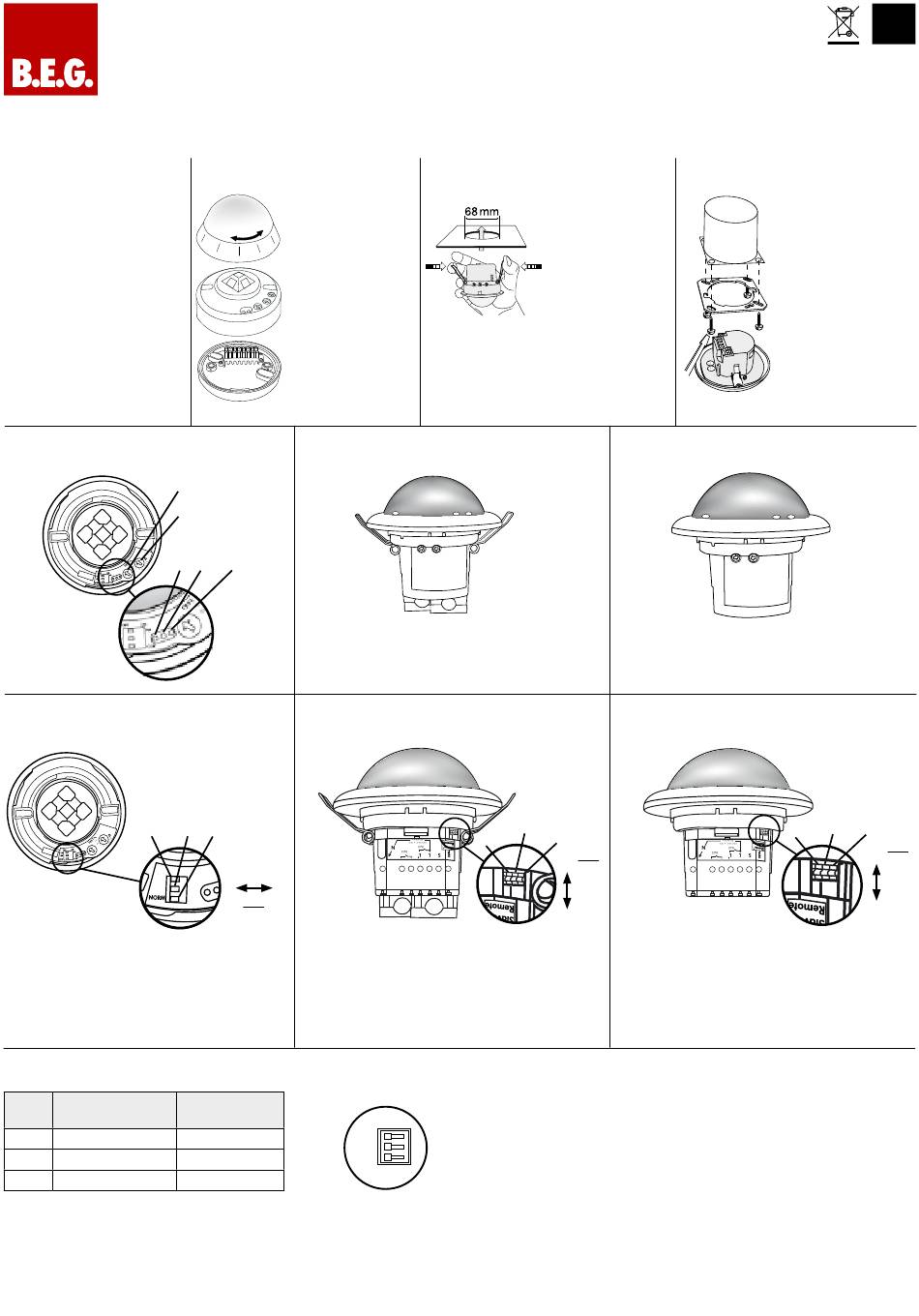

2a. Installation of the LUXOMAT
PD4-M-1C-SM
The detector must be
installed on a solid and level
surface. The circular cover
close
open
ring must be removed prior
to assembly. To do this,
twist the lens anticlockwise
through approximately 5°
and lift off.
Having connected up the
wires in accordance with
regulations, secure the
detector with 2 screws. After
installation replace the lens
and lock (turn clockwise).
Mains to be connected.

3b. Hardware configuration FC

Position LED's and potentiometers
3
LED 1 green
LED 2 white
LED 3 red
4b. Position DIP-switches
2 3
ON
OFF ON
HA
DIP
COR
DIP 1
DIP 2
DIP 3
The DIP switch settings are
OFF
Fully automatic mode
DIP
LED ON
Standard mode
PD4-M-1C

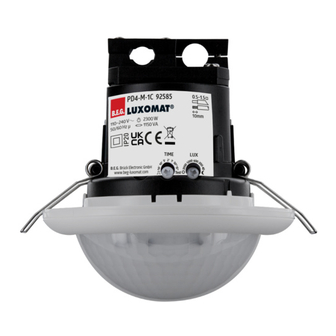

® 2b. Installation of the LUXOMAT
PD4-M-1C-FC
Having connected up the cables in accordance
with regulations, the detector is inserted into
the opening as shown in the drawing opposite
and fixed into position with the assistance of the
spring clip.
1
2 3
1 2
Potentiometer 1 Lux
Potentiometer 2 Time
2
1
false ceiling
mounting
Fully automatic/semi automatic mode
LED ON/OFF
Change between corridor mode and standard mode
using the remote control.
overriden
Corridor function:
button, the detector switches off and returns to automatic
mode after 5 sec.
ON
OFF
1
2
3
The DIP settings are enabled again by:
• Adjusting the DIP switches when closed
• Reset with test sun setting at the potentiometers
• Reset when open
® 2c. Installation of the LUXOMAT
PD4-M-1C-FM
The detector has been
designed and developed
specifically for installation
in suspended ceilings.
A circular opening of
diameter 68 mm must first
of all be produced in the
ceiling.

3c. Hardware configuration FM

Position LED's and potentiometers
1
LED 1 geen
LED 2 white
LED 3 red

4c. Position DIP-switches FM

3
DIP
OFF
Flush mounting
ON
DIP 1 Fully automatic/semi automatic mode
DIP 2 LED ON/OFF
DIP 3 Change between corridor mode and standard mode
The DIP switch settings are overriden using the remote control.
After deactivation by an external push
GB
®
The detector can be installed
in conventional inlet-sockets
mounted on the ceiling.
The assembly plate enclosed
must be stripped off prior
to installation and secured
to the ceiling using 2 or 4
screws and ensuring that it is
not laterally transposed.
( For connections please see
pt. 21!)
2 3
1 2
Potentiometer 1 Lux
Potentiometer 2 Time
1 2 3
DIP
OFF
ON
