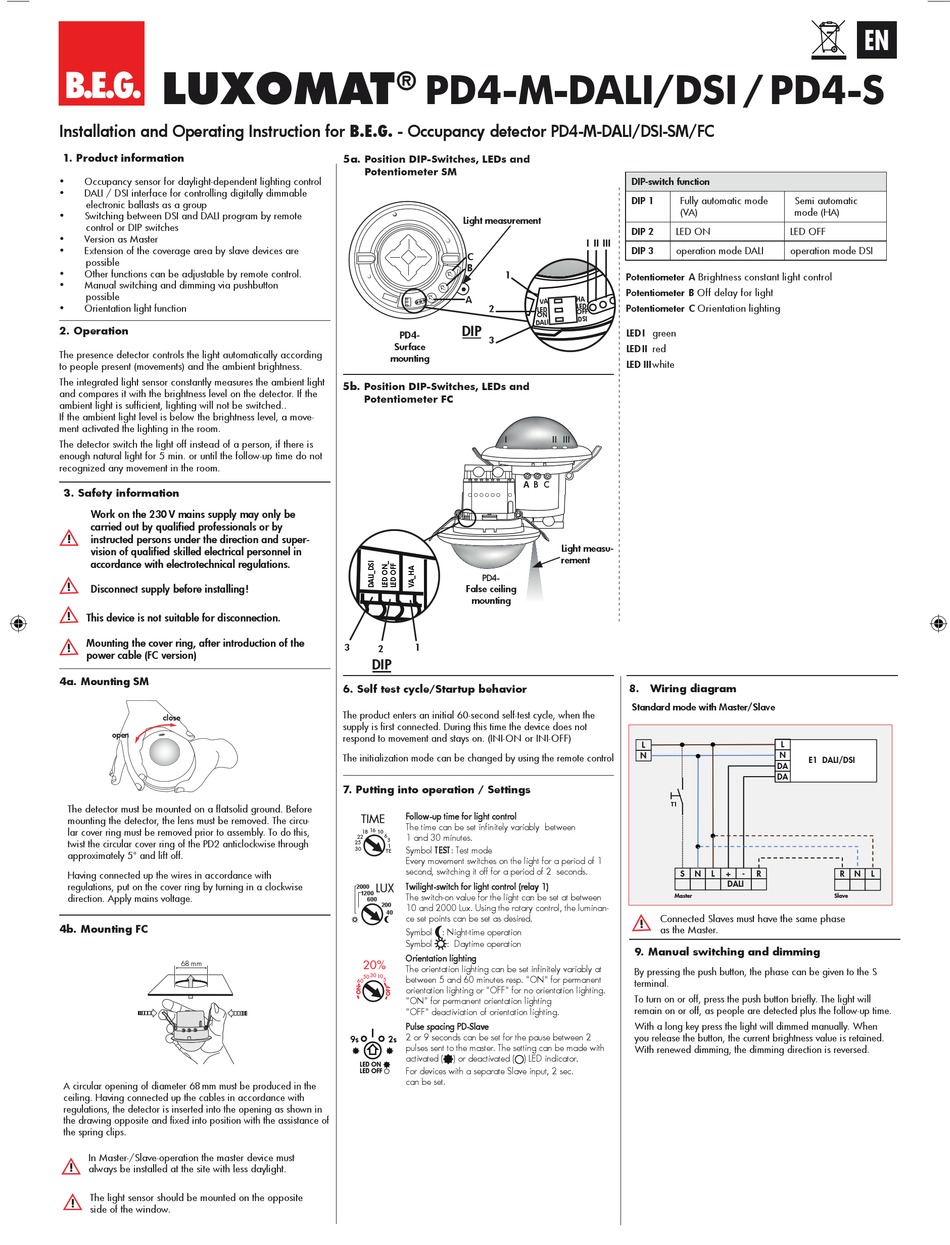

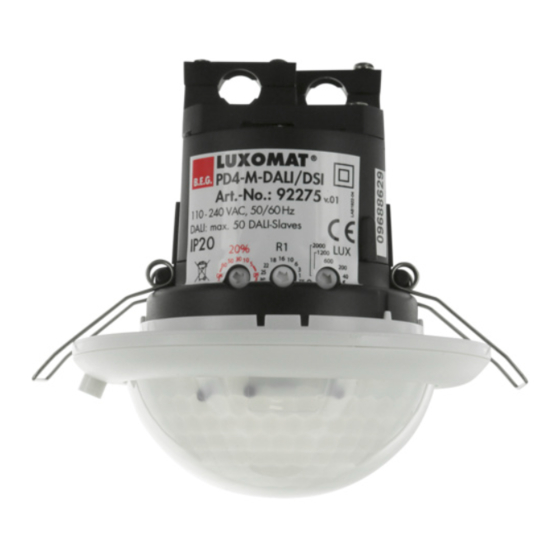

Installation and Operating Instruction for B.E.G. - Occupancy detector PD4-M-DALI/DSI-SM/FC

1. Product information

• Occupancy sensor for daylight-dependent lighting control
• DALI / DSI interface for controlling digitally dimmable
electronic ballasts as a group
• Switching between DSI and DALI program by remote
control or DIP switches
• Version as Master
• Extension of the coverage area by slave devices are
possible
• Other functions can be adjustable by remote control.
• Manual switching and dimming via pushbutton
possible
• Orientation light function

2. Operation

The presence detector controls the light automatically according
to people present (movements) and the ambient brightness.
The integrated light sensor constantly measures the ambient light
and compares it with the brightness level on the detector. If the
ambient light is sufficient, lighting will not be switched..
If the ambient light level is below the brightness level, a move-
ment activated the lighting in the room.
The detector switch the light off instead of a person, if there is
enough natural light for 5 min. or until the follow-up time do not
recognized any movement in the room.

3. Safety information

Work on the 230 V mains supply may only be
carried out by qualified professionals or by
instructed persons under the direction and super-
!
vision of qualified skilled electrical personnel in
accordance with electrotechnical regulations.
Disconnect supply before installing!
This device is not suitable for disconnection.
Mounting the cover ring, after introduction of the
power cable (FC version)

4a. Mounting SM

close
open
The detector must be mounted on a flatsolid ground. Before
mounting the detector, the lens must be removed. The circu-
lar cover ring must be removed prior to assembly. To do this,
twist the circular cover ring of the PD2 anticlockwise through
approximately 5° and lift off.
Having connected up the wires in accordance with
regulations, put on the cover ring by turning in a clockwise
direction. Apply mains voltage.

4b. Mounting FC

68 mm
A circular opening of diameter 68 mm must be produced in the
ceiling. Having connected up the cables in accor dance with
regulations, the detector is inserted into the opening as shown in
the drawing opposite and fixed into position with the assistance of
the spring clips.
In Master-/Slave-operation the master device must
!
always be installed at the site with less daylight.
The light sensor should be mounted on the opposite
!
side of the window.
PD4-M-DALI/DSI / PD4-S
®
5a. Position DIP-Switches, LEDs and
Potentiometer SM
Light measurement
C
B
1
A
2
DIP
PD4-
3
Surface
mounting
5b. Position DIP-Switches, LEDs and
Potentiometer FC
I
PD4-
False ceiling
mounting
3 1
2
DIP

6. Self test cycle/Startup behavior

The product enters an initial 60-second self-test cycle, when the
supply is first connected. During this time the device does not
respond to movement and stays on. (INI-ON or INI-OFF)
The initialization mode can be changed by using the remote control

7. Putting into operation / Settings

TIME
TIME
18 16
10
6
22 18 16 Follow-up time for light control
TIME
10
3
25 6
22
1
3
The time can be set infinitely variably between
30
25
TE
1
18 16
10
30
TE
6 1 and 30 minutes.
22
3
25
1
Symbol TEST: Test mode
30
TE
Every movement switches on the light for a period of 1
second, switching it off for a period of 2 seconds.
LUX Twilight-switch for light control (relay 1)
2000
LUX
1200
2000
The switch-on value for the light can be set at between
1200 600
200
10 and 2000 Lux. Using the rotary control, the luminan-
600
LUX
2000
200 40
1200 ce set points can be set as desired.
40
600
200
Symbol : Night-time operation
40
Symbol : Daytime operation
20%
Orientation lighting
20%
The orientation lighting can be set infinitely variably at
50 30
10
5
60
50 30
20% 10 between 5 and 60 minutes resp. "ON" for permanent
5
60
orientation lighting or "OFF" for no orientation lighting.
50 30
10
5
60
"ON" for permanent orientation lighting
"OFF" deactiviation of orientation lighting.
Pulse spacing PD-Slave
2 or 9 seconds can be set for the pause between 2
9s 2s
9s 2s
pulses sent to the master. The setting can be made with
9s 2s
activated ( ) or deactivated ( ) LED indicator.
LED ON
9s 2s
LED ON
For devices with a separate Slave input, 2 sec.
LED OFF
LED ON
LED OFF
can be set.
LED OFF
LED ON
LED OFF
DIP-switch function
DIP 1 Fully automatic mode
(VA)
DIP 2 LED ON
I II III
DIP 3 operation mode DALI
Potentiometer A Brightness constant light control
Potentiometer B Off delay for light
Potentiometer C Orientation lighting
LED I green
LED II red
LED III white
II III
A B C
L
N
Light measu-
rement
T1
S
Master

8. Wiring diagram

Standard mode with Master/Slave
L
N
T1
S
Master
Connected Slaves must have the same phase
as the Master.

9. Manual switching and dimming

By pressing the push button, the phase can be given to the S
terminal.
To turn on or off, press the push button briefly. The light will
remain on or off, as people are detected plus the follow-up time.
With a long key press the light will dimmed manually. When
you release the button, the current brightness value is retained.
With renewed dimming, the dimming direction is reversed.
Semi automatic
mode (HA)
LED OFF
operation mode DSI
L
N
E1 DALI/DSI
DA
DA
N L + - R
R N
DALI
Slave
L
N
E1 DALI/DSI
DA
DA
N L + - R R N
DALI
Slave
EN
