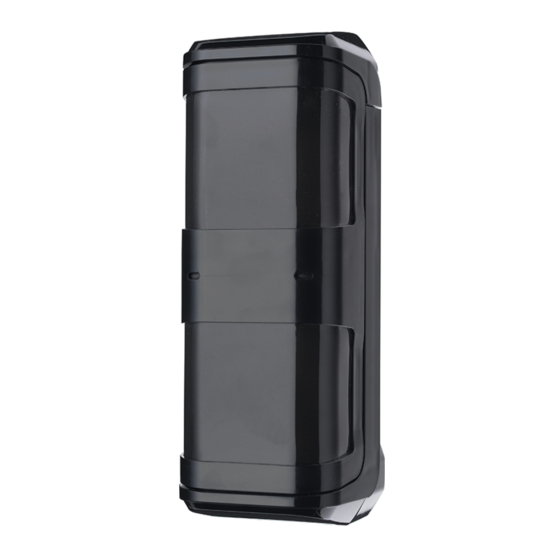

- Page 1 Installation Manual Premier External TD INS352-5...
-
Page 2: Accessing The Unit
Accessing the Unit Remove the top cap and loosen screw Push up head unit and remove. (screw retained in wall plate). Use a flat head screwdriver to lever out both sides of the terminal cover as shown. INS352-5... -
Page 3: Choosing A Location
Choosing a Location • Mounting height 1.0 - 1.4m (nominal 1.2m), measured to middle of unit. • Mount perpendicular to ground. ✓ Parallel 1.0 - 1.4m • Try to avoid direct sunlight. ✗ • Avoid pointing at swaying bushes/trees and swaying clothes on a clothes line. -
Page 4: Mounting The Unit
Mounting the Unit Front View WALL MOUNTING For wall mounting, the cable should be brought through the wall into the cable entry hole. Cable Entry REAR TAMPER To enable the rear tamper, the breakaway keyhole section must be securely fixed to the mounting surface. Rear View SURFACE WIRING For surface wiring, use the appropriate knockout in the... -
Page 5: Pole Mounting
Pole Mount Bracket Mounting POLE MOUNTING Using the pole mount kit (available separately) the unit can be mounted on poles with an outside diameter of 20 - 57mm. Assemble the kit around the pole as shown and tighten the 4 bolts. Hook the detector wall plate onto the kit and secure the remaining 2 bolts through the lower mounting holes. - Page 6 Wiring the Unit TERMINAL BLOCK 9-16 V 12V & 0V: NO/NC (selectable) relay output. ALARM: 18 Ω, 50V , 100mA Max. NC Relay output. TAMPER: 18 Ω, 50V , 100mA Max. RLED: 0V: LED off. 12V or No Connection: LED on. AUX: NC relay input.
- Page 7 JP4: LED JP5: MODE Day/Night Mode Night Mode Detector is always operating. Detector only operates at night. JP6 & JP7: END OF LINE JUMPERS Selects the End-of-Line Selects the resistance across the alarm resistance. Equivalent relay. Equivalent to wiring a resistor of the to wiring a resistor of selected value as shown.
- Page 8 Range Adjustment - PIR Bottom of head unit To adjust the range of the detector, rotate the circular section shown until the desired range is shown in the window. Note: Range can vary due to environmental conditions. To reduce the risk of false alarms always select the lowest range possible for the installation.
-
Page 9: Coverage Area
Coverage Area Bottom of head unit Bottom of head unit Top View Top View Active Active detection detection coverage coverage 45˚ 90˚ 90˚ 45˚ 90˚ Walk-testing With the range, sensitivity, coverage and pulse count set as desired, enable the LEDs and walk-through the area of protection. -
Page 10: Auxiliary Input
Security grade: EN Grade 2 Environmental class: Class IV Disclaimer: The Premier External TD is not a complete alarm system, but only its part. Therefore Texecom does not accept any responsibility or liability for any damage that is claimed to be a The Premier External detector is protected result of an incorrect functioning of the Premier External TD detector. -
Page 11: Physical Specifications
Specifications 1.0 - 1.4m, 1.2m nominal Mounting Height: 9-16 V Supply Voltage: Current Drain (typical): 28mA Detection Method: Dual, non-overlapping, digital PIR Range: 12m max. Adjustable to 8m, 5m and 2m Alarm Output: NC/NO selectable relay. Rated 50V , 100mA, 18Ω Tamper Detection: Wall and case. - Page 12 Texecom Limited, Bradwood Court, St. Crispin Way, Haslingden, Lancashire BB4 4PW, England. Technical Support: UK Customers Tel: 08456 300 600 (Calls charged at 3.36 pence per minute from a BT landline. Calls from other networks may vary.) International Customers Tel: +44 1278 686197 Email: techsupport@texe.com...
