Renesas ZMOD4510AI1V User Manual

Description
The ZMOD4510 Evaluation Kit (EVK) is designed for evaluating
Renesas' ZMOD4510 Gas Sensor Module for Total Outdoor Air
Quality (OAQ 1 Generation) or selective ozone measurements
st
(OAQ 2 Generation). The device is ideal for monitoring and
nd
reporting Outdoor Air Quality according to the standard of the US
Environmental Protection Agency (EPA). The Air Quality Index
(AQI) output is based on a combination of outdoor gases present,
including nitrogen oxides (NO
Renesas' Gas Sensor Evaluation Software allows Windows
based operating systems to communicate with the ZMOD4510
EVK via a USB connection on the user's computer, which functions
as a master. The software and additional related documentation is
available on the Renesas website.
The EVK's Communication Board (HiCom) handles the interface
between the user's computer and the ZMOD4510 module mounted
on the ZMOD4510 Sensor Board (i.e., daughter board). Note: Only
one Communication Board with one Sensor Board can be
connected to the computer at a time.
The ZMOD4510 Evaluation Kit uses an FTDI controller on the
Communication Board to handle the USB protocol, translate
communications, and synchronize communications with the I2C
interface. The Sensor Board includes a decoupling capacitor.
The Communication Board has devices mounted on both sides.
The components on the top side generate a stable supply voltage.
A potentiometer can be used to adjust the internal supply voltage
in the typical range from 1.7V to 3.6V. Alternatively, the user's
external supply voltage can be used. The intensity of the adjacent
LED is proportional to the supply voltage.
ZMOD4510-EVK Contents
 HiCom Communication Board

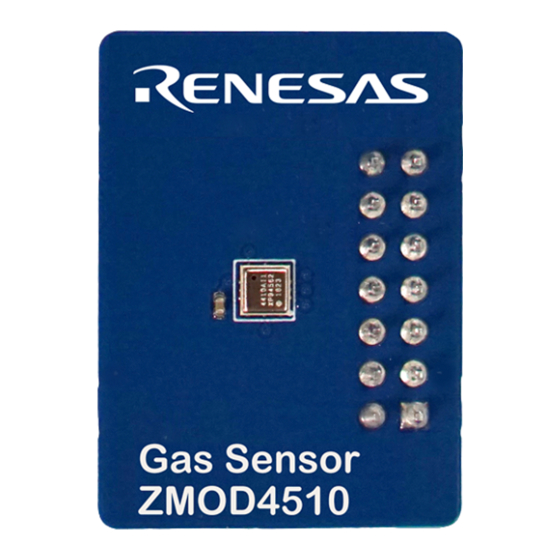

 Sensor Board with ZMOD4510 Gas Sensor Module
 3.0m Type-B USB to Micro-USB Cable
AirNow, United States Environmental Protection Agency, Office of Air Quality Planning and Standards (OAQPS), 2019.
a
© 2021 Renesas Electronics Corporation
) and/or ozone (O ) .
a
x 3
ZMOD4510 Evaluation Kit User Manual
Features
 User-friendly EVK expedites configuration and evaluation of
the ZMOD4510 Outdoor Air Quality (OAQ) Sensor
 Supports different methods of operation, including Total
Outdoor Air Quality (1
technology for selective ozone measurements (2
 Operates with Renesas provided software; either with
executable ZMOD4510 GUI or alternatively with firmware
programming examples for Windows
-
®
 The modular design of the EVK allows simple connection of
Sensor Boards for different gas sensor derivatives and easy
integration with other sensor products via the I2C interface.
 The required Gas Sensor Evaluation Software is available for
free download on the Renesas website, which also provides
background information on outdoor air quality and how to use
the sensor firmware
 Additional pins provided to measure power consumption and
supply voltage
 The bill of materials (BOM) and schematics for the
ZMOD4510 Communication Board and Sensor Board are
included in this document.
ZMOD4510 Evaluation Kit
USB Cable to Computer
1
Gen) and Ultra-Low Power with AI
st
nd
and Linux
® ®
HiCom Communication Board
ZMOD4510
May 13, 2021
Gen)
ZMOD4510
Sensor Board
