ZL2005PEVK4
10A Evaluation Board

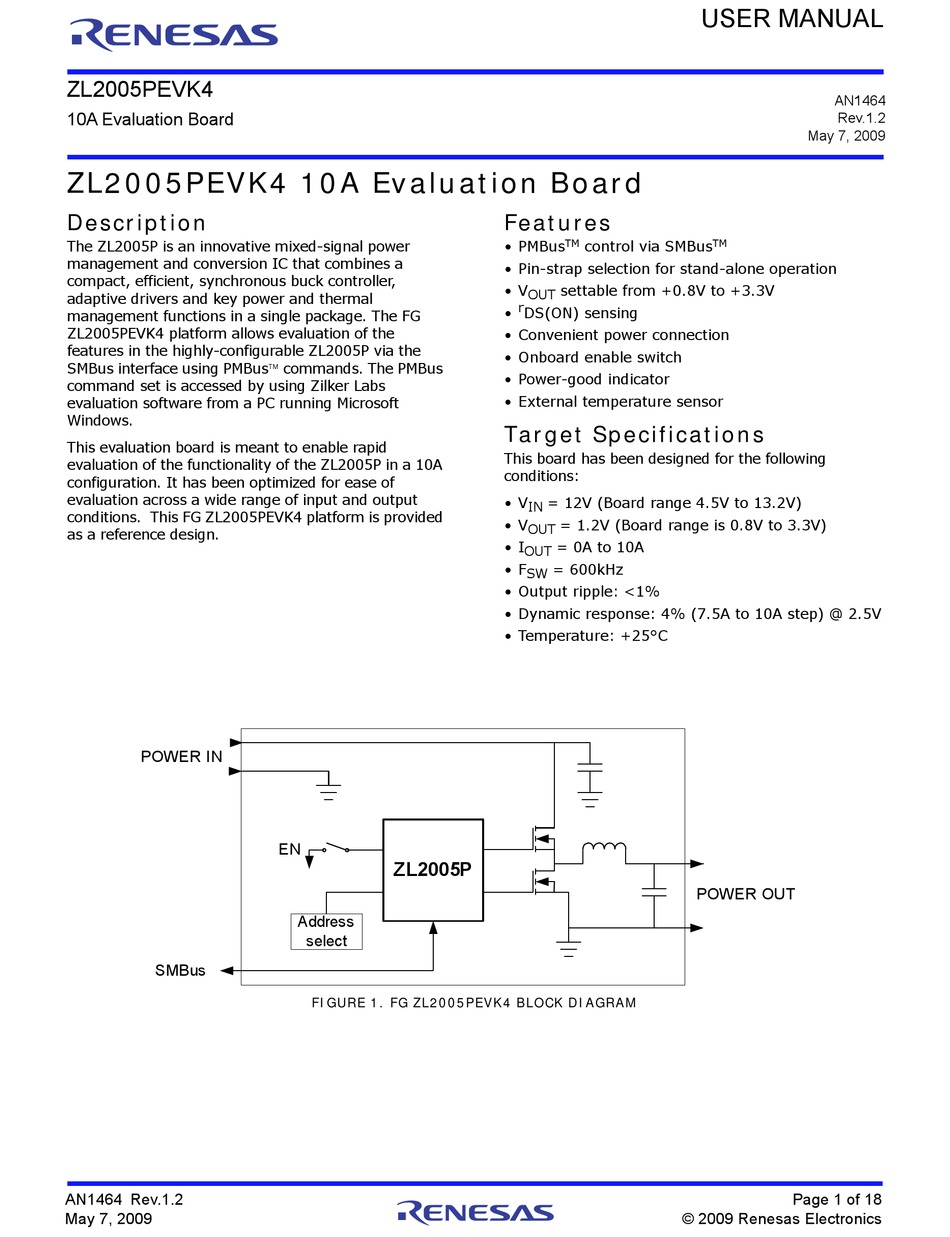

ZL2005PEVK4 10A Evaluation Board
Description
The ZL2005P is an innovative mixed-signal power
management and conversion IC that combines a
compact, efficient, synchronous buck controller,
adaptive drivers and key power and thermal
management functions in a single package. The FG
ZL2005PEVK4 platform allows evaluation of the
features in the highly-configurable ZL2005P via the
SMBus interface using PMBus commands. The PMBus
command set is accessed by using Zilker Labs
evaluation software from a PC running Microsoft
Windows.
This evaluation board is meant to enable rapid
evaluation of the functionality of the ZL2005P in a 10A
configuration. It has been optimized for ease of
evaluation across a wide range of input and output
conditions. This FG ZL2005PEVK4 platform is provided
as a reference design.
POWER IN
SMBus
AN1464 Rev.1.2
May 7, 2009
EN
ZL2005P
Address
select
FIGURE 1. FG ZL2005PEVK4 BLOCK DIAGRAM
Features
• PMBus
TM
control via SMBus
• Pin-strap selection for stand-alone operation
• V
settable from +0.8V to +3.3V
OUT
r
DS(ON) sensing
• Convenient power connection
• Onboard enable switch
• Power-good indicator
• External temperature sensor
Target Specifications
This board has been designed for the following
conditions:
• V
= 12V (Board range 4.5V to 13.2V)
IN
• V
= 1.2V (Board range is 0.8V to 3.3V)
OUT
• I
= 0A to 10A
OUT
• F
= 600kHz
SW
• Output ripple: <1%
• Dynamic response: 4% (7.5A to 10A step) @ 2.5V
• Temperature: +25°C
© 2009 Renesas Electronics
USER MANUAL
AN1464
Rev.1.2
May 7, 2009
TM
POWER OUT
Page 1 of 18

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZL2005PEVK4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Renesas ZL2005PEVK4

  • Page 1 It has been optimized for ease of evaluation across a wide range of input and output • V = 12V (Board range 4.5V to 13.2V) conditions. This FG ZL2005PEVK4 platform is provided • V = 1.2V (Board range is 0.8V to 3.3V) as a reference design.
  • Page 2 Stand-Alone Operation demonstrate the features of the ZL2005P in a 10A The FG ZL2005PEVK4 is easy to setup and operate. It is configuration. The FG ZL2005PEVK4 has a configured, out of the box, to provide 1.2V at 10A from a functionally-optimized layout that allows highly-efficient 12V source.
  • Page 3 • Test the ZL2005P operation. Connect input Connect load voltage here here Connect SMBus Connect other controller here eval boards here PG LED EN Switch Address select FIGURE 2. FG ZL2005PEVK4 EVALUATION BOARD AN1464 Rev.1.2 Page 3 of 18 May 7, 2009...
  • Page 4 CON2_Banana BSZ035 SALRT SALRT ISENB 47uF 47uF 47uF 47uF 47uF 6.3V 6.3V 6.3V 6.3V 6.3V 4.7uF 0.1uF VTRK VSENSE 16.2k 34.8k GND_SIGNAL GND_SIGNAL SMBus Address VOUT max set set by J12 to 3.3V (page 2) FIGURE 3. FG ZL2005PEVK4 CIRCUIT...
  • Page 5 The ref erenc e designs c ontained in t his doc ument are f or ref erenc e and ex am ple purpos e only . AUSTIN, TEX AS 78746 TH E REF EREN CE D ESI GN S AR E PR OVID ED "AS I S" AN D "W ITH ALL FAU LTS" AND Z ILKER FIGURE 4. FG ZL2005PEVK4 INTERFACE...
  • Page 6 ZL2005PEVK4 USER MANUAL Board Layout FIGURE 5. FG ZL2005PEVK4 SILK SCREEN TOP AN1464 Rev.1.2 Page 6 of 18 May 7, 2009...
  • Page 7 ZL2005PEVK4 USER MANUAL Board Layout (Continued) FIGURE 6. FG ZL2005PEVK4 PCB TOP LAYER AN1464 Rev.1.2 Page 7 of 18 May 7, 2009...
  • Page 8 ZL2005PEVK4 USER MANUAL Board Layout (Continued) FIGURE 7. FG ZL2005PEVK4 PCB INNER LAYER 1 AN1464 Rev.1.2 Page 8 of 18 May 7, 2009...
  • Page 9 ZL2005PEVK4 USER MANUAL Board Layout (Continued) FIGURE 8. FG ZL2005PEVK4 PCB INNER LAYER 2 AN1464 Rev.1.2 Page 9 of 18 May 7, 2009...
  • Page 10 ZL2005PEVK4 USER MANUAL Board Layout (Continued) FIGURE 9. FG ZL2005PEVK4 BOTTOM LAYER (TOP VIEW) AN1464 Rev.1.2 Page 10 of 18 May 7, 2009...
  • Page 11 ZL2005PEVK4 USER MANUAL Board Layout (Continued) FIGURE 10. FG ZL2005PEVK4 SILK SCREEN BOTTOM (TOP VIEW - REVERSED) AN1464 Rev.1.2 Page 11 of 18 May 7, 2009...
  • Page 12 Bill of Materials TABLE 1. FG ZL2005PEVK4 REV. 2 ITEM QTY REFERENCE VALUE TOLERANCE RATING TYPE PCB FOOTPRINT MANUFACTURER PART NUMBER C1, C2, C67, C68 22µF SM1210 MURATA GRM32ER61C226KE20L C3,C4 4.7µF 6.3V SM0603 Panasonic - ECG ECJ-1VB0J475M 1µF SM0603 TAIYO YUDEN...
  • Page 13 Bill of Materials (Continued) TABLE 1. FG ZL2005PEVK4 REV. 2 ITEM QTY REFERENCE VALUE TOLERANCE RATING TYPE PCB FOOTPRINT MANUFACTURER PART NUMBER 21.5k SM0402 VISHAY CRCW040221K5FKED 23.7k SM0402 VISHAY CRCW040223K7FKED 26.1k SM0402 VENKEL CR0402-16W-2612FT 28.7k SM0402 VISHAY CRCW040228K7FKED SW_SPDT SW_TOG_ULTRAMIN_...
  • Page 14 ZL2005PEVK4 USER MANUAL ZL2005P Characterization Data The following data was acquired using a FG ZL2005PEVK4 Rev. 2 Evaluation Board. Test 1: Efficiency Efficiency data was collected for several output voltages for input voltages of 5V and 12V. Note that this data is for informational use only, as the board is optimized for 12V input and 1.2V output operation.
  • Page 15 ZL2005P Characterization Data (Continued) The following data was acquired using a FG ZL2005PEVK4 Rev. 2 Evaluation Board. Test 2: Ramp-Up/Ramp-Down Characteristics Ramp-up and ramp-down data was acquired based on a nominal output voltage of 1.5V and a preset ramp-up and ramp-down period of 10ms.
  • Page 16 ZL2005P Characterization Data (Continued) The following data was acquired using a FG ZL2005PEVK4 Rev. 2 Evaluation Board. Test 3: Dynamic Load Response For the dynamic load response test, the circuit was set to a nominal output voltage of 2.5V and an input voltage of 6V.
  • Page 17 Each PMBus can be accessed with the Zilker Labs Evaluation software. The # symbol is used for a STORE_DEFAULT_ALL comment line. RESTORE_DEFAULT_ALL # Configuration file for FG ZL2005PEVK4, Rev 2 #syntax: #PMBus Command <tab> Value #Erase default and user store RESTORE_FACTORY...
  • Page 18 ZL2005PEVK4 USER MANUAL References AN10 – ZL2005 Thermal and Layout Guidlelines for the ZL2005, Zilker Labs Inc., 2007.  AN13 – ZL2005 and PMBus , Zilker Labs, Inc., 2007. [3] ZL2005 Data Sheet, Zilker Labs, Inc., 2007. Revision History DATE REV.
  • Page 19 Renesas' products are provided only subject to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources expands or otherwise alters any applicable warranties or warranty disclaimers for these products.
