ZL2102DEMO1Z
Demonstration Board
Description
The ZL2102DEMO1Z is an innovative power conversion and
management IC that combines an integrated synchronous
step-down DC/DC converter with key power and fault
management functions in small package, resulting in a flexible
and integrated solution. The ZL2102DEMO1Z platform allows
quick evaluation of the highly configurable ZL2102DEMO1Z's
performance and features in either stand-alone mode or via
the SMBus™ interface using Intersil's PowerNavigator GUI
software.
Specifications
This board has been configured and optimized for the following
operating conditions:
• V
= 12V
IN
• V
= 3.3V
OUT
• I
= 6A
MAX
• f
= 600kHz
SW
• Peak efficiency: >85% at 50% load
• Output ripple: <0.5% at 6A
• Dynamic response: 3.5%
(3A to 5A and 5A to 3A steps, di/dt = 2.5A/μs)
• Board temperature: +25°C
V
IN
ENABLE
ENABLE
SYNC
DDC
SMBus
AN1874 Rev 0.00
August 6, 2013
EN
SYNC
ZL2102
DDC
SMBus
SW1

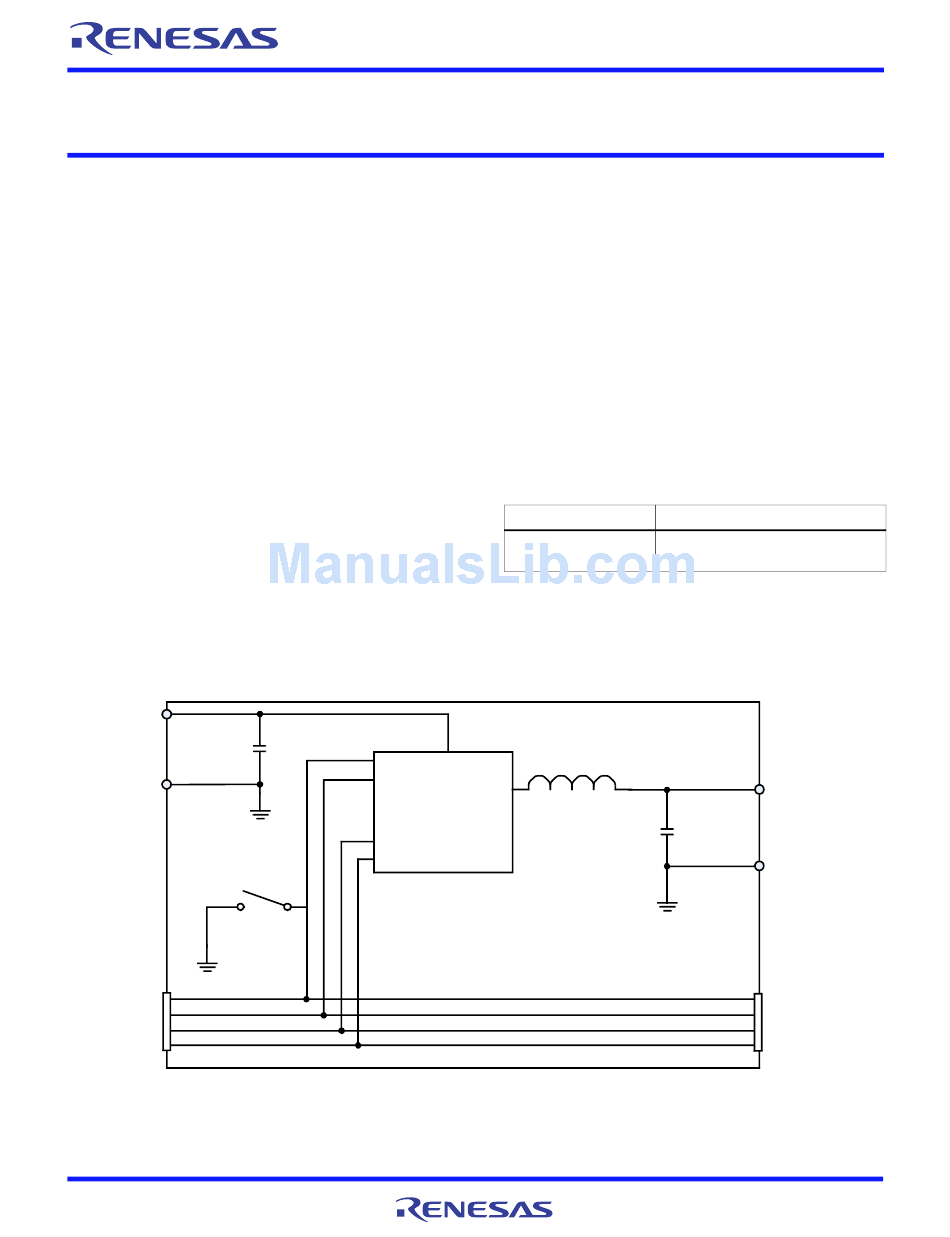

FIGURE 1. ZL2102DEMO1Z BLOCK DIAGRAM
USER'S MANUAL
Key Board Features
• Small, compact design
• SMBus™ control interface
• V
range of 7.5V to 14V
IN
• V
adjustable from 0.6 V to 3.6 V
OUT
• Convenient power connection
• Onboard enable switch
• Power-good indicator
• Interconnectivity with other intersil demo boards
References
FN8440
"ZL2102" Data Sheet.
Ordering Information
PART NUMBER
ZL2102DEMO1Z
ZL2102 Evaluation Kit, one channel
(EVB, USB Adapter, Cable, Software)
AN1874
Rev 0.00
August 6, 2013
DESCRIPTION
V
OUT
ENABLE
SYNC
DDC
SMBus
Page 1 of 12
