Renesas ZMOD4410 Manual

Environmental Sensors Evaluation Kit
This document describes the Environmental Sensors
Evaluation Kit (ES-EVK) for the following sensors:
ZMOD4410 for TVOC and IAQ
■
RRH46410 for TVOC and IAQ
■
ZMOD4510 for O , NO
■
3
HS3001 and HS4001 for RHT
■
RRH62000 for PM, TVOC and RHT
■
All sensors share the same evaluation kit platform in
hardware and software.
The Environmental Sensors Evaluation Software
allows Windows ® -based operating systems to
communicate with the EVK's microcontroller via a
USB connection on the user's computer. The
software and additional related documentation are
available on each Renesas sensor web page.
The EVK's Communication Board (ESCom) handles
the interface between the user's computer and the
sensor modules mounted on the sensor boards
("daughter boards").
The evaluation kit uses an ARM
RA4M2 MCU on the communication board to handle
the USB protocol, translate communications, and
synchronize communications with the I
The sensor board includes necessary decoupling
capacitors; however, I 2
sensor boards are not assembled or mounted on the
ESCom communication board, but on the provided
Renesas sensor boards only.
Kit Content
Environmental Sensor Communication board
■
(ESCom)
Sensor board with either:
■
ZMOD4410 + HS4001
●
ZMOD4510 + HS3001
●
RRH46410 + HS4001
●
RRH62000
●
USB cable (Type-A to Type-C)
■
R36UH0011EU0100 Rev.1.00
Dec 17, 2023
and OAQ
2
® -based Renesas
2 C interface.
C pull-up resistors for the
Evaluation Kit Manual
Features
User-friendly EVK expedites configuration and
■
evaluation of the Renesas environmental sensors
for air quality, gasses, humidity, temperature and
particulate matter
Supports all methods of operation for each sensor,
■
including ultra-low power and AI technology for
accurate and consistent sensor outputs
Sensor-dependent algorithmic output and, if
■
applicable, referring to international standards
Operates with Renesas provided software; either
■
with executable Graphic User Interface (GUI) or
alternatively with programming examples
The modular design of the EVK allows simple
■
connection of PMOD boards for different
environmental sensor derivatives and easy
integration with other sensor products via the I
interface
The required Environmental Sensors Evaluation
■
Software (ES-Eval) is available for free download
on the Renesas website
Provides background information on air quality
●
sensing and how to use the sensor firmware
Additional pins to measure power consumption
■
and supply voltage

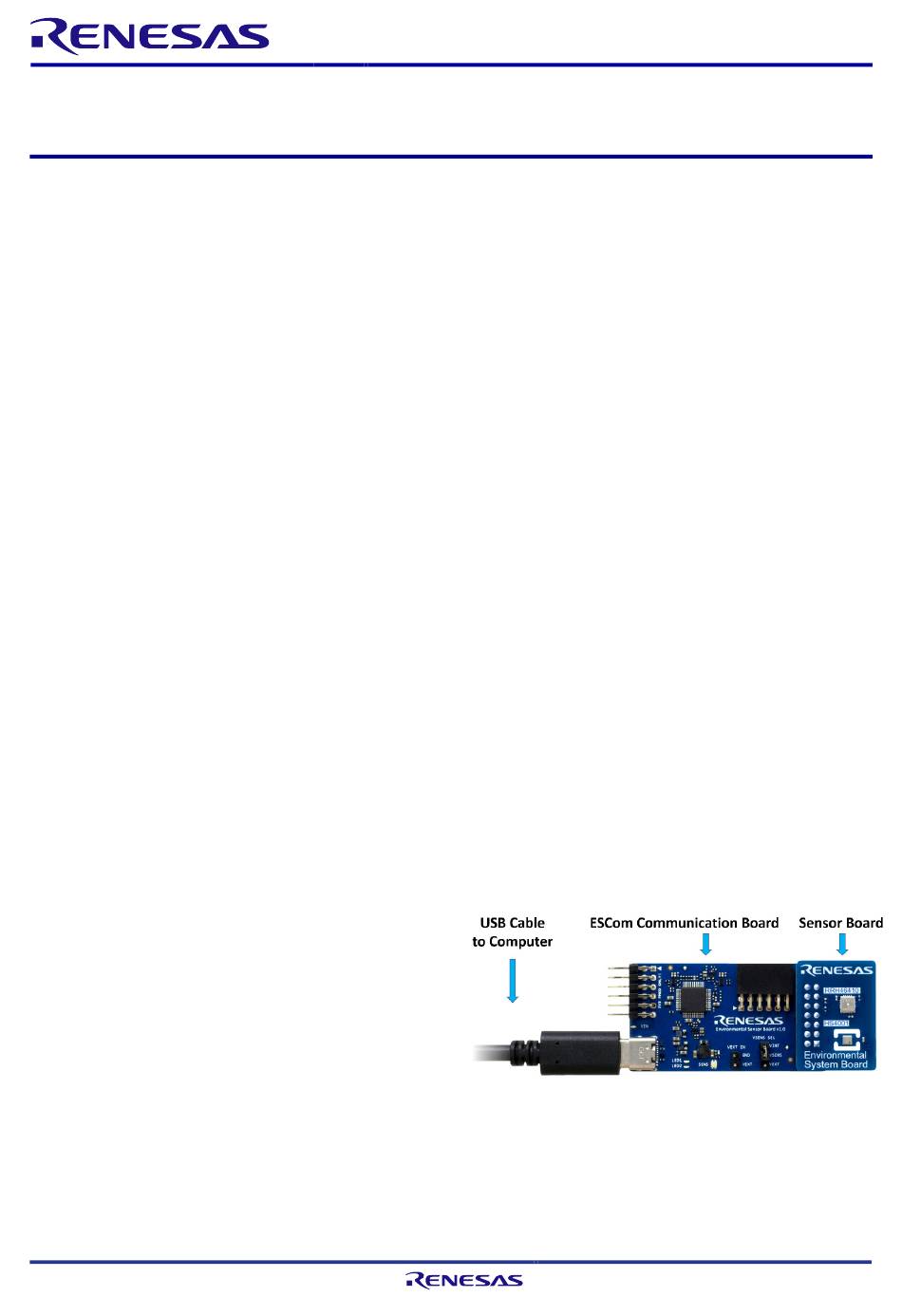

Evaluation Kit
Note: Product images in this document are
representations. Actual product configurations and
versions are subject to change.
Page 1
