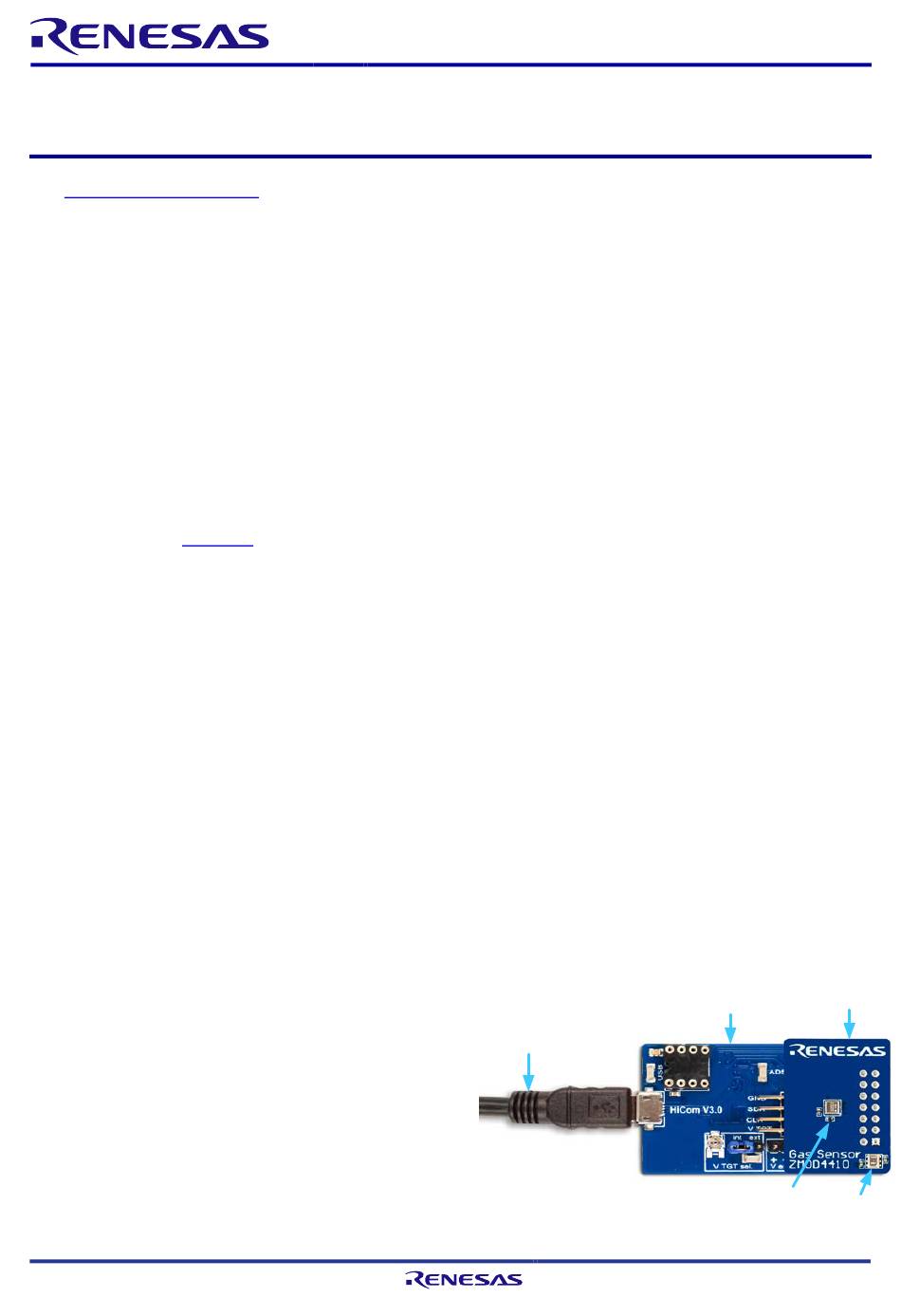

ZMOD4410
Evaluation Kit
The
ZMOD4410 Evaluation Kit
evaluating Renesas' ZMOD4410 Gas Sensor Module
for Indoor Air Quality. The total volatile organic
compounds (TVOC) measurement is one of the
indicators for indoor air quality (IAQ). In addition,
measurement modes are provided to measure the
Relative IAQ based on the air quality change, and to
discriminate sulfur odors.
Note: This document supports the waterproof and
non-waterproof ZMOD4410 EVKs.
The Gas Sensor Evaluation Software allows
®
Windows
-based operating systems to communicate
with the ZMOD4410 EVK via a USB connection on
the user's computer, which functions as a master.
The software and additional related documentation
are available on the
Renesas

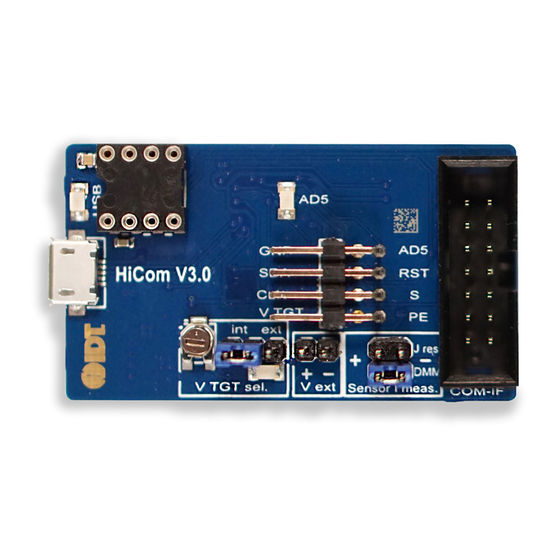

The EVK's Communication Board (HiCom) handles
the interface between the user's computer and the
ZMOD4410 module mounted on the ZMOD4410
Sensor Board ("daughter board").
Note: Only one Communication Board with one
Sensor Board can be connected to the computer at a
time.
The ZMOD4410 Evaluation Kit uses an FTDI
controller on the Communication Board to handle the
USB protocol, translate communications, and
synchronize communications with the I
The Sensor Board includes a decoupling capacitor;
2
however, I
C pull-up resistors are not assembled and
are mounted on the Communication Board.
The Communication Board has devices mounted on
both sides. The components on the top side generate
a stable supply voltage. A potentiometer can be used
to adjust the internal supply voltage in the typical
range from 1.8V to 3.6V. Alternatively, the user's
external supply voltage can be used. The intensity of
the adjacent LED is proportional to the supply
voltage.
R36UH0010EU0106 Rev.1.06
Sep 8, 2022
(EVK) is designed for
website.
2
C interface.
Evaluation Kit Manual
Features
■
User-friendly EVK expedites configuration and
evaluation of the ZMOD4410 Gas Sensor Module
■
Water and dustproof version available (IP67
certified)
■
Supports different methods of operation, including
ultra-low power and AI technology for improved
TVOC readings
■
Operates with Renesas provided software; either
with executable ZMOD4410 GUI or alternatively
with firmware programming examples
■
The modular design of the EVK allows simple
connection of Sensor Boards for different gas
sensor derivatives and easy integration with other
sensor products via the I
■
The required Gas Sensor Evaluation Software is
available for free download on the Renesas
website, which also provides background
information on IAQ, TVOC, gas sensing, and how
to use the sensor firmware.
■
Additional pins to measure power consumption
and supply voltage
■
The bill of materials (BOM) and schematics for the
ZMOD4410 Communication Board and Sensor
Board are included in this document
ZMOD4410-EVK Contents
■
HiCom Communication Board
■
Sensor Board with ZMOD4410 Gas Sensor
Module
■
USB cable (Type-B to Micro-USB)
ZMOD4410 Evaluation Kit
Communication Board
USB Cable to
Computer
© 2018-2022 Renesas Electronics
2
C interface
ZMOD4410
ZMOD4410 HiCom
Sensor Board
ZMOD4410
Page 1
HS3001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZMOD4410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Renesas ZMOD4410

Summary of Contents for Renesas ZMOD4410

  • Page 1 -based operating systems to communicate ■ The modular design of the EVK allows simple with the ZMOD4410 EVK via a USB connection on connection of Sensor Boards for different gas the user’s computer, which functions as a master. sensor derivatives and easy integration with other...

  • Page 2: Table Of Contents

    Figure 1. Initial Display after Starting the Sensor Evaluation Software ..............5 Figure 2. Jumper Settings and Connectors on Top Side of the ZMOD4410 Communication Board ....... 6 Figure 3. Jumper Settings, Connections, and Test Points on the Communication Board for the Internal or External Supply Voltage ............................
  • Page 3 ZMOD4410 Evaluation Kit User Manual Tables Table 1. Evaluation Kit Connection Descriptions...................... 6 Table 2. Analysis Tab User Options ......................... 9 Table 3. Most Common Error Messages ........................ 11 Table 4. Communication Board BOM ........................15 Table 5. Sensor Board BOM ........................... 17 Table 6.

  • Page 4: Setup

    ZMOD4410 Evaluation Kit User Manual 1. Setup Initial Startup To set up and operate the ZMOD4410 Evaluation Kit (EVK) with the ZMOD4410, refer to the ZMOD4410 EVK Quick Start Guide included in the kit. Required or Recommended User Equipment By default, the internal supply voltage for powering the Sensor Board is generated from the USB voltage supplied by the user’s computer via the USB cable.

  • Page 5: Evk Hardware Connections And Initial Power-Up

    To set up the EVK hardware before using the software, complete the following procedure: 1. Refer to Figure 2, Figure 3, and Table 1 to determine the correct jumper settings for the ZMOD4410 Communication Board depending on whether an external supply or the internal voltage supply on the board is used.

  • Page 6: Figure 2. Jumper Settings And Connectors On Top Side Of The Zmod4410 Communication Board

    ZMOD4410 Evaluation Kit User Manual Figure 2. Jumper Settings and Connectors on Top Side of the ZMOD4410 Communication Board Table 1. Evaluation Kit Connection Descriptions Connector Type Description This jumper can be used to break the supply voltage line to measure the current 4-pin, 2-row header consumption of a connected Sensor Board.

  • Page 7: Usage Guide

    ZMOD4410 Evaluation Kit User Manual Figure 3. Jumper Settings, Connections, and Test Points on the Communication Board for the Internal or External Supply Voltage 2. Usage Guide When the Gas Sensor Evaluation Software is started, the initial window is displayed as shown in Figure 4. The initial display in all operation modes consists of three blocks: ■...

  • Page 8: Measurement Control Block

    Figure 4. Initial Display for the ZMOD4410 Start-Up Measurement Control Block The “Measurement” area of the display allows users to start the ZMOD4410’s gas measurements. When the “start sensor” button is clicked, the button name changes to “stop sensor” and the measurement starts running continuously.

  • Page 9: Signal Analysis Block And Options

    This option allows the loading of previously recorded csv files into the EVK software when having the same csv file column structure. This feature can also be used to compare results of ZMOD4410 EVK software with ZMOD4410 Data Source firmware csv files. It also allows processing of previously recorded csv files with the latest algorithms.
  • Page 10 Description The first measurements of the algorithm will be taken for sensor stabilization (“warm-up”) (for more information, see the ZMOD4410 Datasheet). This field indicates how much time has been completed during this period. Raw sensor signals and algorithm results are shown on the plots during this time, but full Algorithm Result algorithm performance is only given after warm-up.

  • Page 11: Plot Visualization Block

    Due to some interference between the FTDI, Windows operation system, and the computer’s USB driver, a startup problem may occur on some systems if the EVK is started on a USB 3 port. Renesas recommends using a USB 2.x port for the first initial startup of the EVK. The Gas Sensor Evaluation Software has a debug log file that can be found under: "C:\Users\USERNAME\AppData\Local\GasSensorEvaluation.log".

  • Page 12: Schematics

    ZMOD4410 Evaluation Kit User Manual 3. Schematics Figure 5. Communication Board Schematic – Page 1 R36UH0010EU0106 Rev.1.06 Page 12 Sep 8, 2022...

  • Page 13: Figure 6. Communication Board Schematic

    ZMOD4410 Evaluation Kit User Manual Figure 6. Communication Board Schematic – Page 2 R36UH0010EU0106 Rev.1.06 Page 13 Sep 8, 2022...

  • Page 14: Figure 7. Sensor Board Schematic

    ZMOD4410 Evaluation Kit User Manual Figure 7. Sensor Board Schematic R36UH0010EU0106 Rev.1.06 Page 14 Sep 8, 2022...

  • Page 15: Bill Of Materials (Bom)

    ZMOD4410 Evaluation Kit User Manual 4. Bill of Materials (BOM) Table 4. Communication Board BOM Position Name Description Package 10µF/16V 0805 100nF 0603 10nF 0805 100nF 0603 100nF 0603 10µF/16V 0805 10µF/16V 0805 10µF/16V 0805 100nF 0603 100nF 0603 100nF...
  • Page 16 ZMOD4410 Evaluation Kit User Manual Position Name Description Package 93LC46B SOT23-6 FT2232HL LQFP64 SN74LVC1T45 SOT23-6 SN74LVC2T45DCT SSOP8_0,65 I_meas 2X02 Select 1X03 K2X4 2X04-90 K2X7 LH-14 V_EXT 1X02 10µH 1210 10µH 1210 10µH 1210 Modul1 Honeywell480-3652-1-ND DIL8 SMD SOCKEL 12.00MHz QUARZ-ABM3 1kΩ...

  • Page 17: Table 5. Sensor Board Bom

    ZMOD4410 Evaluation Kit User Manual Table 5. Sensor Board BOM Position Name Quantity Description Package 1µF 25V X5R 20% BF:0402 C2, C3 100nF 25V X5R 20% BF:0402 RES 10kOhm 1% TK100 ZMOD4410 Indoor Air Quality Sensor LGA12 HS3001 Temperature and Humidity Sensor...

  • Page 18: Board Layout

    ZMOD4410 Evaluation Kit User Manual 5. Board Layout Figure 8. HiCom Communication Board Layout – Top Layer Figure 9. HiCom Communication Board Layout – Bottom Layer R36UH0010EU0106 Rev.1.06 Page 18 Sep 8, 2022...

  • Page 19: Figure 10. Sensor Board Layout - Top Layer With Pin Configuration On Connector X1

    ZMOD4410 Evaluation Kit User Manual Figure 10. Sensor Board Layout – Top Layer with PIN Configuration on Connector X1 Figure 11. Sensor Board Layout – Bottom Layer R36UH0010EU0106 Rev.1.06 Page 19 Sep 8, 2022...

  • Page 20: Ordering Information

    ZMOD4410 EVK product page. ZMOD4410 Evaluation Kit including the water- and dust proof ZMOD4410 Sensor Board, ZMOD4410-EVK-HC-WP HiCom Communication Board (USB Interface), and Micro-USB Cable. The Gas Evaluation Software is available for download free of charge on ZMOD4410 EVK product page.
  • Page 21 Renesas' products are provided only subject to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources expands or otherwise alters any applicable warranties or warranty disclaimers for these products.
