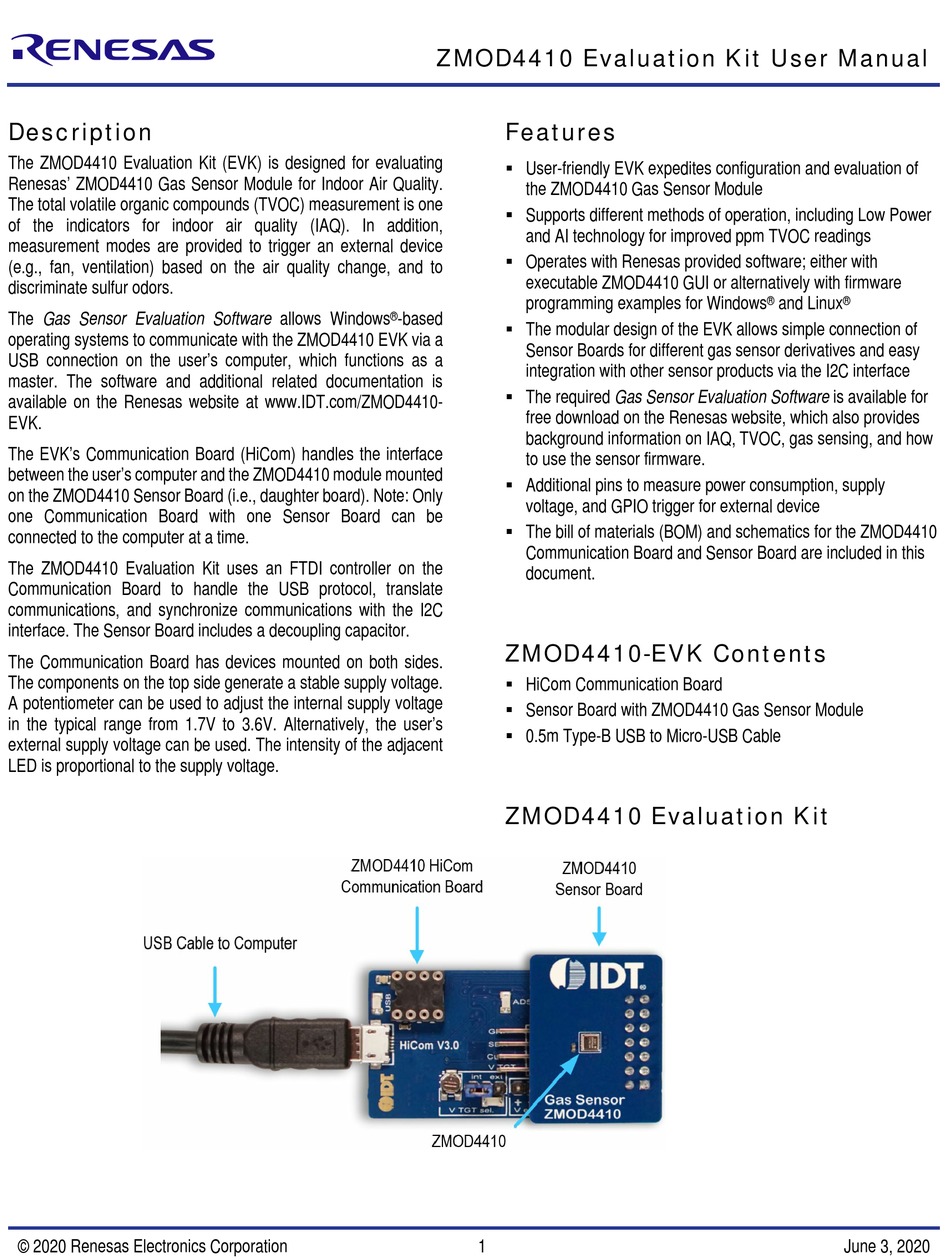

Description
The ZMOD4410 Evaluation Kit (EVK) is designed for evaluating
Renesas' ZMOD4410 Gas Sensor Module for Indoor Air Quality.
The total volatile organic compounds (TVOC) measurement is one
of the indicators for indoor air quality (IAQ). In addition,
measurement modes are provided to trigger an external device
(e.g., fan, ventilation) based on the air quality change, and to
discriminate sulfur odors.
The Gas Sensor Evaluation Software allows Windows
operating systems to communicate with the ZMOD4410 EVK via a
USB connection on the user's computer, which functions as a
master. The software and additional related documentation is
available on the Renesas website at www.IDT.com/ZMOD4410-
EVK.

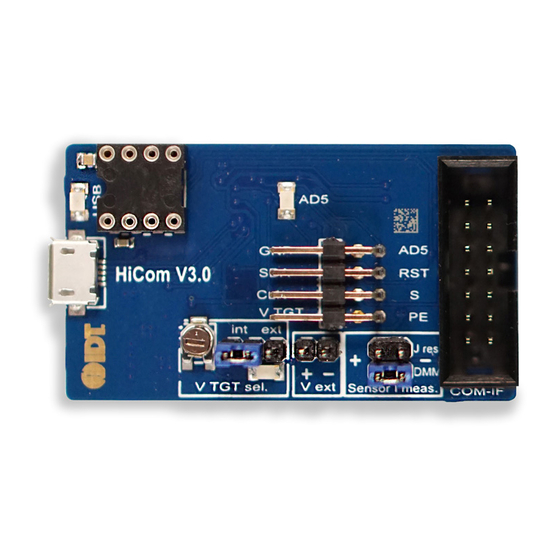

The EVK's Communication Board (HiCom) handles the interface
between the user's computer and the ZMOD4410 module mounted
on the ZMOD4410 Sensor Board (i.e., daughter board). Note: Only
one Communication Board with one Sensor Board can be
connected to the computer at a time.
The ZMOD4410 Evaluation Kit uses an FTDI controller on the
Communication Board to handle the USB protocol, translate
communications, and synchronize communications with the I2C
interface. The Sensor Board includes a decoupling capacitor.
The Communication Board has devices mounted on both sides.
The components on the top side generate a stable supply voltage.
A potentiometer can be used to adjust the internal supply voltage
in the typical range from 1.7V to 3.6V. Alternatively, the user's
external supply voltage can be used. The intensity of the adjacent
LED is proportional to the supply voltage.
© 2020 Renesas Electronics Corporation
ZMOD4410 Evaluation Kit User Manual
Features
User-friendly EVK expedites configuration and evaluation of

the ZMOD4410 Gas Sensor Module
Supports different methods of operation, including Low Power

and AI technology for improved ppm TVOC readings
Operates with Renesas provided software; either with

executable ZMOD4410 GUI or alternatively with firmware
programming examples for Windows
-based
®
The modular design of the EVK allows simple connection of

Sensor Boards for different gas sensor derivatives and easy
integration with other sensor products via the I2C interface
The required Gas Sensor Evaluation Software is available for

free download on the Renesas website, which also provides
background information on IAQ, TVOC, gas sensing, and how
to use the sensor firmware.
Additional pins to measure power consumption, supply

voltage, and GPIO trigger for external device
The bill of materials (BOM) and schematics for the ZMOD4410

Communication Board and Sensor Board are included in this
document.
ZMOD4410-EVK Contents
HiCom Communication Board

Sensor Board with ZMOD4410 Gas Sensor Module

0.5m Type-B USB to Micro-USB Cable

ZMOD4410 Evaluation Kit
1
and Linux
® ®
June 3, 2020
