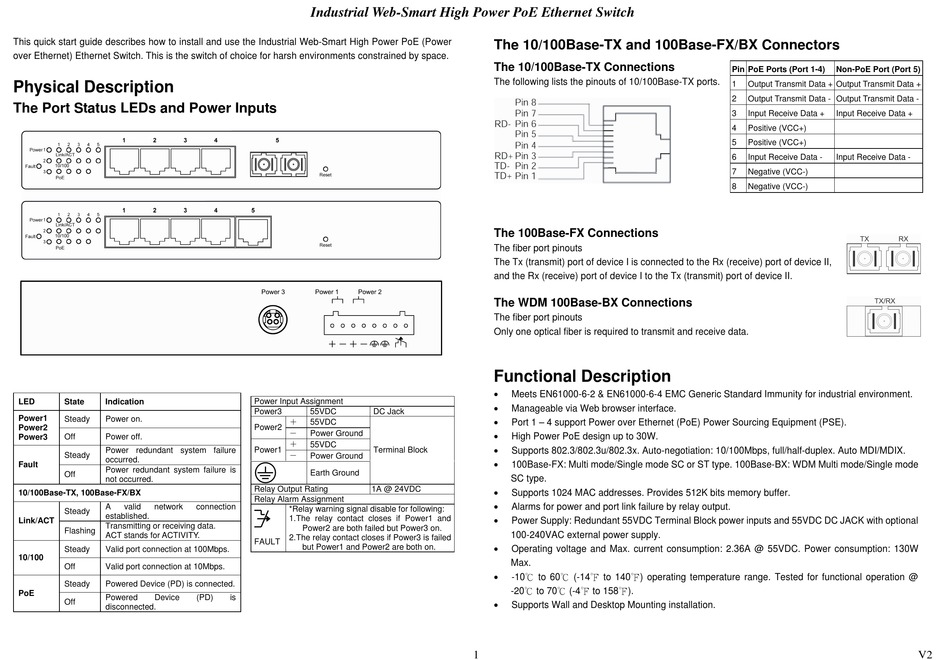

EtherWAN EX38000 Series Quick Start Manual

This quick start guide describes how to install and use the Industrial Web-Smart High Power PoE (Power
over Ethernet) Ethernet Switch. This is the switch of choice for harsh environments constrained by space.

Physical Description

The Port Status LEDs and Power Inputs

LED State Indication
Power1
Steady Power on.
Power2
Power3 Off Power off.
Power redundant system failure
Steady
occurred.
Fault
Power redundant system failure is
Off
not occurred.
10/100Base-TX, 100Base-FX/BX
A valid network
Steady
established.
Link/ACT
Transmitting or receiving data.
Flashing
ACT stands for ACTIVITY.
Steady Valid port connection at 100Mbps.
10/100
Off Valid port connection at 10Mbps.
Steady Powered Device (PD) is connected.
PoE
Powered Device
Off
disconnected.
Industrial Web-Smart High Power PoE Ethernet Switch

Power Input Assignment

Power3 55VDC DC Jack
＋
55VDC
Power2
－
Power Ground
＋
55VDC
Power1 Terminal Block
－
Power Ground
Earth Ground

Relay Output Rating

1A @ 24VDC

Relay Alarm Assignment

connection
*Relay warning signal disable for following:
1. The relay contact closes if Power1 and
Power2 are both failed but Power3 on.
2. The relay contact closes if Power3 is failed
FAULT
but Power1 and Power2 are both on.
(PD) is

The 10/100Base-TX and 100Base-FX/BX Connectors

The 10/100Base-TX Connections

The following lists the pinouts of 10/100Base-TX ports.

The 100Base-FX Connections

The fiber port pinouts
The Tx (transmit) port of device I is connected to the Rx (receive) port of device II,
and the Rx (receive) port of device I to the Tx (transmit) port of device II.

The WDM 100Base-BX Connections

The fiber port pinouts
Only one optical fiber is required to transmit and receive data.

Functional Description

•
Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial environment.
•
Manageable via Web browser interface.
•
Port 1 – 4 support Power over Ethernet (PoE) Power Sourcing Equipment (PSE).
•
High Power PoE design up to 30W.
•
Supports 802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, full/half-duplex. Auto MDI/MDIX.
•
100Base-FX: Multi mode/Single mode SC or ST type. 100Base-BX: WDM Multi mode/Single mode
SC type.
•
Supports 1024 MAC addresses. Provides 512K bits memory buffer.
•
Alarms for power and port link failure by relay output.
•
Power Supply: Redundant 55VDC Terminal Block power inputs and 55VDC DC JACK with optional
100-240VAC external power supply.
•
Operating voltage and Max. current consumption: 2.36A @ 55VDC. Power consumption: 130W
Max.
•
℃ ℃ -14℉ to 140℉) operating temperature range. Tested for functional operation @
-10 to 60 (
-20 ℃ to 70 ℃ -4℉ to 158℉). (
•
Supports Wall and Desktop Mounting installation.
1
Pin PoE Ports (Port 1-4) Non-PoE Port (Port 5)
1 Output Transmit Data + Output Transmit Data +
2 Output Transmit Data - Output Transmit Data -
3 Input Receive Data + Input Receive Data +
4 Positive (VCC+)
5 Positive (VCC+)
6 Input Receive Data - Input Receive Data -
7 Negative (VCC-)
8 Negative (VCC-)
V2
