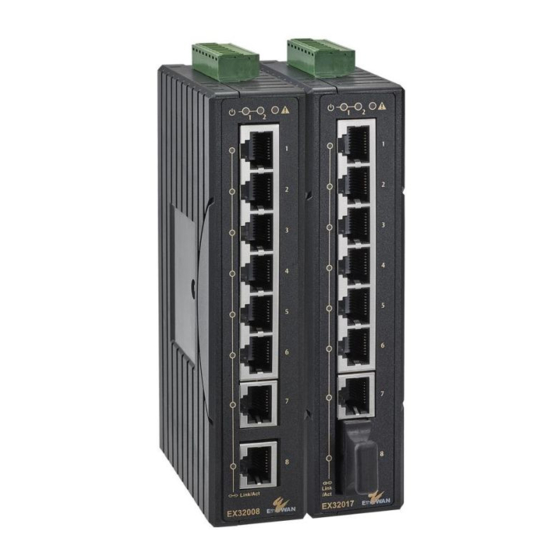

EtherWAN EX32008 Series Quick Start Manual

EX32008 series
This quick start guide describes how to install and use the Industrial Ethernet Switch.
Capable of operating at temperature extremes of -10°C to +60°C, this is the Switch of
choice for harsh environments constrained by space.

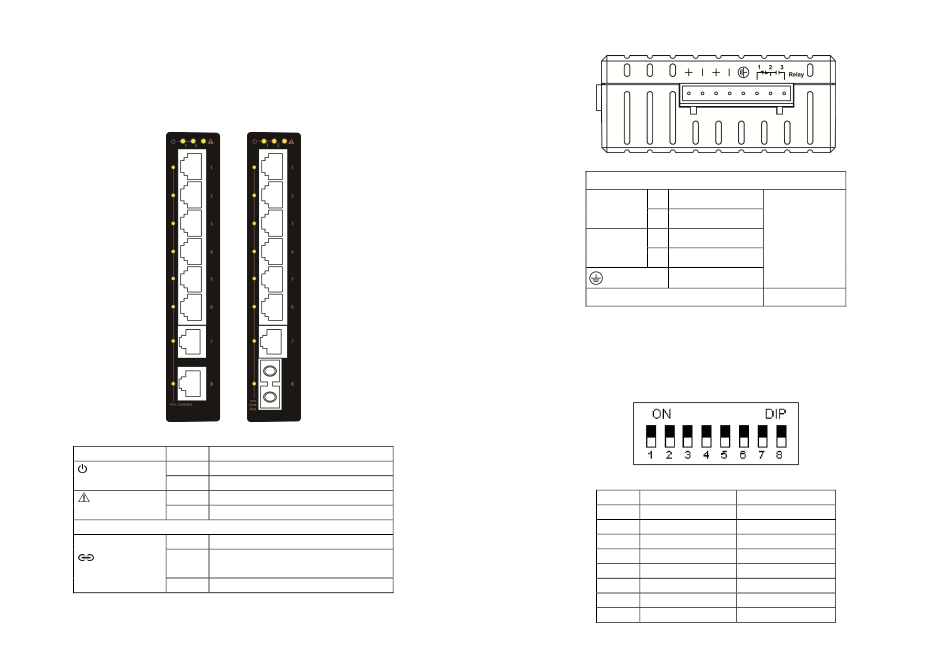

Physical Description
The Port Status LEDs
LED State
Steady
Power 1, 2 (Green) Off
Steady
Fault (Red) Off
10/100TX or 100FX/BX Ports
Steady
Blinking
Link/Act (Green)
Off
Industrial Ethernet Switch
Indication
Power on.
Power off.
Relay starts alarm.
Relay non-alarm.
A valid network connection established.
Transmitting or receiving data.
Act stands for Activity.
No link.
The Terminal Block and Power Inputs
Power Input Assignment
＋
Power 1
－
＋
Power 2
－
Relay Output Rating
DC Terminal Block Power Input: The DC Terminal Block power input can be used to
power up this Switch.
DIP Switch Settings
DIP No. On
1 Port 1 Alarm Enable.
2 Port 2 Alarm Enable.
3 Port 3 Alarm Enable.
4 Port 4 Alarm Enable.
5 Port 5 Alarm Enable.
6 Port 6 Alarm Enable.
7 Port 7 Alarm Enable.
8 Port 8 Alarm Enable.
1
www.etherwan.com
12~48VDC
Power Ground
Terminal Block
12~48VDC
Power Ground
Earth Ground
1A @ 250VAC
Off
Port 1 Alarm Disable.
Port 2 Alarm Disable.
Port 3 Alarm Disable.
Port 4 Alarm Disable.
Port 5 Alarm Disable.
Port 6 Alarm Disable.
Port 7 Alarm Disable.
Port 8 Alarm Disable.
W70G-EX32008Q1
