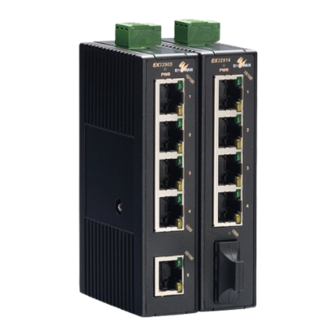

EtherWAN EX32905 Series Quick Start Manual

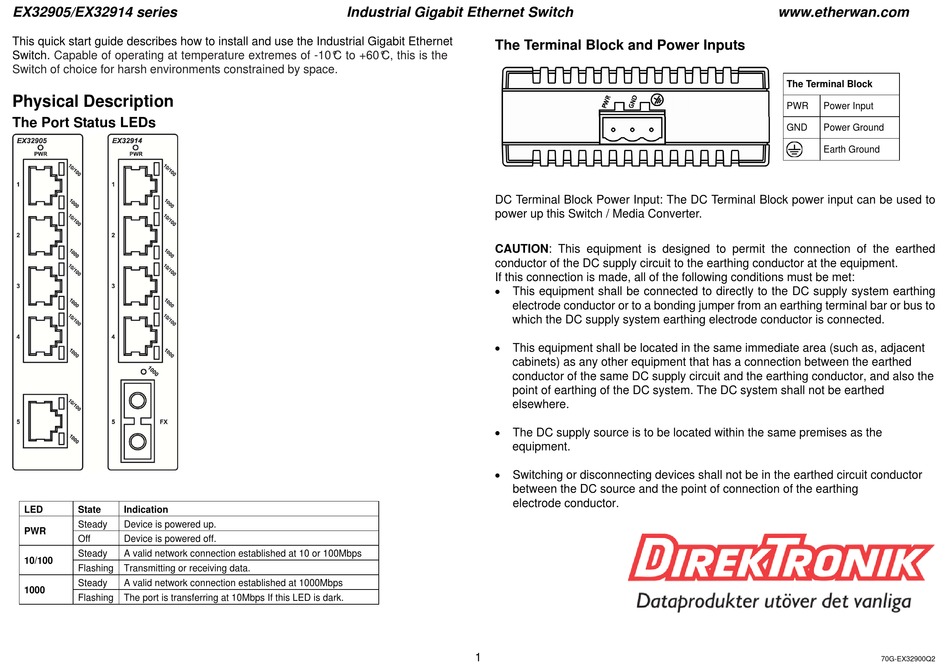

EX32905/EX32914 series
This quick start guide describes how to install and use the Industrial Gigabit Ethernet
Switch. Capable of operating at temperature extremes of -10° C to +60° C, this is the
Switch of choice for harsh environments constrained by space.
Physical Description
The Port Status LEDs
LED State Indication
Steady Device is powered up.
PWR
Off Device is powered off.
Steady A valid network connection established at 10 or 100Mbps
10/100
Flashing Transmitting or receiving data.
Steady A valid network connection established at 1000Mbps
1000
Flashing The port is transferring at 10Mbps If this LED is dark.
Industrial Gigabit Ethernet Switch
The Terminal Block and Power Inputs
DC Terminal Block Power Input: The DC Terminal Block power input can be used to
power up this Switch / Media Converter.
CAUTION: This equipment is designed to permit the connection of the earthed
conductor of the DC supply circuit to the earthing conductor at the equipment.
 This equipment shall be connected to directly to the DC supply system earthing
If this connection is made, all of the following conditions must be met:
electrode conductor or to a bonding jumper from an earthing terminal bar or bus to
which the DC supply system earthing electrode conductor is connected.
 This equipment shall be located in the same immediate area (such as, adjacent
cabinets) as any other equipment that has a connection between the earthed
conductor of the same DC supply circuit and the earthing conductor, and also the
point of earthing of the DC system. The DC system shall not be earthed
elsewhere.
 The DC supply source is to be located within the same premises as the
equipment.
 Switching or disconnecting devices shall not be in the earthed circuit conductor
between the DC source and the point of connection of the earthing
electrode conductor.
1
www.etherwan.com
The Terminal Block
PWR Power Input
GND Power Ground
Earth Ground
70G-EX32900Q2
