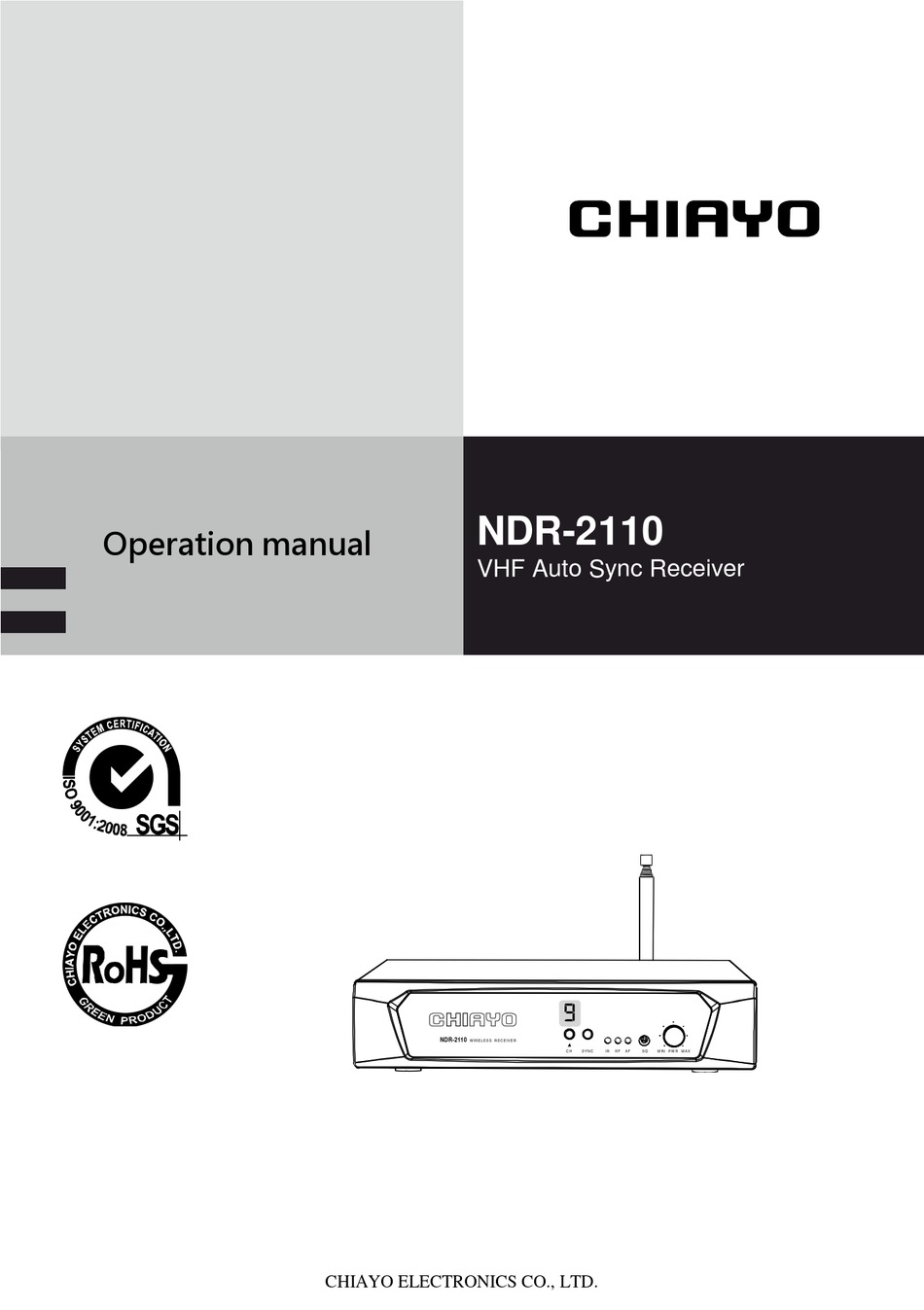

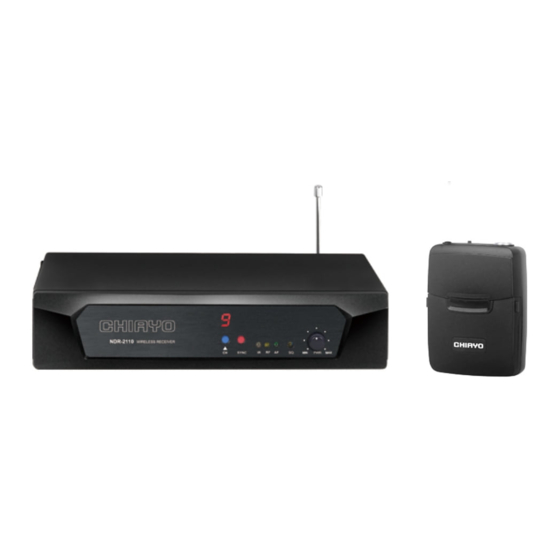

- Page 1 NDR-2110 Operation manual VHF Auto Sync Receiver NDR-2110 W IR E L E S S R E C E IV E R S Y N C M IN P W R M A X CHIAYO ELECTRONICS CO., LTD.
- Page 2 NDR-2110 VHF Auto Sync Receiver Thank you for choosing this wireless microphone system! For more details, please take a few moments to read this operating manual to have a thorough understanding of the function and operation of both transmitter and receiver.
- Page 3 Instructions Parts and functions Antenna (fixed) Power/Volume control Channel indicator NDR-2110 W IR E L E S S R E C E IV E R S Y N C M IN P W R M A X Channel scan button...
- Page 4 NDR-2110 VHF Auto Sync Receiver Function settings on NDR-2110 Adjusting VOLUME level Volume level can be adjusted by rotating the Power/volume knob. NDR-2110 WIRELESS RECEIVER SYNC MIN PWR MAX Scanning & Changing CHANNEL First turn on main power switch, the 7-segment display LED will show current channel number.
- Page 5 Instructions Changing the transmitter’s channel Press the sync button on the receiver. The receiver will transmit the frequency to the transmitter and synchronize the channel. SYNC If it doesn’t work check that you have the IR sensor panels aligned, that they are facing each other, devices are within 30cm of each other, and try again.
- Page 6 NDR-2110 VHF Auto Sync Receiver Audio output connection Unbalanced output: ¼” PHONE PLUG connector provides unbalanced audio output signal from this jack to the mixer/amplifier. Use an audio output cable with ¼” PHONE PLUG connectors. Connect one end from the unbalanced output jack of the receiver, and the other end to the “LINE IN”...
- Page 7 Instructions Rack mounting The slide rail structure on both sides of the receiver is designed to facilitate the user to connect the two receivers in parallel and quickly install onto the cabinet. ► Rack mount of two receivers Rack mount of single receiver...
- Page 8 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611...
