Summary of Contents for Chiayo NDR-2120

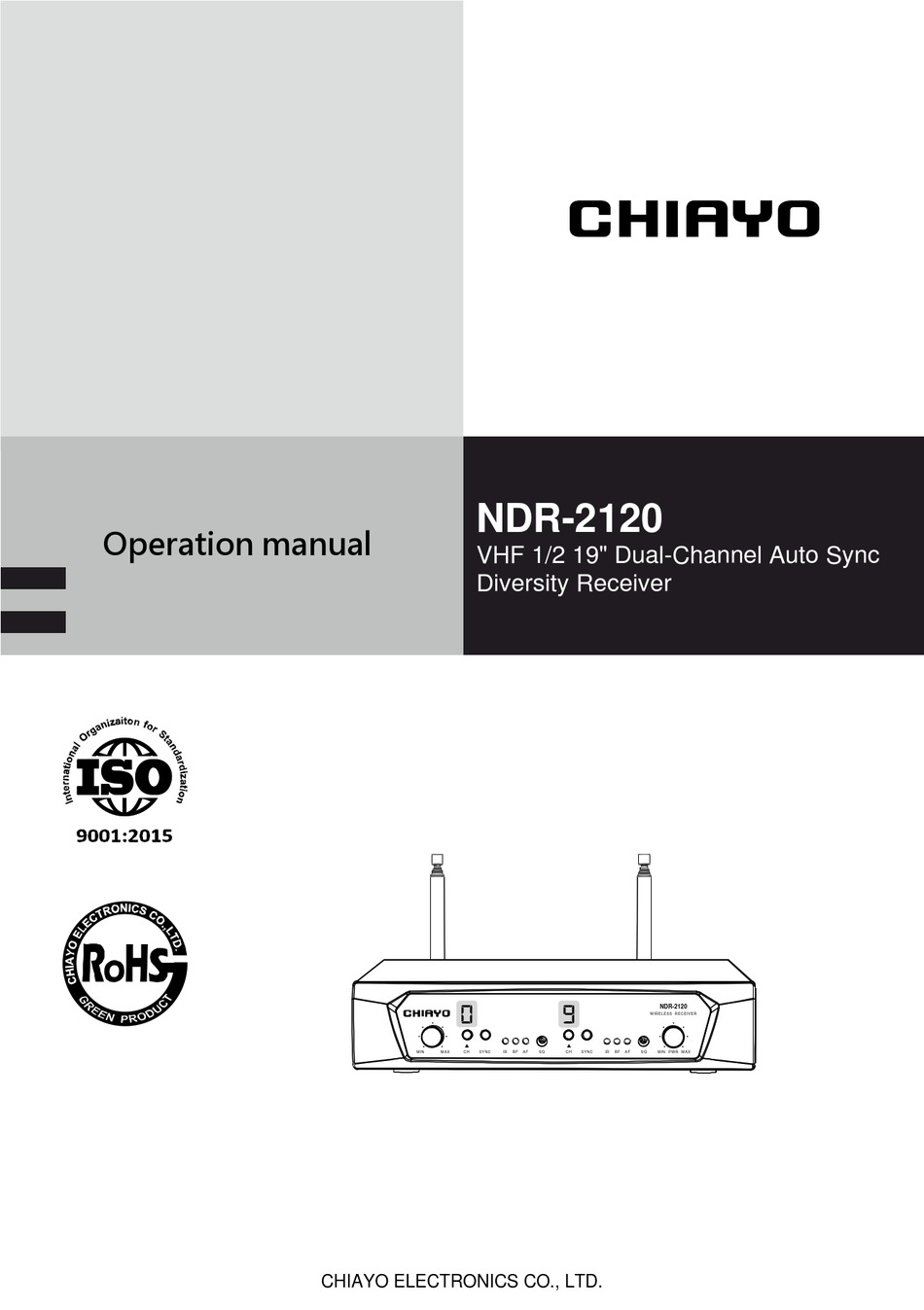

- Page 1 NDR-2120 Operation manual VHF 1/2 19" Dual-Channel Auto Sync Diversity Receiver NDR-2120 W IR ELESS RECEIVER M IN M A X SY N C SY N C M IN PW R M AX CHIAYO ELECTRONICS CO., LTD.
- Page 2 NDR-2120 VHF 1/2 19" Dual-Channel Auto Sync Diversity Receiver Thank you for choosing this wireless microphone system! For more details, please take a few moments to read this operating manual to have a thorough understanding of the function and operation of both transmitter and receiver.

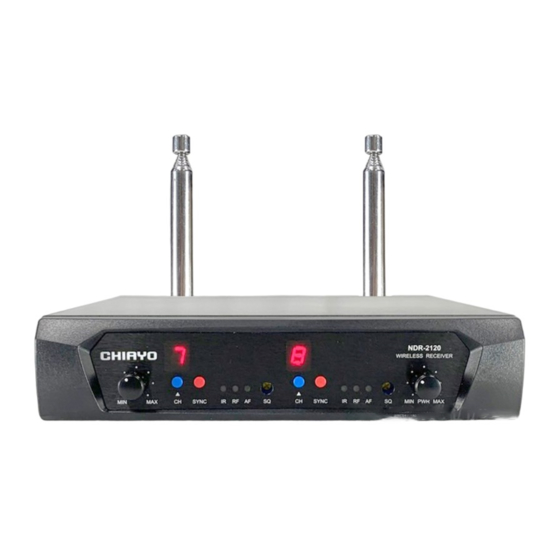

- Page 3 Antenna A Antenna B Channel Channel CH-A volume control Power / CH-B indicator indicator volume control NDR-2120 W IR ELESS RECEIVER M A X M IN PW R M AX M IN SY N C SY N C CH-A CH-B...
- Page 4 NDR-2120 VHF 1/2 19" Dual-Channel Auto Sync Diversity Receiver Adjusting volume level Both channel’s volume level can be adjusted separately by rotating its designated volume knob. NDR-2110 WIRELESS RECEIVER SYNC MIN PWR MAX Scanning & changing channel First turn on main power switch, the 7-segment channel indicator will display current channel number.
- Page 5 If this still does not solve the problem it means this frequency is not suitable. Adjust the squelch back to where it was and use the scan function to locate a clear channel. NDR-2120 WIRELESS RECEIVER MIN PWR MAX...
- Page 6 NDR-2120 VHF 1/2 19" Dual-Channel Auto Sync Diversity Receiver Audio output connection Unbalanced output: ¼” PHONE PLUG connector provides unbalanced audio output signal from this jack to the mixer/amplifier. Use an audio output cable with ¼” PHONE PLUG connectors. Connect one end from the unbalanced output jack of the receiver, and the other end to the “LINE / AUX IN”...
- Page 7 Instructions Receiver placement For best operation, the receiver should be at least 1m above the ground and 1m away from a wall or metal surface to minimize reflections. The transmitter should also be at least 1m away from a wall or metal surface to minimize reflections.
- Page 8 CHIAYO ELECTRONICS CO., LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611 12I1404...
