Chiayo SDR-5200M IrDA Manual

SDR-5200M IrDA｜SDR-5100M IrDA｜SDR-5116M receiver modules
Verify channel and frequency in use
The channel LED① will show last stored frequency and channel. For example, if channel 36 is
608.750MHz, the LED will first display 60,87,50 and 36 in sequence.
Select a channel that corresponds to the transmitter. When transmitter is turned on, either A or B
diversity indicator② will light up to indicate that it is connected.

Changing channels

SDR-5200/5100M IrDA (100 channels)
Press LEFT button to
increase the TENS-digit
channel number.
+1
CHANNEL scanning (IrDA series only)
For an interference- free operation, a cleaner channel might be necessary if the current one
receives too much interference. Before scanning, the transmitter must be switched off.
1. Press and hold either channel button for 3
seconds
scan up◄
SQUELCH (SQ) setting
When interference is encountered try reducing the sensitivity of the receiver by
turning the SQ control clockwise, thus less susceptible to interference. If this still
does not solve the problem it means this frequency is not suitable. Adjust the
squelch back to where it was and use the scan function to locate a clear,
interference-free channel.

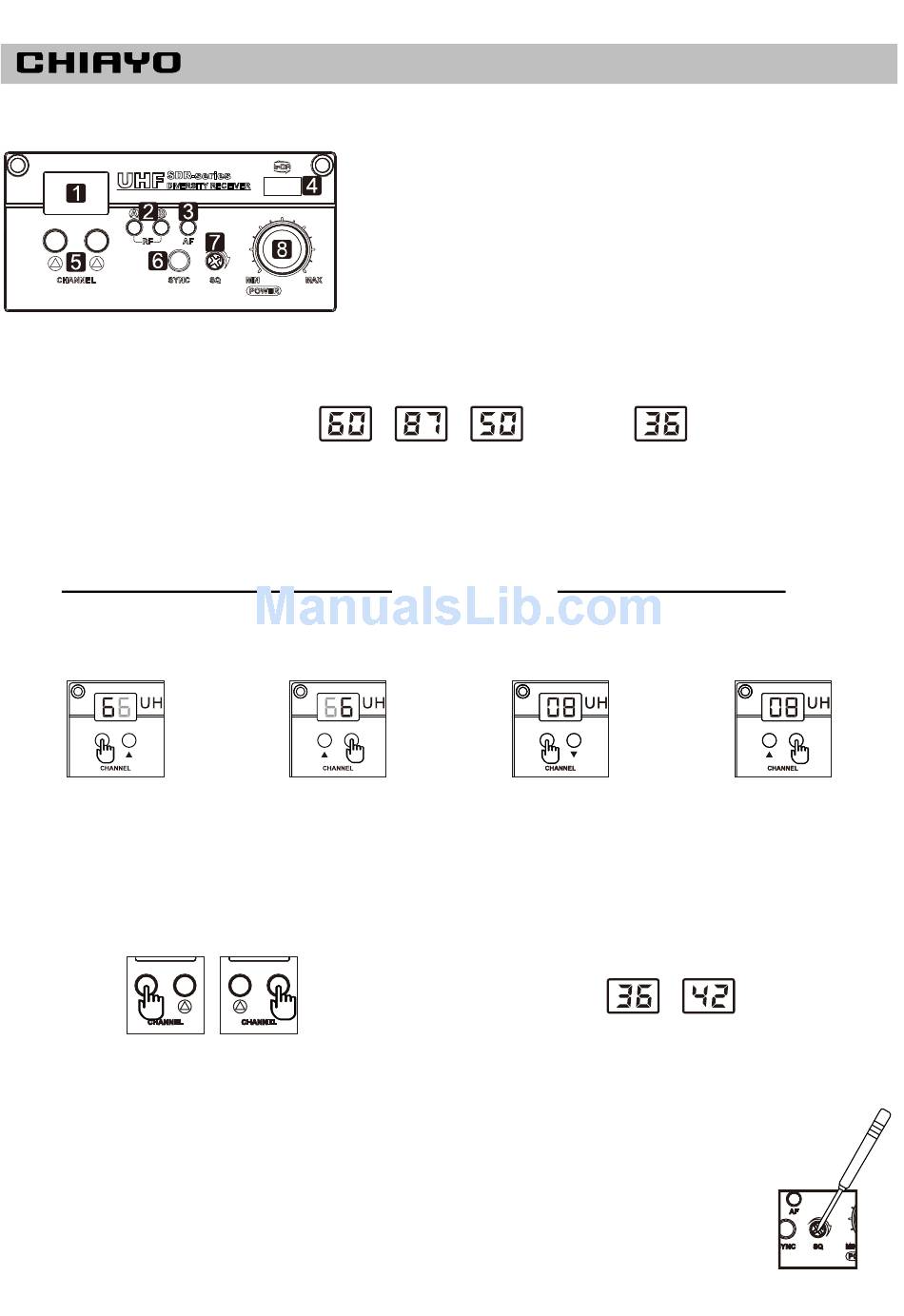

1. Channel indicator
2. Diversity A/B indicator
3. Audio signal indicator
4. IR sensor area
(IrDA series only)
►
Frequency:
Press RIGHT button to
increase the UNIT-digit
channel number.
+1
►scan down
5. Channel Select/Scan buttons
6. IrDA synchronizing button
7. Squelch control
8. Power switch/volume control
► ►Channel:
SDR-5116M (16 channels)
Press LEFT button to
increase the channel
number.
+1
08
2. The receiver will find and locate a clear,
interference- free channel.
(IrDA series only)
Press RIGHT button to
decrease the channel
number.
-1
08
►
