Page 1: Operation Manual

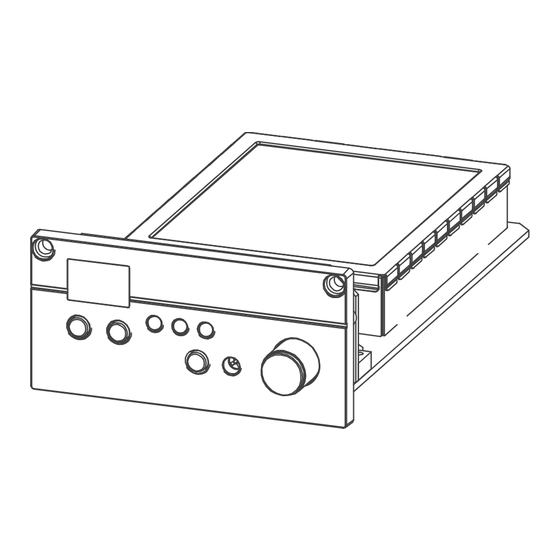

SDR-5100M SDR-5200M Operation manual UHF 2-Way Sync Receiver Module CHIAYO ELECTRONICS CO.,LTD. - Page 2 SDR-5100/5200M IrDA UHF 2-Way Sync Receiver Module SDR-5100/5200M IrDA receiver module 1. Channel indicator 2. Diversity A/B indicator 3. Audio signal indicator 4. IR sensor area 5. Channel Select/Scan buttons 6. IrDA synchronizing button 7. Squelch control 8. Power switch/volume control Verify channel and frequency in use The channel LED will show last stored frequency and channel.
- Page 3 Instructions Changing CHANNEL Press LEFT button to increase the TENS-digit channel number. Press RIGHT button to increase the UNIT-digit channel number.
- Page 4 SDR-5100/5200M IrDA UHF 2-Way Sync Receiver Module CHANNEL scanning For an interference-free operation, a cleaner channel might be necessary if the current one receives too much interference. Before scanning, the transmitter must be switched off. Press and hold either channel button for 3 seconds The receiver will find and locate a clear, interference- free channel.
- Page 5 Instructions SQUELCH (SQ) setting When interference is encountered try reducing the sensitivity of the receiver by turning the SQ control clockwise, thus less susceptible to interference. If this still does not solve the problem it means this frequency is not suitable. Adjust the squelch back to where it was and use the scan function to locate a clear, interference-free channel.
- Page 6 SDR-5100/5200M IrDA UHF 2-Way Sync Receiver Module Channel synchronizing between receiver and transmitter Align infrared areas of the receiver and transmitter within 10~30cm. 10~30cm Changing receiver’s channel Changing transmitter’s channel Press the synchronizing button of Press the SYNC button of the the transmitter.
- Page 7 Instructions If it doesn’t work check that you have the IR sensor panels aligned, that they are facing each other, devices are within 10~30cm of each other, and try again.
- Page 8 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611...
