Summary of Contents for Chiayo DWR-2420

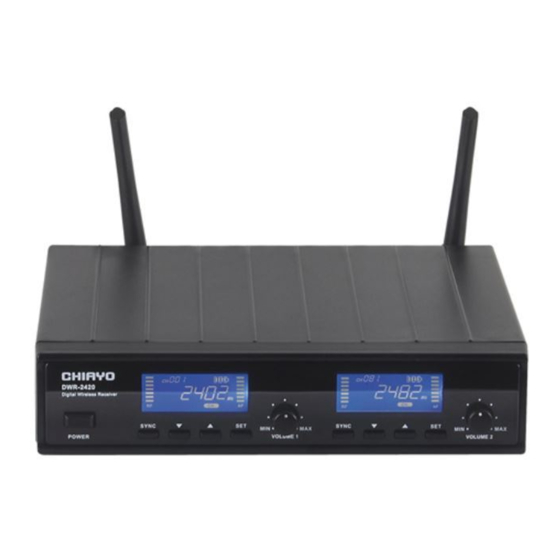

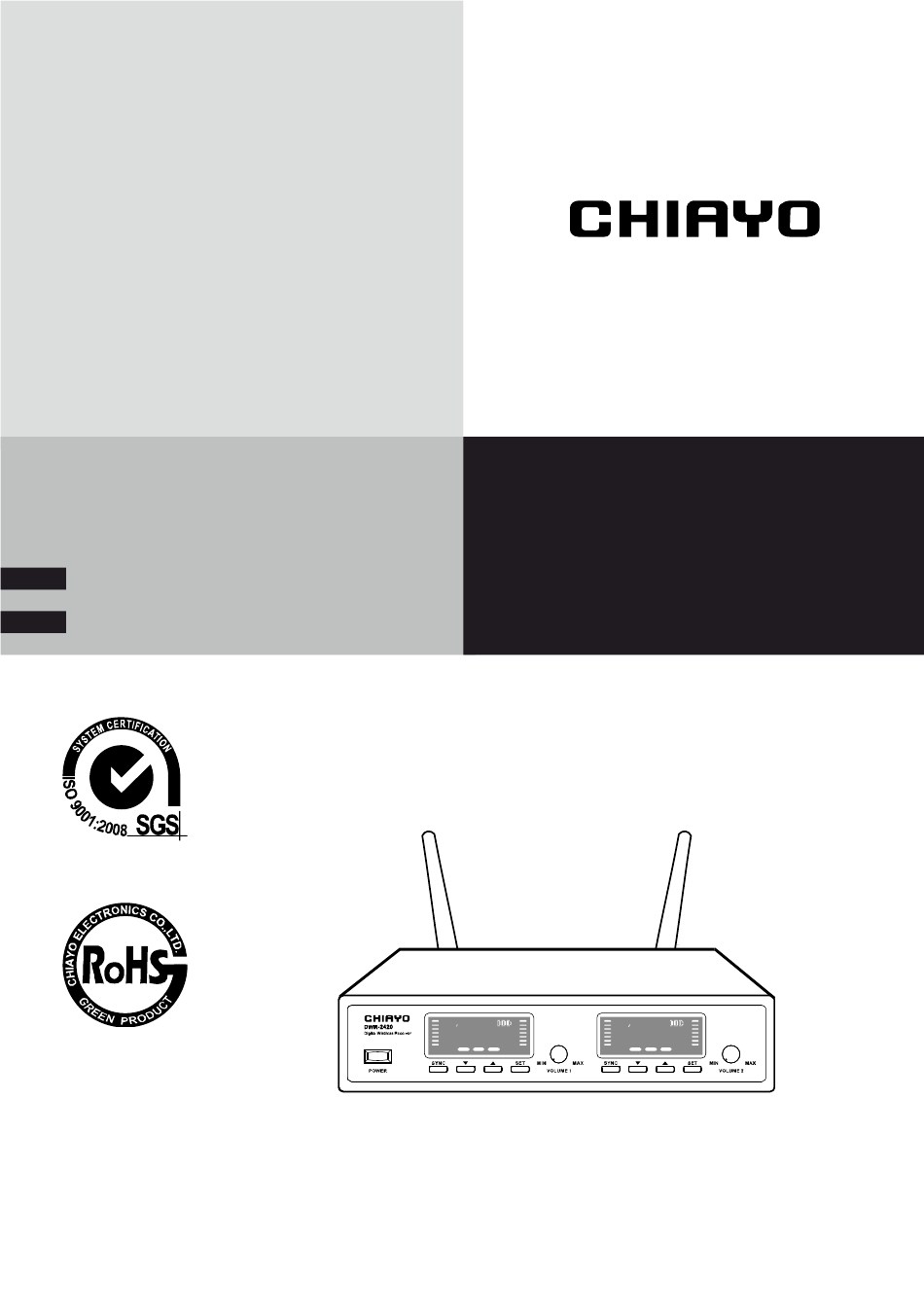

- Page 1 DWR-2420 Operation manual Detachable Antenna Dual Channel Digital Receiver 2407 2480 FREQ FREQ CHIAYO ELECTRONICS CO.,LTD.
- Page 2 DWR-2420 Detachable Antenna Dual Channel Digital Receiver Detachable Antenna Dual Channel Digital Receiver Thank you for choosing CHIAYO digital wireless microphone system! For more details, please take a few moments to read this operating manual for thorough understanding of the function and operation of both transmitter and receiver.
- Page 3 D C I N CH 1 balanced audio output CH 2 balanced audio output Antenna B (BNC) Function settings on DWR-2420 RECEIVING MODE setting There are two receiving modes for selection. 2CH DIVERSITY: For indoors like classroom and meeting room. Under this mode, you can use both transmitters and the reception is about 30m (line of sight).
- Page 4 DWR-2420 Detachable Antenna Dual Channel Digital Receiver Detachable Antenna Dual Channel Digital Receiver Changing CHANNEL / FREQUENCY Press-release ▲(UP) or ▼(DOWN) button until the channel icon appears. SYNC 2407 M Hz Press and hold SET button until the channel number flashes to denote readiness for setting.
- Page 5 Instructions Press-release ▲(UP) or ▼(DOWN) button to find and locate a clear, interference- free channel. SYNC S ER042 After a channel is chosen, press SET button to save the setting. SYNC CHANNEL SYNCHRONIZING of the receiver and transmitter Press and hold the transmitter’s synchronizing button until “LINK” flashes on the LCD. CH :0 00 L I N K FREQ...
- Page 6 DWR-2420 Detachable Antenna Dual Channel Digital Receiver Detachable Antenna Dual Channel Digital Receiver CHANNEL GROUP setting There are two channel groups for selection: GROUP CH081 includes 81 selectable frequencies from CH1 to CH81. GROUP CH189 includes 189 selectable frequencies from CH1 to CH189.
- Page 7 Instructions Audio output connection Balanced output: XLR connector provides balanced audio output signal from this jack to the mixer/amplifier. Use an audio output cable with “XLR” or “Cannon” connector, connect one end to the balanced output jack of the receiver, and the other end to the “MIC IN” jack of the mixer/ amplifier.
- Page 8 Detachable Antenna Dual Channel Digital Receiver CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611...
