Operation manual
POWER
NDR-3900
Dual-Channel Auto-Sync Diversity
Receiver
MIN
MAX
VOLUME
CHIAYO ELECTRONICS CO., LTD.
888
888
CH
A
B
CH
A
B
8 8 8 8 8 8
8 8 8 8 8 8
MHz
MHz
AUDIO
FREQ
SC AN
SQ
FREQ
SCAN
SQ
AUDIO
NDR-3900
DUAL CHANNEL DIVERSITY RECEIVER
MIN
MAX
VOLUME
Advertisement
Related Manuals for Chiayo NDR-3900
Summary of Contents for Chiayo NDR-3900

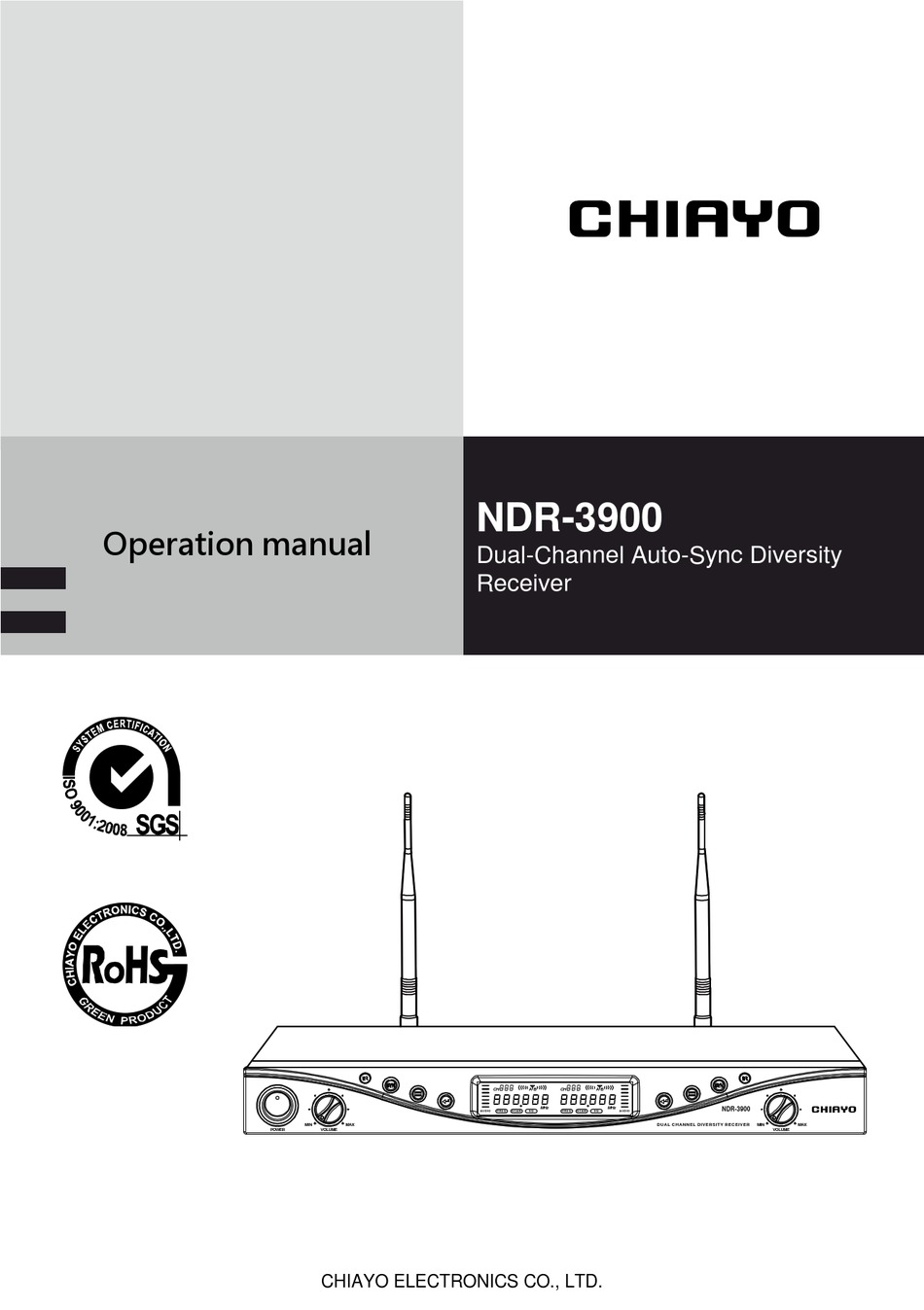

- Page 1 NDR-3900 Operation manual Dual-Channel Auto-Sync Diversity Receiver 8 8 8 8 8 8 8 8 8 8 8 8 NDR-3900 AUDIO FREQ SC AN FREQ SCAN AUDIO DUAL CHANNEL DIVERSITY RECEIVER POWER VOLUME VOLUME CHIAYO ELECTRONICS CO., LTD.
- Page 2 NDR-3900 Dual-Channel Auto-Sync Diversity Receiver Thank you for choosing this wireless microphone system! Our products are designed to last and for user friendly operation. Each system consists of: 1. a receiver 2. two handheld or belt-pack transmitters 3. a pair of antennas 4.
-
Page 3: Parts And Functions
Volume control (CH A) Setting/Down button (CH B) IR sensor LED Channel sync button (CH B) LCD display Power control 888888 888888 NDR-3900 A U D IO FREQ SCAN FREQ SCAN A U D IO DUAL CHANNEL DIVERSITY RECEIVER POWER... -
Page 4: Channel Scanning
NDR-3900 Dual-Channel Auto-Sync Diversity Receiver Changing CHANNEL / FREQUENCY Press-release the menu/up button until Hold setting/down button until this icon the frequency icon appears on the flashes to denote readiness for bottom. setting. 00 1 00 1 650000 650000 ►... - Page 5 Instructions SQUELCH (SQ) setting When interference is encountered try reducing the sensitivity of the receiver, thus less susceptible to interference. Press-release the menu/up button until Hold setting/down button until this icon the squelch icon appears on the flashes to denote readiness for bottom.
- Page 6 NDR-3900 Dual-Channel Auto-Sync Diversity Receiver Audio output connection Balanced output: XLR connector provides balanced audio output signal from this jack to the mixer/amplifier. Use an audio output cable with “XLR” or “Cannon” connector, connect one end to the balanced output jack of the receiver, and the other end to the “MIC IN” jack of the mixer/ amplifier.
- Page 7 Keep antennas away from noise source such as motors, automobiles, neon light as well as large metal objects. Rack mounting NDR-3900 is an EIA standard 1U rack-mountable receiver base with metal chassis. It can be cabinet-mounted with provided kits. Please refer to the following assembly illustration.
- Page 8 CHIAYO ELECTRONICS CO., LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611...
