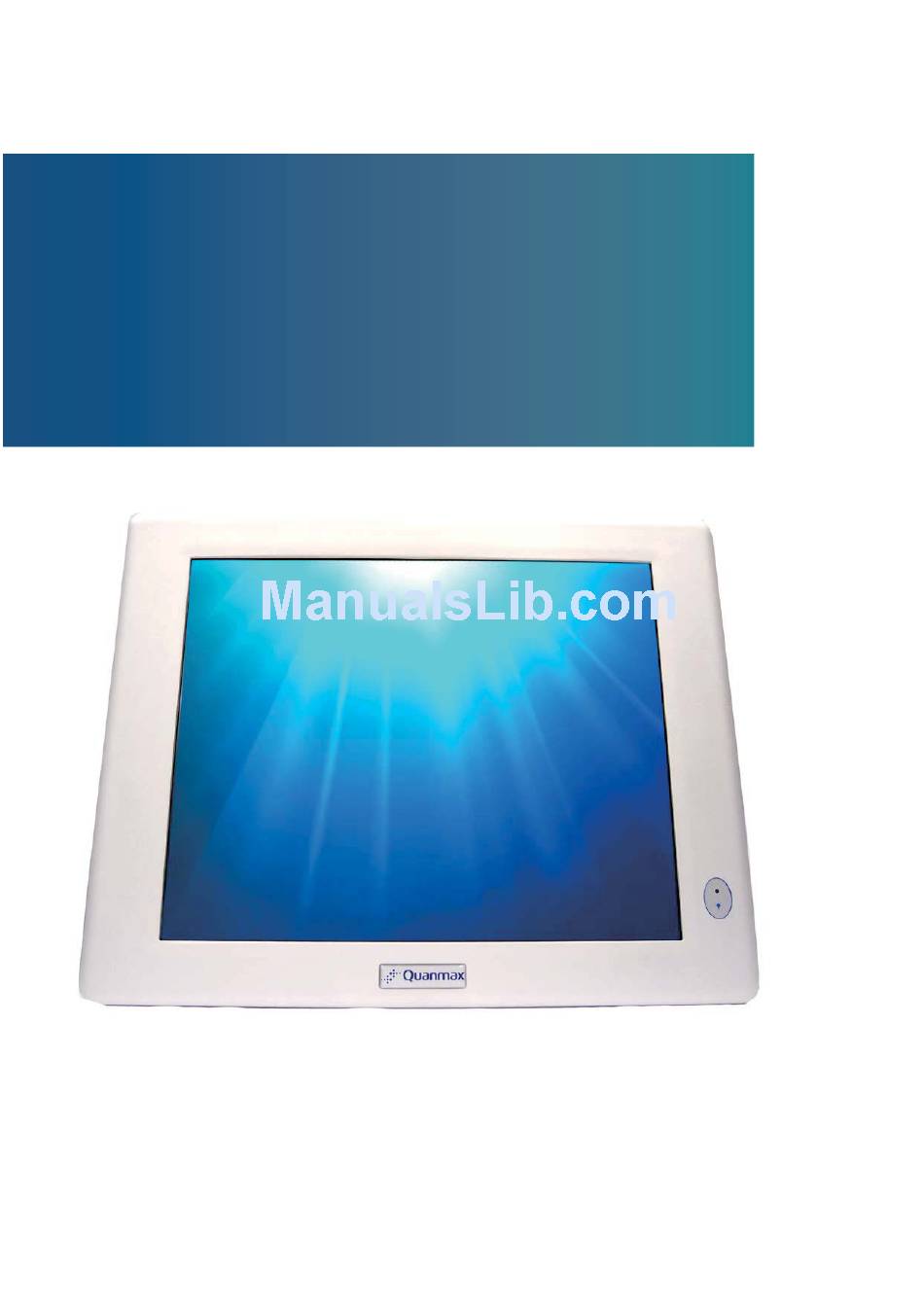

- Page 1 KPC-15B0/17B0 15” / 17” Panel PC w/ ® 4th Gen. Intel Core™ i3/ i5/ i7 / Celeron® processor User’s Guide KPC-15B0/17B0 User’s Manual...
- Page 2 Quanmax, nor the rights of others. Quanmax is a registered trademark of Quanmax. All trademarks, registered trademarks, and trade names used in this user’s guide are the property of their respective owners.
-
Page 3: Table Of Contents
Chapter 3 AMI BIOS Setup..................28 Overview..................... 28 Main Menu ..................29 Advanced Menu.................. 31 Power Menu..................43 Boot Menu ..................44 Security Menu..................45 Save & Exit Menu ................45 Chapter 4 Driver Installation .................. 47 KPC-15B0/17B0 User’s Manual... -
Page 4: Figures & Tables
Figure 8 DIO port ..................23 Figure 9 Turning on the system ..............24 Figure 10 VESA Mounting Hole Locations ..........25 Figure 11 KPC-15B0 Panel Mount Cut-out hole and maximum panel thickness..................... 26 Figure 12 KPC-17B0 Panel Mount Cut-out hole and maximum panel thickness..................... - Page 5 Table 16 Advanced Menu – DIO Configuration .......... 41 Table 17 Advanced Menu – H/W Monitor........... 42 Table 18 Power Menu ................43 Table 19 Boot Menu ................... 44 Table 20 Security Menu ................45 Table 21 Save & Exit Menu ................ 45 KPC-15B0/17B0 User’s Manual...
-
Page 6: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. Access can only be gained by service persons or by users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken;... -
Page 7: When Working Inside A Computer
Also, before connecting a cable, make sure both connectors are correctly oriented and aligned. CAUTION Do not attempt to service the system yourself except as explained in this user’s guide. Follow installation and troubleshooting instructions closely. KPC-15B0/17B0 User’s Manual... -
Page 8: Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. -
Page 9: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 10: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 11: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. - Page 12 This can cause electrical problems related to arcing and corona effects. This condition can also cause sealed components with internal pressure, such as electrolytic capacitors, to fail or perform at reduced efficiency. KPC-15B0/17B0 User’s Manual...
- Page 13 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. KPC-15B0/17B0 User’s Manual...
-
Page 14: Chapter 1 Introduction
Introduction Overview Powered by Intel® Haswell processor, the KPC-15B0/17B0 Panel PCs have excellent performance in both computing and graphics. It also reserves space for one 2.5” SATA HDD / SSD and one mSATA slot for storage expansion, OS upgrade or other data security applications. -
Page 15: Product Specifications
Op. Temp.: 0°C ~ 60°C / 32°F ~ 140°F (SSD), 0°C ~ 50°C / 32°F ~ 122°F (2.5" HDD) Storage Temp.: 0°C ~ 70°C / 32°F ~ 158°F Humidity: 0% ~ 95% Certification CE, FCC Class A Table 1 KPC-15B0/17B0 product specification KPC-15B0/17B0 User’s Manual... -
Page 16: System Tour
USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs. D-Sub 15 pin VGA connector for display output KPC-15B0/17B0 User’s Manual... - Page 17 COM1~COM2 - D-Sub 9 pin connector for RS-232/422/485 connection COM3~COM4 - D-Sub 9 pin connector for RS-232 connection Digital I/O This interface used to connect digital signals for input and output purposes. KPC-15B0/17B0 User’s Manual...
-
Page 18: Mechanical Dimensions
Chapter 1 Mechanical Dimensions KPC-15B0 410 x 315 x 82.6 mm (W x H x D) Figure 2 KPC-15B0 Mechanical Dimensions KPC-15B0/17B0 User’s Manual... -
Page 19: Figure 3 Kpc-17B0 Mechanical Dimensions
Chapter 1 KPC-17B0 442 x 354 x 93.44 mm (W x H x D) Figure 3 KPC-17B0 Mechanical Dimensions KPC-15B0/17B0 User’s Manual... -
Page 20: Chapter 2 Getting Started
Getting Started Setting up your PC Connecting the monitor Connect the DVI-D / VGA / HDMI cable from your display to the DVI-D / VGA / HDMI port. DVI-D HDMI Figure 4 DVI-D / VGA / HDMI KPC-15B0/17B0 User’s Manual... -
Page 21: Figure 5 Connect Usb Mouse & Keyboard
Chapter 2 Connecting USB mouse & keyboard Your KPC-15B0/17B0 does not come with a keyboard and mouse, but you can use any USB keyboard or mouse with your computer. Figure 5 Connect USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. -
Page 22: Figure 7 Com Ports
COM3~COM4 RS-232 Port DB-9 Signal DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready GND, ground DSR, Data set ready RTS, Request to send CTS, Clear to send Figure 7 COM ports KPC-15B0/17B0 User’s Manual... -
Page 23: Figure 8 Dio Port
DIO port DIO port with the pin definitions. Signal Signal Digital Output 0 Digital Input 0 Digital Output 1 Digital Input 1 Digital Output 2 Digital Input 2 Digital Output 3 Digital Input 3 Figure 8 DIO port KPC-15B0/17B0 User’s Manual... -
Page 24: Figure 9 Turning On The System
Chapter 2 Turning on the system Connect the power adapter cable to the DC jack (DC IN) of the KPC-15B0/17B0 Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power switch on the front panel to turn on the system... -
Page 25: Vesa Mounting
Use 4 screws with the appropriate length for your mounting bracket. Figure 10 VESA Mounting Hole Locations NOTE To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard. The VESA mounting kit is optional. KPC-15B0/17B0 User’s Manual... -
Page 26: Panel Mounting
The Panel PC can be panel mounted and comes with brackets and screws for this purpose. The required cutout for panel mounting and maximum panel thickness is shown below. Figure 11 KPC-15B0 Panel Mount Cut-out hole and maximum panel thickness Figure 12 KPC-17B0 Panel Mount Cut-out hole and maximum panel thickness KPC-15B0/17B0 User’s Manual... -
Page 27: Figure 13 Panel Mounting
Chapter 2 Below are the demonstrations of how to do panel mounting. Step1 Tightening the screws as shown right. Step2 Done Figure 13 Panel Mounting KPC-15B0/17B0 User’s Manual... -
Page 28: Chapter 3 Ami Bios Setup
This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections may vary from those of your product. For specific information on the BIOS for your product, please contact Quanmax. NOTE: The BIOS menus and selections for your product may vary from those in this chapter. -
Page 29: Main Menu
Menu provides System Overview information and allows you to set the System Time and Date. Use the “<” and “>” cursor keys to navigate between menu screens. Table 2 KPC-15B0 BIOS Main Menu BIOS SETUP UTILITY M a i n... -
Page 30: Table 3 Kpc-17B0 Bios Main Menu
+- Change Opt. Frequency 1333 Mhz F1: General Help F2: Previous Values F3: Optimized Defaults System Date [Mon 01/06/2014] F4 Save & Exit System Time [01:35:24] ESC Exit Access Level Administrator Version 2.15.1236 Copyright (C) 2012, American Megatrends, Inc. KPC-15B0/17B0 User’s Manual... -
Page 31: Advanced Menu
Version 2.15.1236 Copyright (C) 2012, American Megatrends, Inc. Onboard LAN 1 Controller Options: Disabled, Enabled Onboard LAN 1 Boot Options: Disabled, Enabled Onboard LAN 2 Controller Options: Disabled, Enabled Onboard LAN 2 Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled KPC-15B0/17B0 User’s Manual... -
Page 32: Table 5 Advanced Menu – Kpc-15B0 Display Configuration
Chapter 3 Table 5 Advanced Menu – KPC-15B0 Display Configuration BIOS SETUP UTILITY M a i n A d v a n c e d P o w e r B o o t S e c u r i t y S a v e &... -
Page 33: Table 6 Advanced Menu – Kpc-17B0 Display Configuration
Options: 32M, 64M, 96M, 128MB, 160M, 192M, 224M, 256M, 288M, 320M, 352M, 384M, 416M, 448M, 480M, 512M, 1024M DVMT Total Gfx Mem Options: 128M, 256M, MAX Primary IGFX Boot Display Options: VBIOS Default, CRT, HDMI, DVI, LVDS Active LVDS Options: Disabled, Enabled KPC-15B0/17B0 User’s Manual... -
Page 34: Table 7 Advanced Menu – Super Io Configuration
IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; Serial Port 1 Type Options: RS232, RS422, RS485 KPC-15B0/17B0 User’s Manual... -
Page 35: Table 9 Advanced Menu – Super Io Configuration – Serial Port
IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; Serial Port 2 Type Options: RS232, RS422, RS485 KPC-15B0/17B0 User’s Manual... -
Page 36: Table 10 Advanced Menu – Super Io Configuration – Serial Port
ESC Exit Version 2.15.1236 Copyright (C) 2012, American Megatrends, Inc. Serial Port Options: Disabled, Enabled Change Settings Options: Auto, IO=260h; IRQ=11; IO=260h; IRQ=10, 11, 12; IO=268h; IRQ=10, 11, 12; IO=270h; IRQ=10, 11, 12; IO=278h; IRQ=10, 11, 12; KPC-15B0/17B0 User’s Manual... -
Page 37: Configuration
ESC Exit Version 2.15.1236 Copyright (C) 2012, American Megatrends, Inc. Serial Port Options: Disabled, Enabled Change Settings Options: Auto, IO=268h; IRQ=11; IO=260h; IRQ=10, 11, 12; IO=268h; IRQ=10, 11, 12; IO=270h; IRQ=10, 11, 12; IO=278h; IRQ=10, 11, 12; KPC-15B0/17B0 User’s Manual... -
Page 38: Table 12 Advanced Menu –Cpu Chipset Configuration
ESC Exit Version 2.15.1236 Copyright (C) 2012, American Megatrends, Inc. EIST Options: Disabled, Enabled Active Processor Cores Options: All, 1 Limit CPUID Maximum Options: Disabled, Enabled Execute Disable Bit Options: Disabled, Enabled Intel Virtualization Technology Options: Disabled, Enabled KPC-15B0/17B0 User’s Manual... -
Page 39: Table 13 Advanced Menu –Sata Configuration
SATA Controller Speed Options: Default, Gen1, Gen2, Gen3 Port 1 Options: Disabled, Enabled Port 2 Options: Disabled, Enabled Port 3 Options: Disabled, Enabled Port 4 Options: Disabled, Enabled Port 5 Options: Disabled, Enabled Port 6 Options: Disabled, Enabled KPC-15B0/17B0 User’s Manual... -
Page 40: Table 14 Advanced Menu – Usb Configuration
Intel® Rapid Start Technology [Disabled] Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.15.1236 Copyright (C) 2012, American Megatrends, Inc. Intel® Rapid Start Technology Options: Disabled, Enabled KPC-15B0/17B0 User’s Manual... -
Page 41: Table 16 Advanced Menu – Dio Configuration
Version 2.15.1236 Copyright (C) 2012, American Megatrends, Inc. User Configuration Options: Disabled, Enabled DIO_1 Options: Output Low, Output High DIO_2 Options: Output Low, Output High DIO_3 Options: Output Low, Output High DIO_4 Options: Output Low, Output High KPC-15B0/17B0 User’s Manual... -
Page 42: Table 17 Advanced Menu – H/W Monitor
: 6024 RPM F2: Previous Values +VCORE : +1.744 V F3: Optimized Defaults +VIN : +11.616 V F4 Save & Exit : +5.017 V +3.3V : +3.308 V ESC Exit Version 2.15.1236 Copyright (C) 2012, American Megatrends, Inc. KPC-15B0/17B0 User’s Manual... -
Page 43: Power Menu
Options: Power Off, Power On, Last State Power Saving Mode Options: Disabled, EUP Enabled, DeepSx Enabled Resume By PCIE Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled Watchdog Timer Configuration WDT Function [Disabled] Options: Disabled, Enabled KPC-15B0/17B0 User’s Manual... -
Page 44: Boot Menu
Options: UEFI and Legacy, Legacy only, UEFI only DIMM Voltage Warning Options: Disabled, Enabled Keyboard Detect Warning Options: Enabled, Disabled Boot Option #1 Options: PO: WDC WD1600BEVT-22ZCT0, Disabled Hard Drive BBS Priorities Boot Option #1 [PO: WDC WD1600BEVT-22ZCT0] Options: PO: WDC WD1600BEVT-22ZCT0, Disabled KPC-15B0/17B0 User’s Manual... -
Page 45: Security Menu
Discard Changes and Reset Enter: Select Save Options +- Change Opt. Save Changes F1: General Help Discard Changes F2: Previous Values F3: Optimized Defaults Restore Defaults F4 Save & Exit ESC Exit Version 2.15.1236 Copyright (C) 2012, American Megatrends, Inc. KPC-15B0/17B0 User’s Manual... - Page 46 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. KPC-15B0/17B0 User’s Manual...
-
Page 47: Chapter 4 Driver Installation
You can download the drivers for the KPC-15B0/17B0 from the Quanmax website at www.quanmax.com and install as instructed there. For other operating systems, please contact Quanmax.
