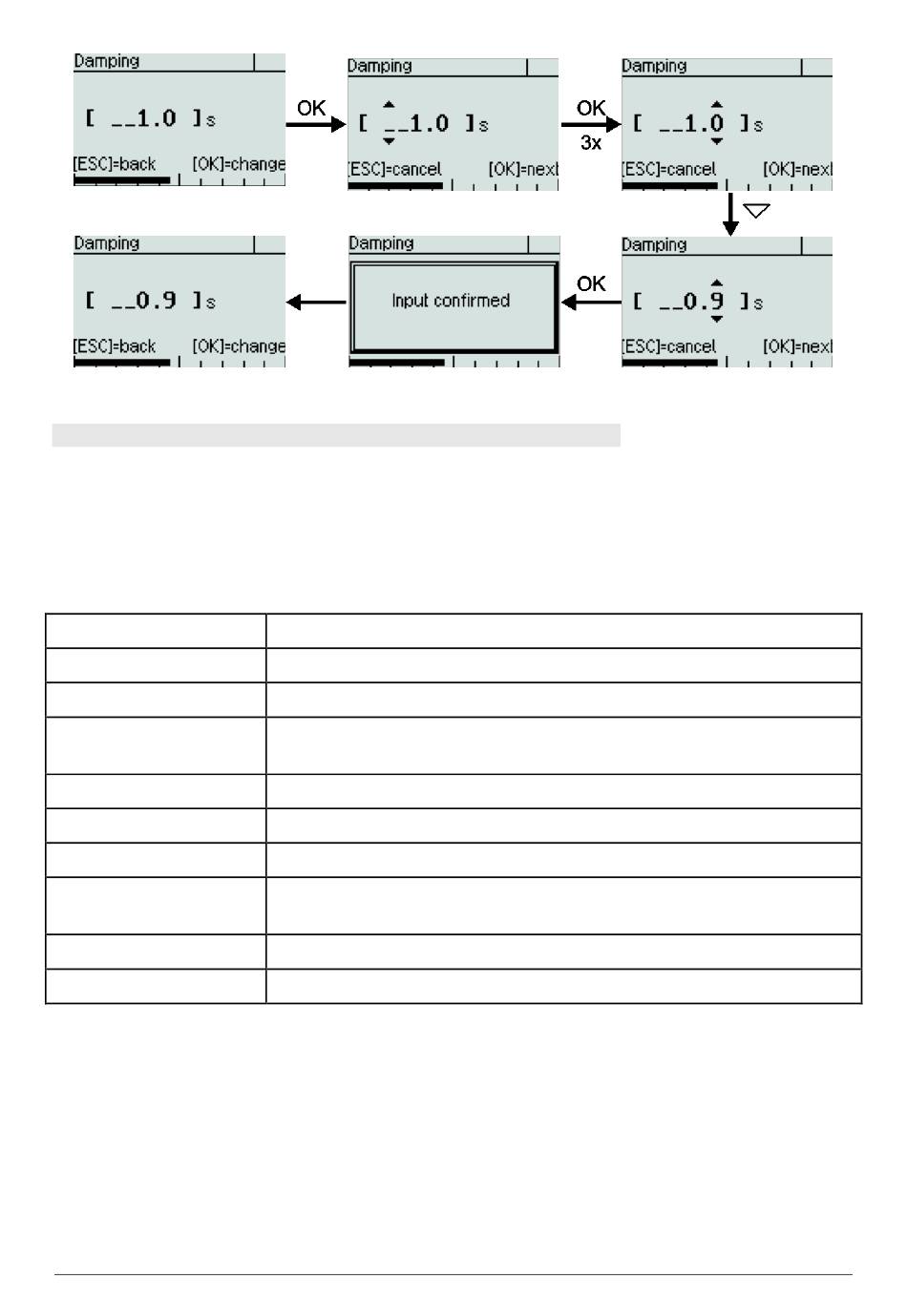

Figure 17: Procedure for setting a numeric value (e.g. from 1.0 to 0.9)
6.5

The Menue Tree

In the following, the display and adjustment options are described by their position in the
menue tree. An overview of the menue tree can be found on the last page of this docu-
ment.
6.5.1 Main menue
The main menue has the following entries:
Menue entry
Quick setup
Level
Adjustment
Display
Measurement/output
Diagnosis
Simulation
Communication
System
BA_078_en_10.01 Level transmitter PASCAL Ci4 LEVEL
Description
Selection of the most important settings
Parameterisation of level measurement
Adjustment functions for pressure measurement and current out-
put
Functions for configuring the display
Configuration of the measuring rate, damping and current output
Diagnostic information such as min/max values
Simulation of current or one of the possible measurands for func-
tion check of the measurement chain
Information and settings regarding HART communication
Device data and function such as factory reset
Table 6: The main menue
Page 18/36
