Operating Instructions

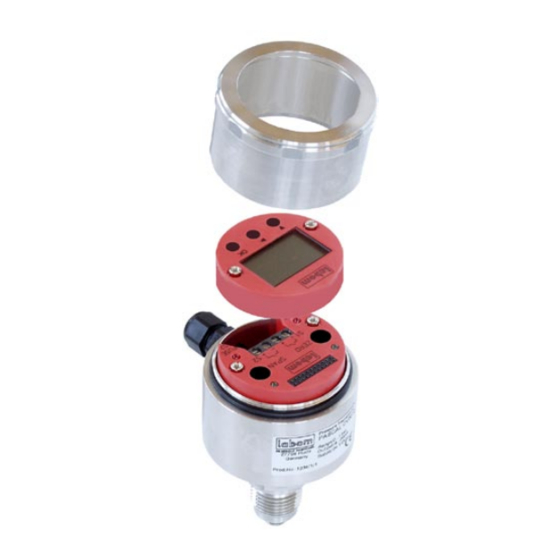

Changing the module in the PASCAL CV pressure transmitter
Changing the module in the PASCAL CV pressure transmitter
Disassembling the basic module
Assembling the basic module
Placing the basic module in service after assembly
Disassembling the switching module
Assembling the switching module
Placing the switching module in service after assembly page 4 Placing the profibus module in service after assembly page 7
Note:
Assembly and installation work on modules must only be performed with the supply voltage switched off!
Electrical apparatus in explosive/hazardous areas may only be installed and operated by properly trained
personnel. Modifications to devices and electrical connections will eliminate the operational safety/reliability,
remove explosion protection and also void the warranty. Be sure to note the limit values in the EC examination
certificate.
Further information required ? Hotline +49 (0) 4408 804-444
www.pascal-cv.com
LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Germany
Hotline: +45 4408 804-444 Fax: +49 4408 804-100 e-mail: sales@labom.com www.labom.com
LABOM Mess- und Regeltechnik GmbH · P.O. Box 12 62 · 27795 Hude · Germany · Im Gewerbepark 13 · 27798 Hude · Germany
Changing the module
■ These operating instructions describe the installation and
■ All work on transmitters must only be performed with the
■ Be aware that pressure transmitters that are located in a
■ This installation work must only be performed with suitable
■ The transmitters located in different terminating points
■ In addition to these operating instructions, other information
■ Separate instructions are available for installing and
Basic modules
switiching module
4...20 mA
PROFIBUS PA
page 2 Disassembling the display module
page 3 Assembling the display module
page 3 Placing the display module in service after assembly
page 4 Disassembling the profibus module
page 4 Assembling the profibus module
removal of modules. This may be necessary when modules
are expanded or exchanged.
supply voltage switched off. This also applies even when
expanding modules by simply plugging another one in.
process represent a particular danger since they are under
pressure. If at all possible, perform work on the pressure
transmitter in a depressurized state.
tools.
will have different types of equipment fitted to them. For
this reason, be sure to note the different steps governing
their installation and removal.
such as statutory requirements, applicable standards,
supplemental technical specifications in data sheets, details
on the model plate and associated certificates will also apply.
operating the PASCAL CV pressure transmitter.
Function modules
HART
-module
®
Operating Instruction BA_045_2019-08_10.00
Display module
page 5
page 5
page 5
page 6
page 7
BTA-No. 045 Rev. 0G6
Page 1/7
Advertisement
Table of Contents
Related Manuals for Labom PASCAL CV
Summary of Contents for Labom PASCAL CV

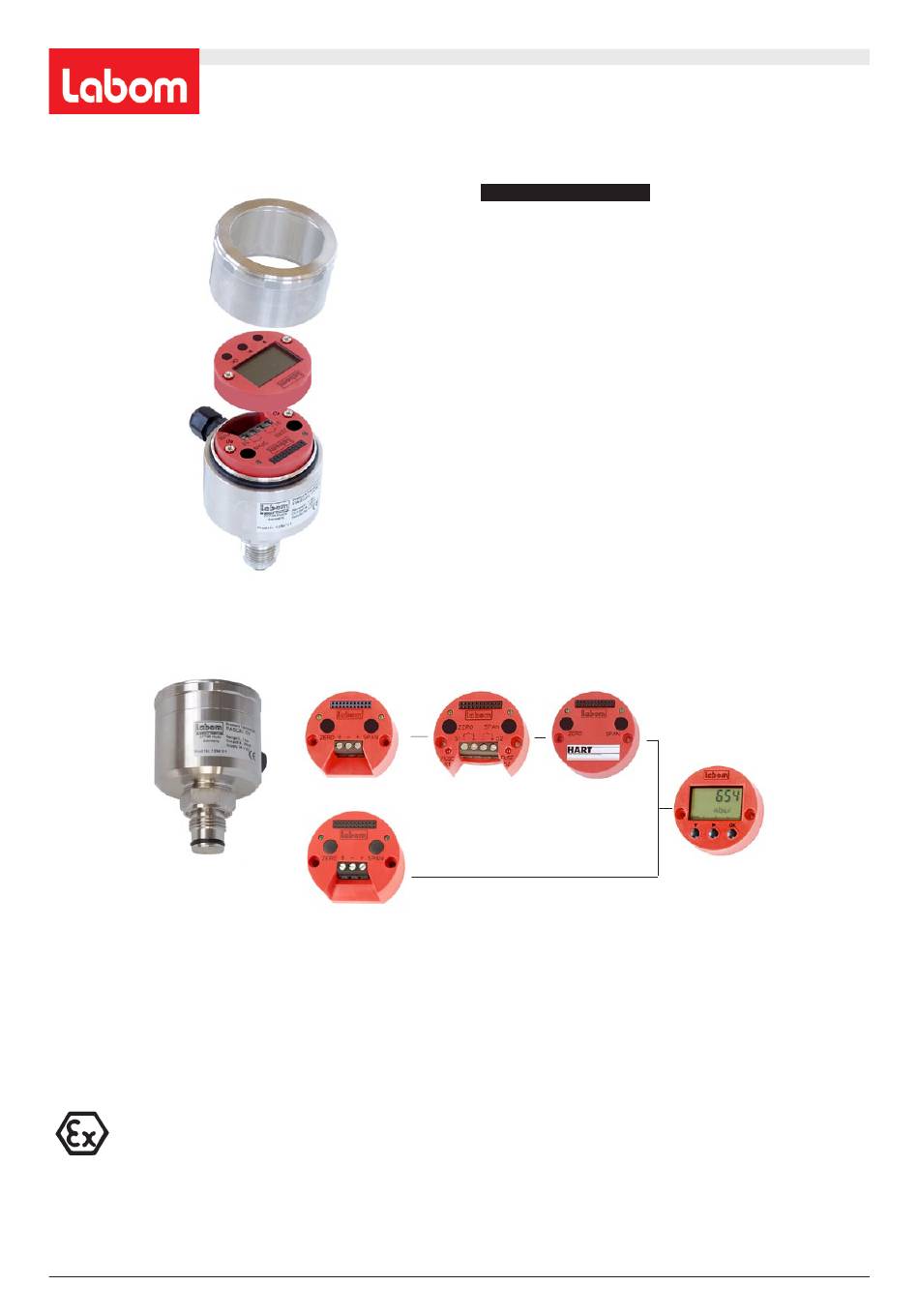

- Page 1 Operating Instruction BA_045_2019-08_10.00 Hotline: +45 4408 804-444 Fax: +49 4408 804-100 e-mail: sales@labom.com www.labom.com Page 1/7 LABOM Mess- und Regeltechnik GmbH · P.O. Box 12 62 · 27795 Hude · Germany · Im Gewerbepark 13 · 27798 Hude · Germany...
- Page 2 fingers since dirt (grease, moisture) and electrostatic discharge could damage the device. The sealing washer below the basic module can remain in the device housing. Fig. 4 BTA-No. 045 page 2 Operating Instructions BA_045_2019-08_10.00 Changing module in PASCAL CV pressure transmitter Page 2/7...
- Page 3 The SPAN LED will flash once to confirm the transfer of the new upper range value. 1.0 bar 4.0 mA lower range value 2.5 bar 100% 20.0 mA upper range value BTA-No. 045 page 3 Operating Instructions BA_045_2019-08_10.00 Changing module in PASCAL CV pressure transmitter Page 3/7...
- Page 4 (Fig. 2). - Carefully lift the switching module up and out of the housing. Assembling the switching module When adding a switching module to the PASCAL CV, follow Step 1 (above) and Fig. 2 Steps 3 and 4 (below).
- Page 5 - After the installation work is completed, switch on the supply voltage. - After a short period of time the device will display the manufacturer’s name “Labom” (Fig. 4). - After this, the display switches to the currently measured pressure value (Fig. 5).
- Page 6 fingers since dirt (grease, moisture) and electrostatic discharge could damage the device. The sealing washer below the basic module can remain in the device housing. Fig. 4 BTA-No. 045 page 6 Operating Instructions BA_045_2019-08_10.00 Changing module in PASCAL CV pressure transmitter Page 6/7...
- Page 7 The default address is 126. It must be set to the previous address prior to transmitting the parameters. This can be done with a mounted display module (see operating instruction BTA-043, page 17) or via PDM. BTA-No. 045 page 7 Operating Instructions BA_045_2019-08_10.00 Changing module in PASCAL CV pressure transmitter Page 7/7...
