6.7

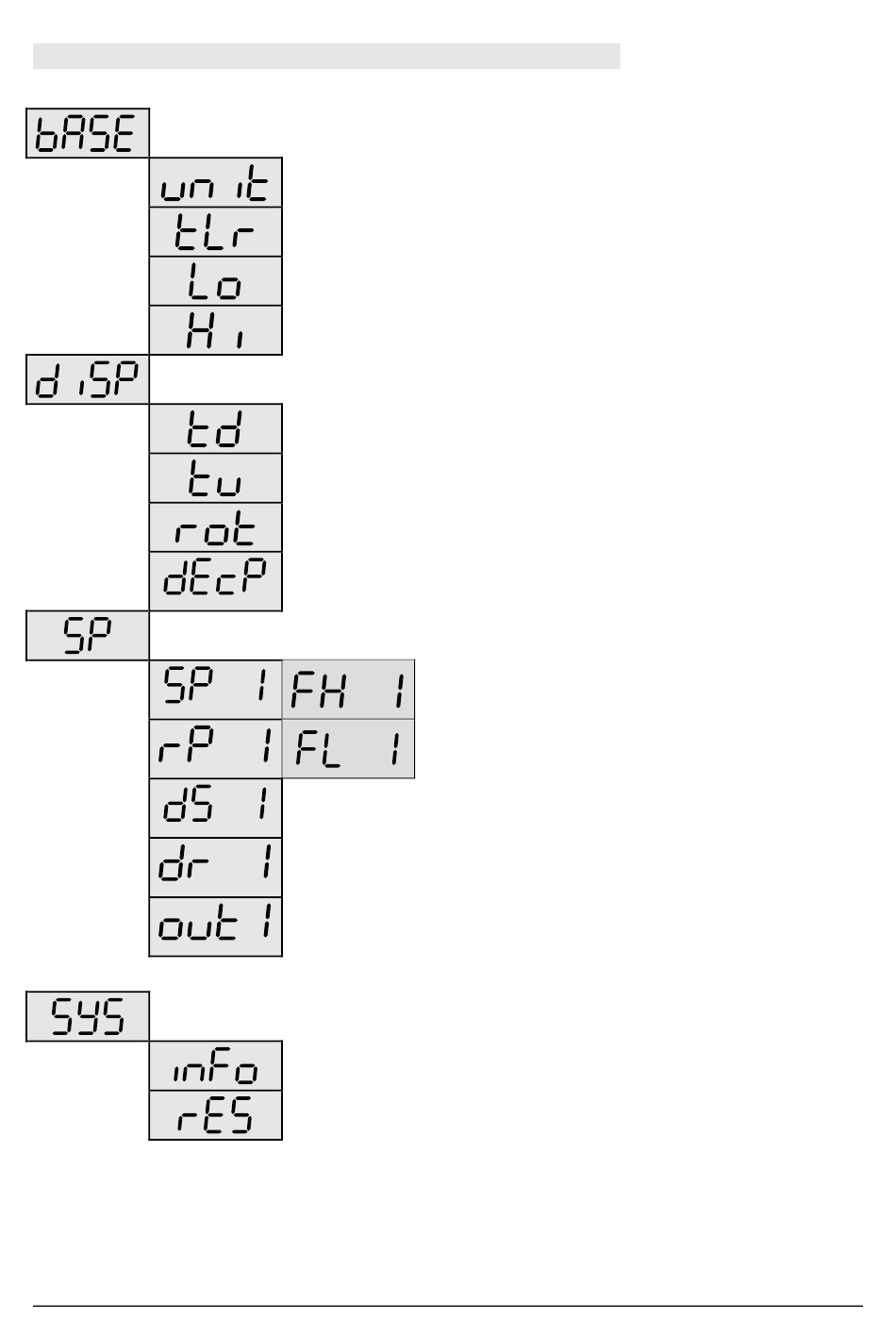

Overview of the Menue Tree

Main Menue Sub Menue
Menue items for the second switching output
BA_060 Rev 1B6 Pressure transmitter PASCAL CS
Description
Menue with basic functions
Setting the measuring unit (bar, mbar, PSI, %, kPa, MPa, mA)
Setting the zero point to the applied pressure
Display resp. delete the min. pointer
Display resp. delete the max. pointer
All settings relating to the display
Setting the display period for the measured value
Setting the display period for the unit
Display direction (0° = normal, 180° = rotated)°
Setting the decimal places (zero to three fixed decimal places
or automatic)
Configuring the switching outputs (only if available)
Switch-point or upper frame limit of the first
switching output
Reset-point or lower frame limit of the first
switching output
Output delay at the switch point of the first
switching output
Output delay at the reset point of the first
switching output
Output function of the first switching output
(Hno, Hnc, Fno, Fnc)
System information and reset
Hard- and software versions, serial number
Reset to factory settings
Table 17: Overview of the menue tree
