2.5.

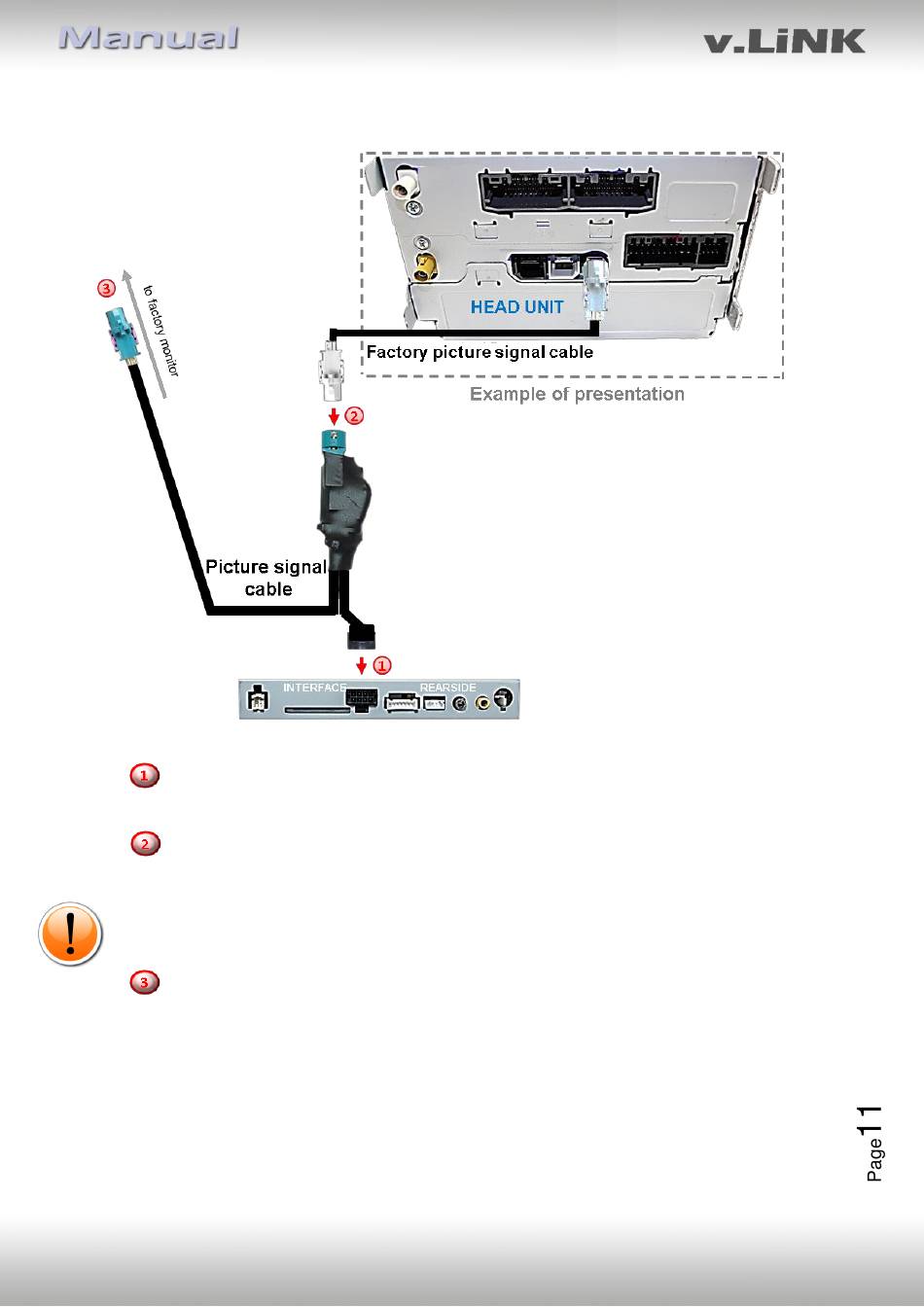

Connection - picture signal cable
Connect the enclosed picture signal cable's female 8pin connector to the male 8pin
connector of the video interface.
Disconnect the factory picture signal cable's female 4pin HSD connector at the rear
side of the factory monitor and connect it to the waterblue colored male 4pin HSD
connector of the enclosed picture signal cable.
Attention: The factory picture signal cable doesn't have to be disconnected for the installation!
Connect the picture signal cable's waterblue coloured female 4pin HSD connector to
the previously become free white coloured male 4pin HSD connector at the rear side
of the factory monitor
Version 25.09.2019
HW: 25-10
VL2-MTC
