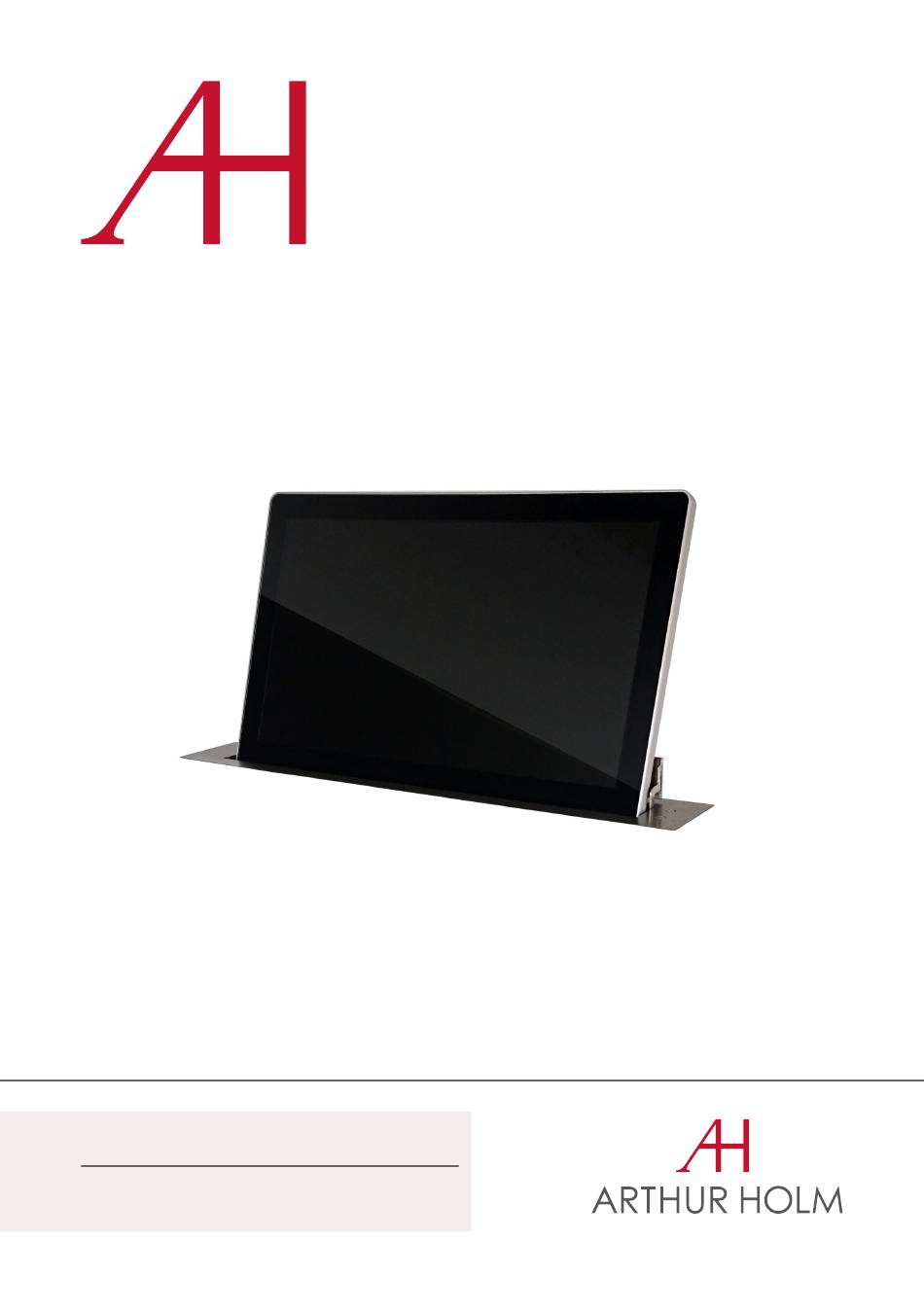

- Page 1 User Guide AH24D X24KGA HDCP compliant retractable monitors for furniture integration Technology Serving Desing Danish craftmanship Mediterranean soul...
-
Page 3: Table Of Contents
TABLE OF CONTENTS EC REGULATIONS AND SECURITY SAFETY INSTRUCTIONS SYSTEM DESCRIPTION CONTROLS OSD MENU INPUT CONNECTORS PACKING INSTRUCTIONS WARNING AHNET PROTOCOL INPUT SIGNALS INFORMATION ON DISPOSAL WARRANTY TERMS AND CONDITIONS... - Page 4 WELCOME Thank you for purchasing an ARTHUR HOLM product. Our product range has been designed for a seamless integration and for a maximum reliability. Please, read this installation and operating instructions carefully and keep them in a safe place for future reference.
- Page 5 ABOUT US The Company Arthur Holm has its origins in the Danish furniture designer Jorgen Alex Jensen, who was active during the sixties and the seventies. His design inspiration and his concept of ergonomics have been continued by his family, who is the design force behind Arthur Holm product range. The...
-
Page 6: Ec Regulations And Security
EC REGULATIONS AND SECURITY ATTENTION: Do not disassemble or modify the device in any way. This symbol warns of the presence of dangerous un-insulated voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock. This symbol draws attention to important use and maintenance instructions in the manual that accompanies the unit. - Page 7 SAFETY INSTRUCTIONS Wiring connected to hazardous voltage requires installation by qualified personnel or the use of ready-made flexible cables. For your security, your equipment must be connected to an electrical outlet with grounding connection protection. Since the plug is used to disconnect the device, the operating electrical outlet must be in an easily accessible place.
-
Page 8: System Description
SYSTEM DESCRIPTION Applications The DynamicX2 system is a professional TFT display with an elegant housing and an electrical lift system for installation into an horizontal furniture surface. On the starting position (retracted), the screen is placed inside the table leaving the desk free of any obtrusive elements. When in this position, the power will automatically be disconnected in order to save energy and preserve panel life. - Page 9 SYSTEM DESCRIPTION Box Contents Before the installation of your retractable monitor, please check the contents of the shipping box, it must contain the following items: • Monitor • Power cord • Power supply 100-240Vac, 50-60Hz. Output 12V • Remote control (1 per 5 monitors) •...
-
Page 10: Controls
CONTROLS Remote IR control POWER Switch ON/OFF the monitor MENU Activates the OSD menu on screen Cursor control up on the OSD menu DOWN Cursor control down on the OSD menu LEFT Cursor control left on the OSD menu RIGHT Cursor control right on the OSD menu Selects the function on the OSD menu. - Page 11 CONTROLS IR sensor The IR sensor is located on the lower right side of the screen. Monitor movement controls On the upper cover plate, there are two buttons to control the UP and DOWN monitor movements. 2. UP BUTTON CONTROL 1.
-
Page 12: Osd Menu
OSD MENU Accessing the menu system • With the OSD off, push the MENU button to activate the main OSD menu. • Press the UP and DOWN buttons to move from one function to another. Please refer to the following sections below to view a complete list of all the functions available for the monitor. - Page 13 OSD MENU Advance ASPECT RATIO: Adjust the image aspect ratio on screen (Full, 16:9, 4:3, 5:4, 1:1) Over Scan: ON, OFF Over Drive: ON/OFF, OD Gain DDCCI: ON, OFF DP OPTION: Configure the DP input signal (D0: 1.1, 1.2 / D1: 1.1, 1.2) DP Option: OFF, D0, D1 DP MST OFF, D0 D1 Clone Mode: OFF, ON...
-
Page 14: Input Connectors
INPUT CONNECTORS 12V D.C.: Power supply input connector. XLR-4 connector. - 1,2: Ground - 3,4: 12Vdc GPI: Monitor external contact close control. SubD9 female. 1 . GPI1 + 2. GPI1 – 3. GPI2 + 4. GPI2 – 5. GPI3 – 6. -
Page 15: Packing Instructions
PACKING INSTRUCTIONS ATTENTION ! Albiral Display Solutions, s.l. c/Fátima 25, 08512 BCN - Spain tel. +34 938 502 376 www.arthurholm.com /www.albiral.com Thank you for purchasing our product, we hope you are completely satisfied with it. If you have any questions you can contact us by email customersupport@arthurholm.com or by phone +34 938 502 376 office hours 9am - 2pm &... -
Page 16: Warning
WARNING Do not use the unit in horizontal position. It could damage the mechanical parts of the monitor. Do not use force to open or close the monitor. It could damage the mechanical parts of the monitor. Use this device only with the supplied accessories. The use of unapproved accessories, as a power supply unit, will invalid the warranty. -
Page 17: Ahnet Protocol
AHNET PROTOCOL Communications protocol COMMUNICATION RS422 CONNECTION RJ45 WIRING CAT-5 Speed and configuration BAUD RATE 38400 DATA BITS PARITY NONE STOP BITS Wiring Diagram 1. Data TX + 2. Data TX – 3. Data RX + 4. NC 5. NC 6 .Data RX RJ-45 7. - Page 18 AHNET PROTOCOL AHnet protocol Using 5 bytes communication: BYTE 0 START BYTE BYTE 1 ADDRESS BYTE BYTE 2 COMMAND BYTE BYTE 3 VALUE 1 BYTE 4 VALUE 2 Commands COMMAND DESCRIPTION RESPONSE FA XX 01 01 00 GO UP FB XX 01 01 00 FA XX 01 00 00 GO DOWN FB XX 01 00 00...
- Page 19 AHNET PROTOCOL BITE CLOSED OPENED SCREEN ON SCREEN OFF HDMI1 HDMI2 PROTECTION STOP MONITOR OK BITE BUTTON LOCK BUTTON UNLOCK To send an order to all the monitors, you must use the address: 249 Dec. (Byte1) F9 Hex. (Byte1) In this case, the units do not send a reply.
- Page 20 AHNET PROTOCOL Picture Commands COMMAND DESCRIPTION RESPONSE FA XX 15 00 00 ASK FOR BACKLIGHT LEVEL FB XX 15 00 ZZ FA XX 16 00 00 ASK FOR CONTRAST LEVEL FB XX 16 00 ZZ FA XX 17 00 00 ASK FOR BRIGHTNESS LEVEL FB XX 17 00 ZZ Number of the monitor address.
-
Page 21: Input Signals
INPUT SIGNALS Resolution Pixel Scanning Scanning VESA 640*350 31.500 85.080 37.861 640*400 25.175 59.940 31.469 VESA 640*400 31.500 85.080 37.861 640*480 25.175 59.940 31.469 VESA 640*480 25.200 60.000 31.500 VESA 640*480 31.500 72.809 37.861 VESA 640*480 31.500 75.000 37.500 VESA 640*480 36.000 85.008... -
Page 22: Information On Disposal
INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL & ELECTRONIC EQUIPMENT This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to the designated collection points, where they will be accepted on a free of charge basis. -
Page 23: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS Albiral Display Solutions warrants this product against manufacturing defects and workmanship for a period of five (5) years from the date of purchase, subject to the conditions below. Mechanical parts: The engine and the product’s mechanical parts are warranted against manufacturing defects and workmanship for a period of five (5) years from the date of purchase. - Page 24 If you have any doubts concerning the terms of this warranty, please contact: business@albiral.com +34 938 502 376 Copyright © Dec. 2019. All rights reserved Albiral Display Solutions SL. Registered trademarks: Albiral, Arthur Holm, Pixtron Broadcast...
- Page 26 Patents P27178ITEP P27178RUPC MU17180ES00 P27178USPC MU17301ES00 P27284DEEP MU17322ES00 P27284EPPC MU17413ES00 P27284ESEP MU17445ES00 P27284GBEP MU17854ES00 P27284RUPC MU17868DEPC P27284USPC MU17868RUPC P27715ESEP P24821DEEP P28089DEEP P24821ESEP P28089ESEP P24821GBEP Fàtima 25, Sant Hipòlit de Voltregà P28089ITEP P24821USPC 08512 Barcelona – Spain P28089USPC P27178DEEP tel: +34 93 850 23 76 / 23 83 P28090EP00 P27178EPDV01 fax: +34 93 850 25 50 / 23 72...
