Lock
Body
1..Attach.bracket.to.wood.overlay
2..Insert.lock.body
3..Add.and.tighten.nut
4..Add.lock.strike
5..Add.lock.washer.and.screw
6..Use.key.to.turn.the.lock.and.verify.that.the.lock.and.unlock.positions.of.the.strike.are.correct.
(unlock.should.be.up).(lock.should.be.horizontal)
7..Adjust.lock.if.necessary
8..Attached.overlay.with.lock.assembly.to.the.door.assembly
9..Attach.lock.bracket.to.unit
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice
18" SHALLOW DEPTH SERIES
Operation / Installation Manual
Bracket
Nut
Lock Strike
Lock Washer
Screw
Lock
Bracket
9

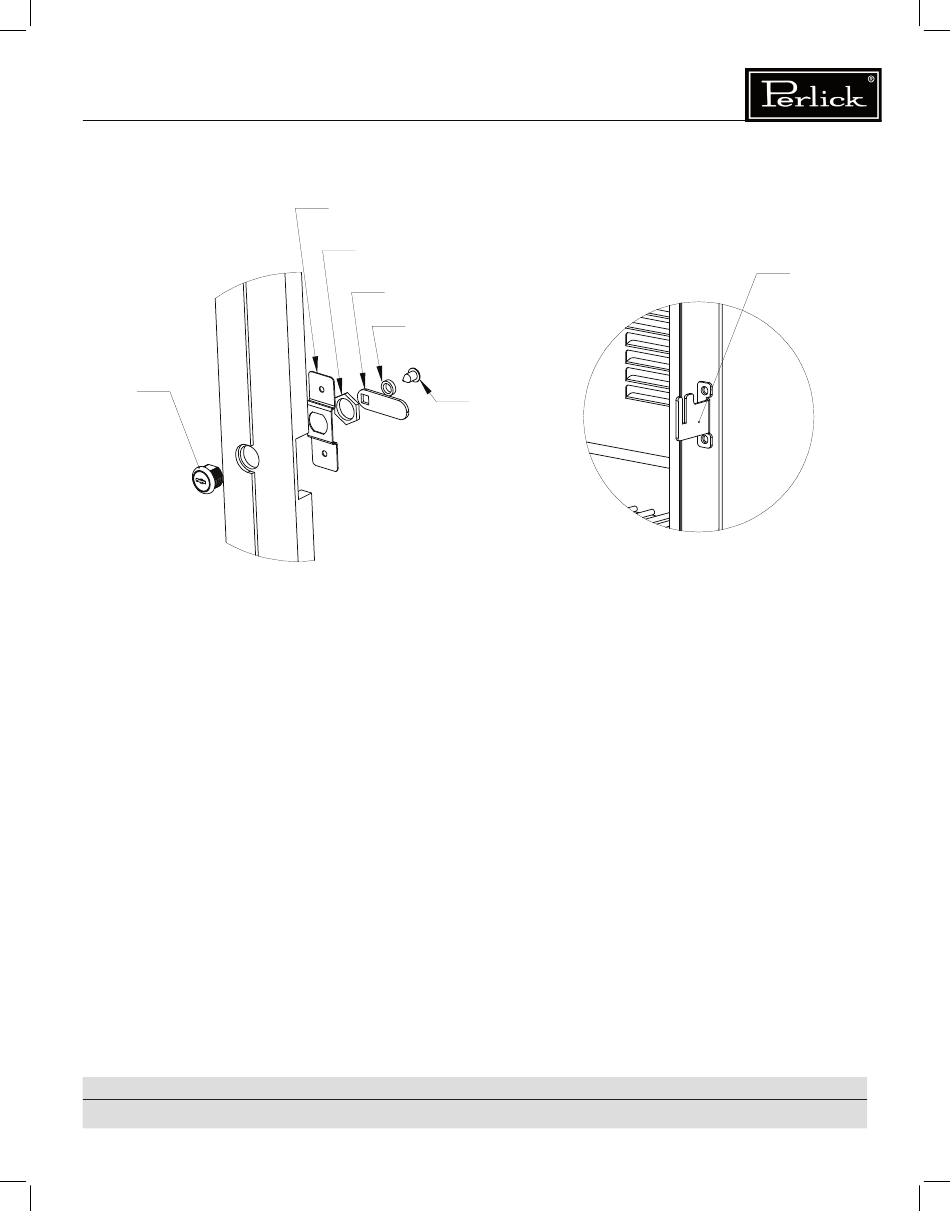

Figure 6. Door Lock Installation
Lock
Bracket
