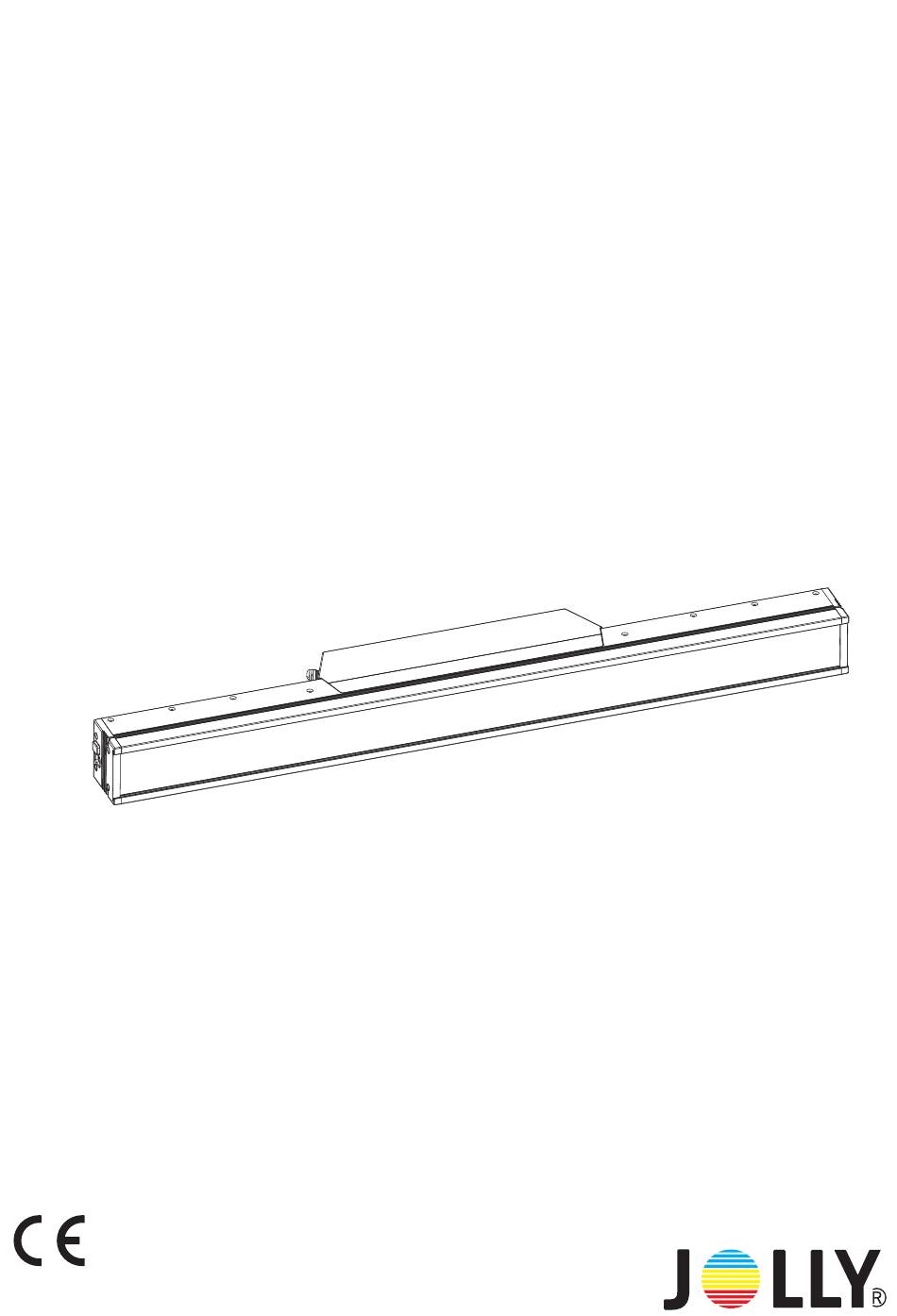

- Page 1 LT-300 PS USER MANUAL Version:1.0...
-
Page 3: Table Of Contents
Table of content 1.Open-Package guidelines............... １.１Package....................1 2.Safety instructions..................1 3.Operating determination.................2 4.Rigging the fixture...................3 4.1 Mounting.....................3 4.2Installing the Clamps................3 4.3 Power supply connection and cut off...........4 4.4 Power Connection................4 4.5 DMX-512 connection/connection between fixtures......4 Description of the device............ - Page 4 Congratulations on choosing our products! Please carefully read this instruction manual in its entirety and keep it well for using reference. This manual contained about the installation and the relative using information of this products. Plese refere this manual's relative instruction when using this equipment.
-
Page 5: Open-Package Guidelines
1.Open-Package guidelines This equipment is made of new style,high intensity plastic.It fully shows the modem times light charac teris- tic with teristic with beauty struture. And it is made accord to CE standard. Fully agree with the internation standard of DMX 512 agreement. -
Page 6: Operating Determination
Minimum distance of illuminated objects 0.8m The projector needs to be positioned so that the objects hit by the beam of light are at least 0.80 metres from the lens of the projector. Maximum ambient temperature ° C t 45 Do not operate the fixture if the ambient temperatuer(Ta) exceeds 45°... -
Page 7: Rigging The Fixture
The minimum distance between light output and the illuminated surface must be more than 0.2 meters. Make sure that the area below the installation place is blocked when rigging,derigging or servicing the fixture. Always fix the fixture with an appropriate safety rope, Fix the safety rope at the correct holes only. Operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastend. -
Page 8: Power Supply Connection And Cut Off
The projector should be installed outside areas where persons m ay walk by or be seated. Important!Overhead rigging requires extensive expering CE,including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all installation ma- terial and the projector. - Page 9 DMX512 Max loop 3 fixture at 110V, Max loop 6 fixture at 240V. Caution At the last fixture,the DMX-cable has to be terminated with a terminatou. solder a 120 resistor between signal(-) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture. DMX output DMX iutput 3-pin XLR socket...
-
Page 10: Description Of The Device
5.Description of the device Power-In 3-pin XLR male 3.3-pin XLR female Power-Out ENTER button DOWN button UP button MODE button LED display 10.Respirator 6.Dimension 142mm 85mm 1008mm 78mm - 6 -... -
Page 11: Display Control
7.Display control 7.1 Navigation in the Menu Using the buttons, and this can be simply and easily set the address code and function code. If you view or modify the lighting feature set, then press ENTER button, the display will enter the menu interface. - Page 12 0-255 Green 0-255 Blue 0-255 White 0-255 Preset CCTs 0-255 Shutter 0-255 Dimmer 0-255 Shape Selection 0-255 Static Mode Shape Speed 0-255 Shape Fade 0-255 Shape R 0-255 Shape G 0-255 Shape B 0-255 Shape W 0-255 Shape Shutter 0-255 Shape Dimmer 0-255 Reset All...
-
Page 13: Dmx Protocol
8.DMX protocol Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 Fade Type Function Dmx Value 0→100% 0 - 255 Red fine 0→100% 0 - 255 Green 0→100% 0 - 255 Green fine 0→100% 0 - 255 Blue 0→100% 0 - 255... - Page 14 Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 Fade Type Function Dmx Value Ramp Up 48 - 79 Ramp Down 80 - 111 Ramp Up & Ramp Down 112 - 143 Shutter Strobe (Slow1hz->Fast25hz) 144 - 239 Close 240 - 249 Open...
- Page 15 Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 Fade Type Function Dmx Value Shape Speed Pattern 1 Speed 0-100% 0 - 255 Shape Fade Pattern 1 Fade 0-100% 0 - 255 Shape Red Pattern 1 Red 0-100% 0 - 255 Shape Green...
-
Page 16: Maintance And Cleaning
9.Maintance and cleaning DANGER:Disconnect from the mains before starting any maintenance work. It is absolutely essential that the fixture is kept clean and that dust,dirt and smoke fluid residues must not buildup on or within the fixture. Otherwise, the fixtures light-output will be significantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably through out its life. -
Page 17: Electric Equipment Specification
10.Electric equipment specification 10.1 Electrical paramters SOURCE: R 240 LED 1W+ G 240 LED 1W+B 240 LED 1W+W 240 LED 1W Max POWER:600 VOLTAGE: AC100-240V 50/60HZ Color temperature：6500K(W) 10.2 Weight and dimensions Dimensions： 1008X142X85mm NET WEIGHT:10Kg 10.3 Channel Characteristics 1.Ch annel:9、13、18、74、4、60 DMX -512. 2. -
Page 18: Electronic Drawing
11.Electronic drawing 灯板A背面 灯板B背面 驱动板 LED Control Board Displayer Board Note: The above contents for reference only and is subject to change without prior notice, please take specification you have on hand and our company reserves the final right of interpretation. - 14 -... - Page 20 ht tp: //www.jol lyl ight ing. com Guangzhou hongcai stage equipment Co.,Ltd Tel:+862084558833 Fax:+862084559699 Email:info@jollylighting.com P.C:511450 Add:No.30,Changsha Street, Shachong Village,shiji Tow.Panyu District,Guangzhou,China...
