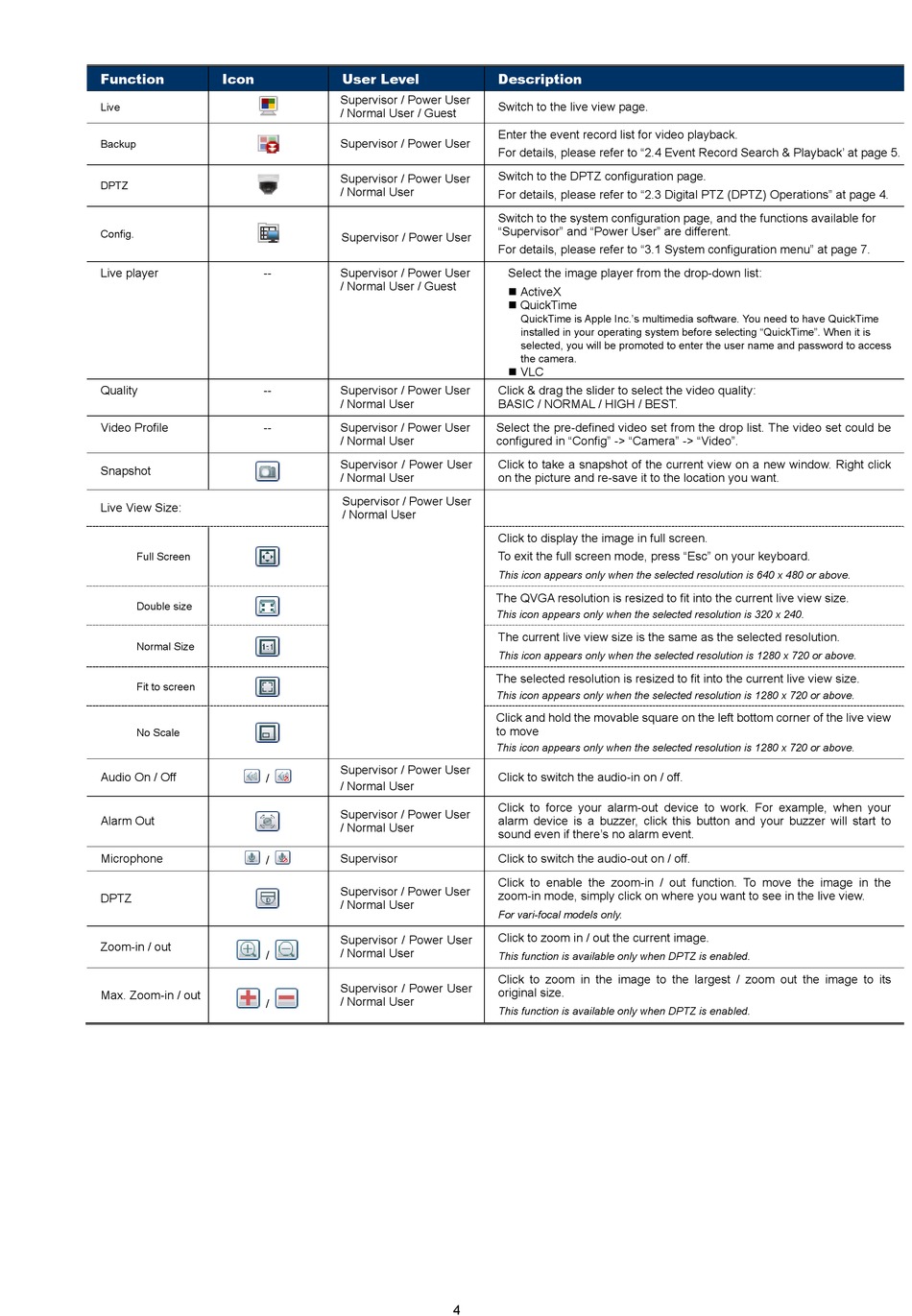

Avtech IC-AVM2421 Operation Manual page 9

Function Icon
Live
Backup
DPTZ
Config.
Live player --
Quality --
Video Profile --
Snapshot
Live View Size:
Full Screen
Double size
Normal Size
Fit to screen
No Scale
Audio On / Off
/
Alarm Out
Microphone
/
DPTZ
Zoom-in / out
/
Max. Zoom-in / out
/
User Level Description
Supervisor / Power User
Switch to the live view page.
/ Normal User / Guest
Enter the event record list for video playback.
Supervisor / Power User
For details, please refer to "2.4 Event Record Search & Playback' at page 5.
Switch to the DPTZ configuration page.
Supervisor / Power User
/ Normal User
For details, please refer to "2.3 Digital PTZ (DPTZ) Operations" at page 4.
Switch to the system configuration page, and the functions available for
"Supervisor" and "Power User" are different.
Supervisor / Power User
For details, please refer to "3.1 System configuration menu" at page 7.
Supervisor / Power User Select the image player from the drop-down list:
/ Normal User / Guest
 ActiveX
 QuickTime
 VLC
Supervisor / Power User Click & drag the slider to select the video quality:
/ Normal User BASIC / NORMAL / HIGH / BEST.
Supervisor / Power User Select the pre-defined video set from the drop list. The video set could be
/ Normal User configured in "Config" -> "Camera" -> "Video".
Supervisor / Power User Click to take a snapshot of the current view on a new window. Right click
/ Normal User on the picture and re-save it to the location you want.
Supervisor / Power User
/ Normal User
Click to display the image in full screen.
To exit the full screen mode, press "Esc" on your keyboard.
This icon appears only when the selected resolution is 640 x 480 or above.
The QVGA resolution is resized to fit into the current live view size.
This icon appears only when the selected resolution is 320 x 240.
The current live view size is the same as the selected resolution.
This icon appears only when the selected resolution is 1280 x 720 or above.
The selected resolution is resized to fit into the current live view size.
This icon appears only when the selected resolution is 1280 x 720 or above.
Click and hold the movable square on the left bottom corner of the live view
to move
This icon appears only when the selected resolution is 1280 x 720 or above.
Supervisor / Power User
Click to switch the audio-in on / off.
/ Normal User
Click to force your alarm-out device to work. For example, when your
Supervisor / Power User
alarm device is a buzzer, click this button and your buzzer will start to
/ Normal User
sound even if there's no alarm event.
Supervisor Click to switch the audio-out on / off.
Click to enable the zoom-in / out function. To move the image in the
Supervisor / Power User
zoom-in mode, simply click on where you want to see in the live view.
/ Normal User
For vari-focal models only.
Click to zoom in / out the current image.
Supervisor / Power User
/ Normal User
This function is available only when DPTZ is enabled.
Click to zoom in the image to the largest / zoom out the image to its
Supervisor / Power User
original size.
/ Normal User
This function is available only when DPTZ is enabled.
4
QuickTime is Apple Inc.'s multimedia software. You need to have QuickTime
installed in your operating system before selecting "QuickTime". When it is
selected, you will be promoted to enter the user name and password to access
the camera.
