Item#: 5291-75410 Wood Back Side Chair-2 per carton
** Please make sure you have all parts indicated below prior to assembly.

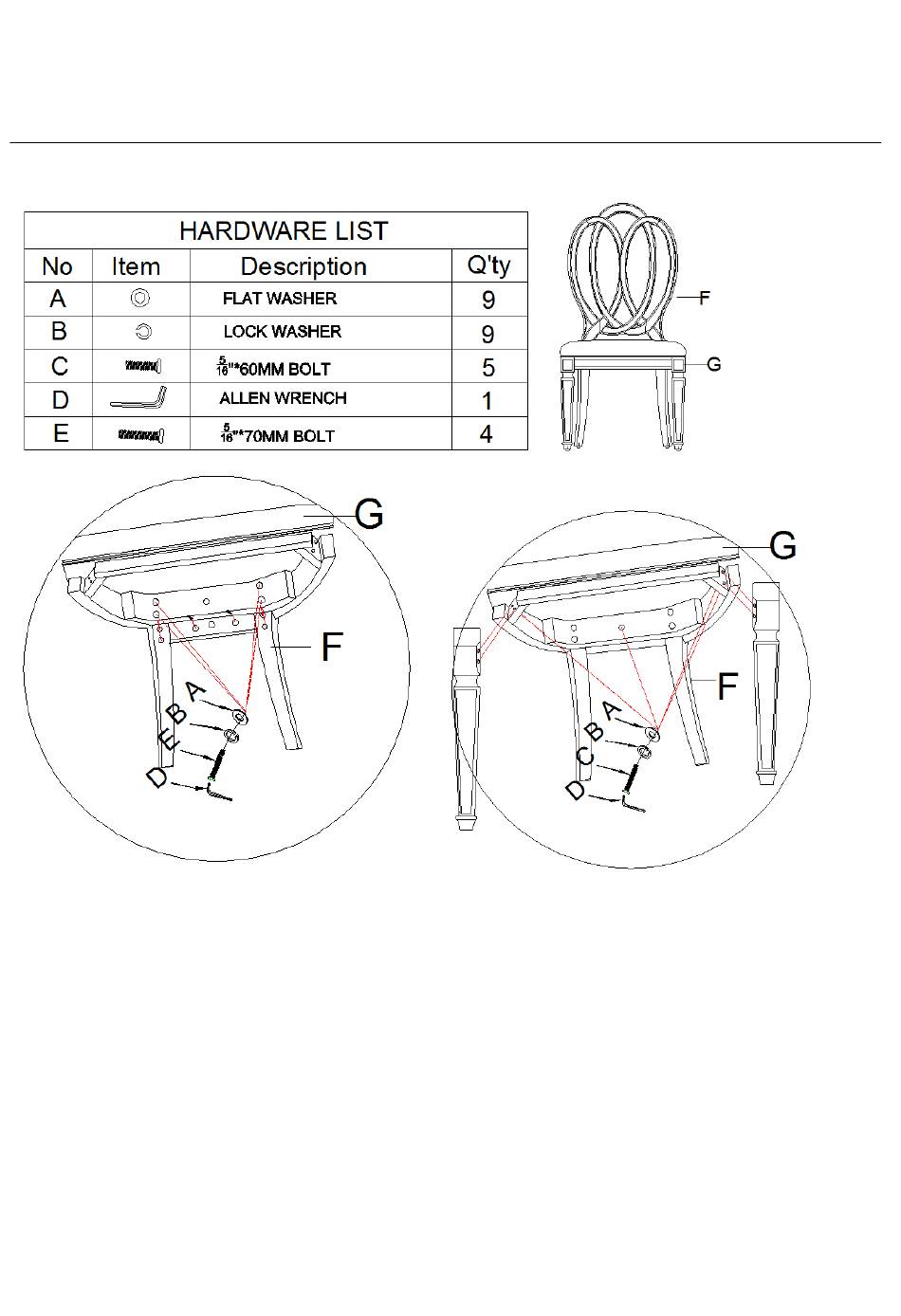

Diagram 1
Assembly Steps:
1. Place chair back (F) on a clean surface.
2. Tighten seat frame (G) to chair back (F) by using bolt (C), lock washer (B) and flat washer
(A) at the center location. (See diagram 2). Then, tighten the corners of seat frame (G) to
chair back (F) by using 4 bolts (E), 4 lock washers (B) and 4 flat washers (A). (See
diagram 1)
3. Assemble two front legs with front corner blocks of seat frame (G), using 4 bolts (C), 4 lock
washers (B) and 4 flat washers (A). Tighten all bolts by hand. (See diagram 2)
4. After all bolts are attached and hand tightened, turn the chair upright.
5. Level the chair following the "chair leveling instruction" as below.
