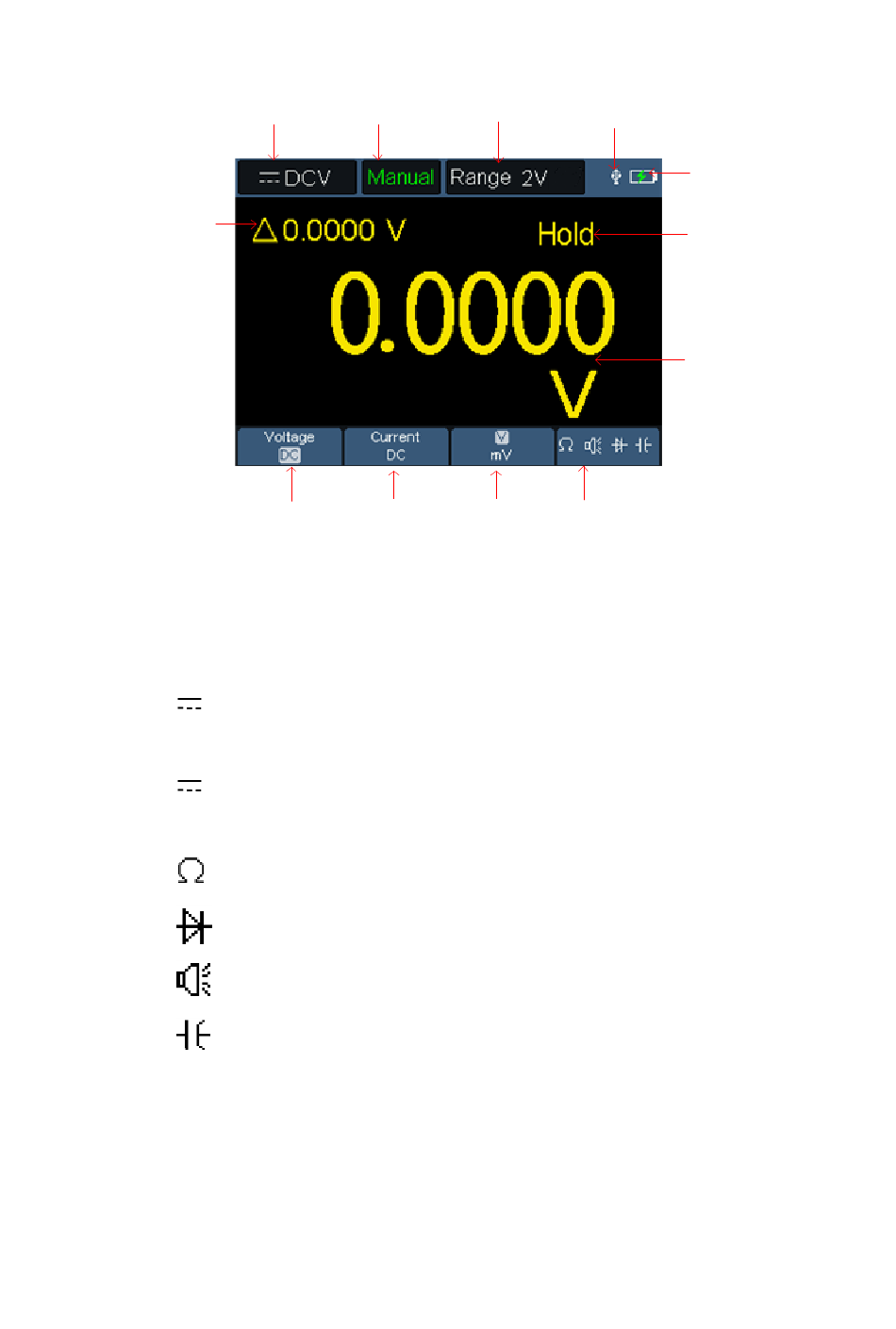

Multimeter interface:
12
Description:
1. Measurement type indication:
DCV
～ ACV
DCA
～ ACA
Resist
Diode
Cont
Cap
2.Range indication: Manual means manual range; Auto means automatic
range.
3. Current measurement range.
4. Indicating that there is a USB cable inserted.
5. Battery power indication.
2
1
11 10
Multimeter Interface
------ DC voltage measurement
------ AC voltage measurement
------ DC current measurement
------ AC current measurement
------ Resistance measurement
------ Diode measurement
------ On/Off measurement
------ Capacitance measurement
3
8
9
23
4
5
6
7
