- Page 1 Voltage Tester Operating Instruction User Manual Part Number: MP760855 Newark.com/multicomp-pro Farnell.com/multicomp-pro sg.element14.com/b/multicomp-pro Page <1> 04/02/22 V1.0...
- Page 2 1. Safety 1.1 International Safety Symbols Warning of a potential danger, comply with instruction manual. Caution! Dangerous voltage. Danger of electrical shock. Double insulation. Important information. Consult the instruction sheet. Hazardous Voltage. Suitable for live working. This product complies with the WEEE Directive (2012/19/EU) Conforms to European Union Directives.
-
Page 3: Appropriate Usage
use. 1.4 The safety can no longer be insured if the instrument: • Shows obvious damage • does not carry out the desired measurements • has been stored for too long under unfavorable conditions • has been subjected to mechanical stress during transport. All relevant statutory regulations must be adhered to when using this instrument 1.5 Safety Advices • ... - Page 4 Frequency range 0/40Hz to 400Hz Response time ≤1 second Auto power on Auto power on ≥12V AC/DC LCD display 1999 counts (3 1/2 digit ) LCD display with bargraph & backlight Voltage range 6 V to 1000 V AC/DC Resolution 1V AC/DC Tolerances ±3.0% of reading ±5 digit Frequency range 0/40Hz to 400Hz Response time...

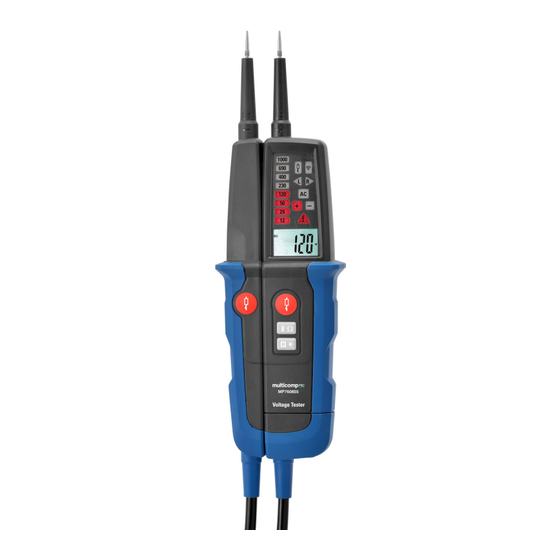

- Page 5 Protection degree IP64 Power supply 2x1.5V “AAA” Batteries Power consumption max.30mA / approx. 250mW Temperature range -10°C up to 55°C Humidity max.85% relative humidity 4. Voltage Tester Description: 1. Handle test probe – (L1) 2. Instrument test probe + (L2) 3.
-
Page 6: Operation
5. Operation: 5.1 Preparing the test Prior to every test, please ensure that the instrument is in perfect condition: • For example, keep an eye out for a broken housing or leaking batteries. • Always carry out a function test before using the voltage tester, see below. • ... -
Page 7: Continuity Test
5.4 Continuity Test The continuity test test is only possible when batteries are installed and in good condition. A signal sound is audible for continuity and the LED for continuity LED (6) is illuminated. 5.5 Voltage Test with Switched Load, RCD Trip Test • ... -
Page 8: Maintenance
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
