Summary of Contents for multicomp pro MP700110

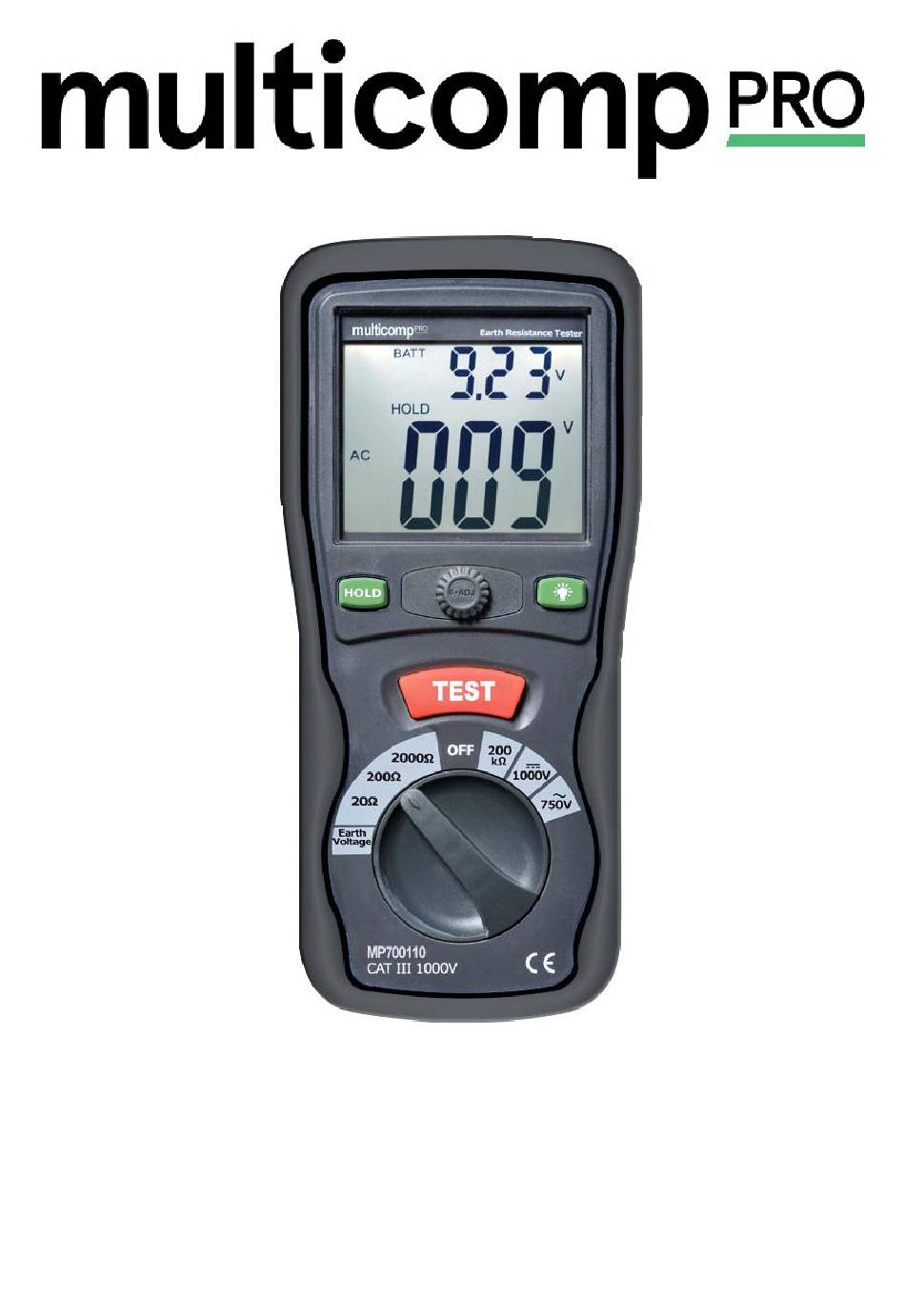

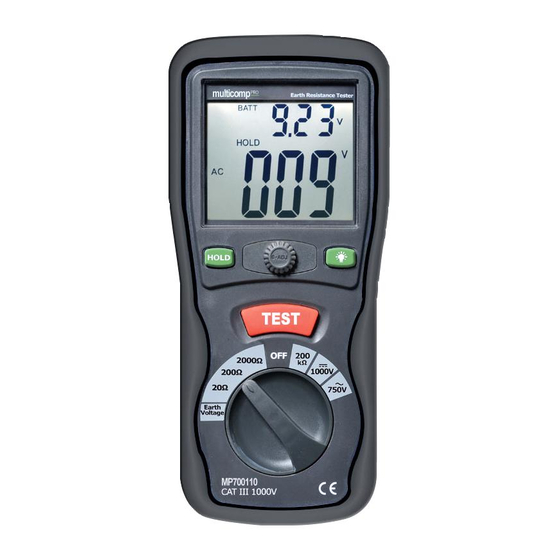

- Page 1 HOLD TEST 1000 200k 1000V 750V DIGITAL EARTH RESISTANCE TESTER MP700110...
-
Page 2: Safety Information
Electronic Digital Earth Resistance Tester is direct replacement of the conventional hand generator type tester. It is designed for measurement of the resistance of earthing used in the electrical equipment as well as for measurement of ground resistivity. It can be used for measurements of the other low regular and liquid resistances. - Page 3 Caution when working with voltages above 60V DC or 30V AC RMS. Such voltages pose a shock hazard. Before taking resistance measurements or testing acoustic continuity, disconnect circuit from main power supply and all loads from the circuit. ...
- Page 4 Auto Power Off: To conserve battery life, the meter will automatically turn off after approx. 15 minutes of non-use. To turn the meter back on, turn the rotary switch to OFF, then to the desired function. Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF) and Humidity below 80% RH Storage Temperature: -10ºC to 60ºC (14ºF to 140ºF)
-
Page 5: Parts And Controls
OHMS Overload Range Resolution Accuracy Protection 200kΩ 0.1kΩ +(1%+2d) 250Vrms DC Voltage Input Overload Range Resolution Accuracy Impedance Protection 1000V +(0.8%+3d) 10MΩ 1000Vrms AC Voltage (40Hz~400Hz) Input Overload Range Resolution Accuracy Impedance Protection 750V +(1.2%+10d) 10MΩ 750Vrms V. PARTS & CONTROLS ①... - Page 6 H OLD TEST 1000 200k 1000V 750V Button Function Operation Hold Function The hold function freezes the reading in the display. Press the HOLD key momentarily to activate or to exit the hold function Backlight Press the key for to turn on the display backlight function. The backlight will automatically turn off after 15 seconds.
- Page 7 VI. Measurement of effective resistance of earth electrodes BEFORE PROCEEDING MEASUREMENT, READ SAFETY NOTES ON PAGE 1. During operation if the symbol appears on the display, replace the batteries. Short the tips of the leads and press the “TEST” button. Adjust the 0 Ω “ADJ” turncap control to set the reading of zero.
- Page 8 Simplified earth resistance measurement method : This method is recommended where an earth resistance higher than 10 is measured or where it is not possible to drive auxiliary earth spikes. approximate value earth resistance can be obtained by the two wire system where is shown in Fig.
-
Page 9: Dc/Ac Voltage Measurements
Rx = Re – re Rx = True Earth Resistance Re = Indicated Value re = Earth Resistance of Earth Electrode Since measuring current is as low as 2 mA, the earth leakage breaker (ELCB) does not trip even if the earth side of the commercial power supply with an ELCB is used. -
Page 10: Resistance Measurements
6,Read the voltage in the display. DC/AC VOLTAGE MEASUREMENTS: If the polarity is reversed, the display will show (-) minus before the value VIII. 200k RES IS TANCE MEAS UREMENTS 1, Set the function switch to the highest 200k position. 2, Insert the black test lead banana plug into the negative COM jack 3, Insert the red test lead banana plug into the positive... - Page 11 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronics Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
