Introduction to the User Interface of the Oscilloscope

17
16
15
Description:
1. The trigger status indicates the following information:
Auto: Automatic mode. The waveform is being collected without triggering.
Trig: A trigger has been detected and post trigger information is being
collected.
Ready: All pre trigger data have been obtained and the oscilloscope is
ready.
Scan: Scan mode. Continuously collect and display waveform data.
Stop: Stop collecting waveform data.
2. Run/stop.
3. Time base display.
4. The pointer indicates the trigger horizontal position.
5. The pointer indicates the trigger position within the current storage depth.
6. Indicating the value of the current trigger horizontal displacement, and
displaying the position of the current waveform window in the memory.
7. Battery power and external power supply indication.
8. Channel 1 waveform.
9. The pointer indicates the trigger electrical level position of the channel.
1 2 3
4 5
13
14

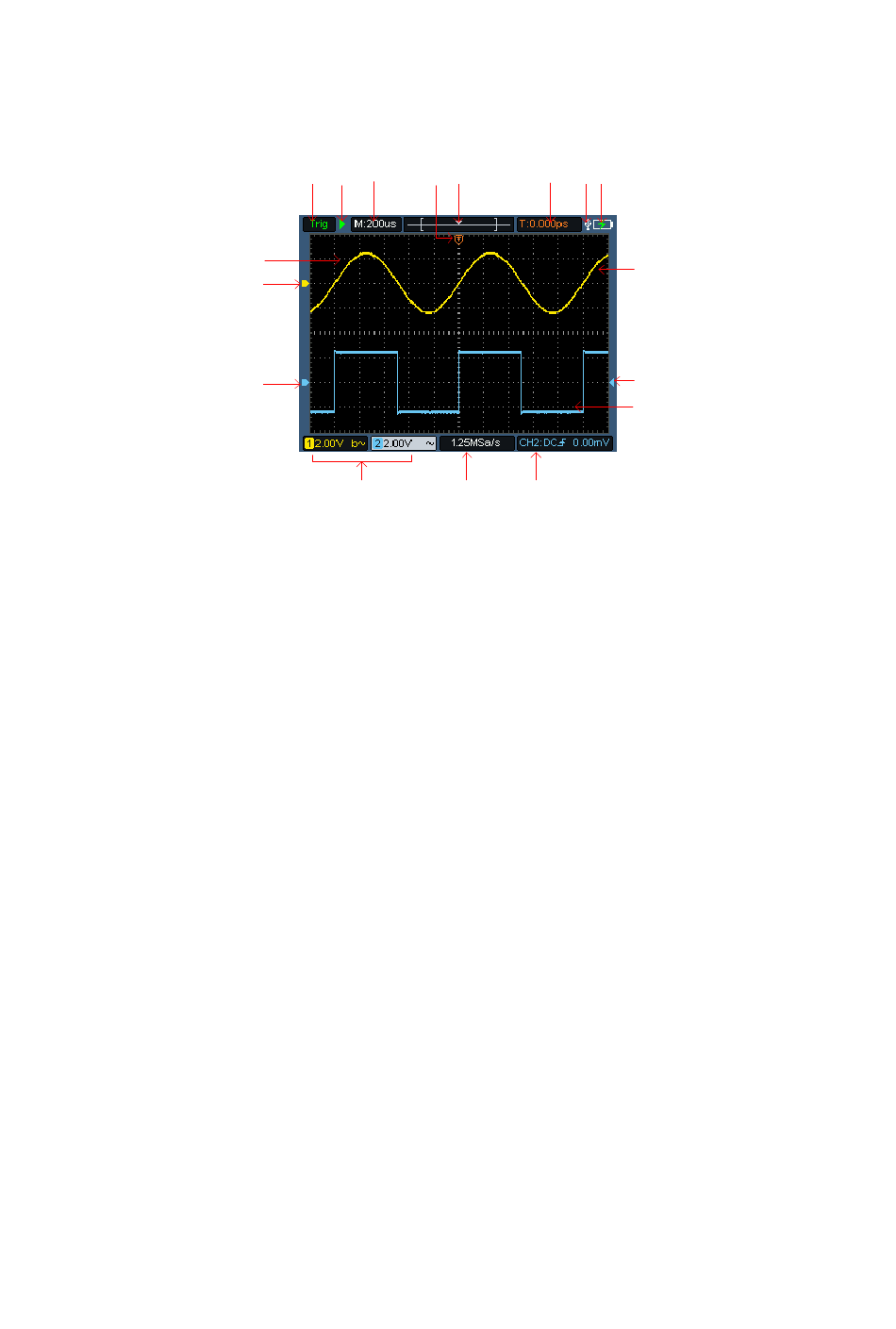

Figure 5: Oscilloscope Interface
9
6
7 8
9
10
11
12
