DP 1-Port RS232 Serial
PCIe with 16950 UART
Quick Installation Guide
Introduction

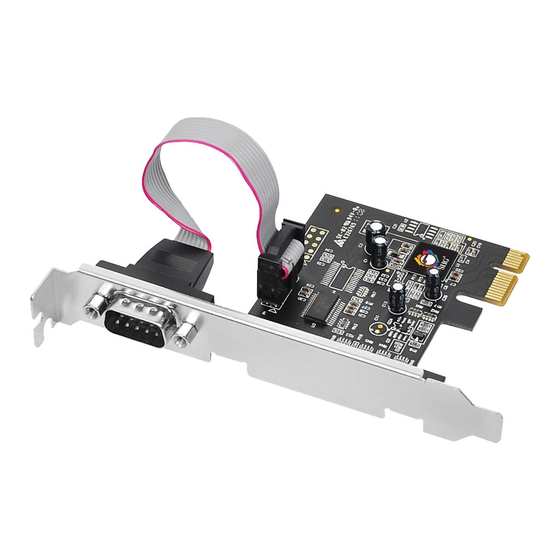

The DP 1-Port RS232 Serial PCIe with 16950
UART is a high-speed serial card that provides
one additional serial port to your system.
Key Features and Benefits
•
PCI Express (x1) single port serial with
128-byte FIFO buffers
•
Supports data transfer rate up to 230Kb/s
•
Installs in standard height or low profile
chassis with included brackets
System Requirements
•
PCI Express equipped system with an
available PCI Express slot
•
Windows
Vista (32-/64-bit) / XP (32-/64-bit) / Server
2003 & 2008 (32-/64-bit) / Server 2008 R2
/ 2000
04-0717B
8 (32-/64-bit) / 7 (32-/64-bit) /
®
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SIIG JJ-E01111-S1
Summary of Contents for SIIG JJ-E01111-S1
- Page 1 DP 1-Port RS232 Serial PCIe with 16950 UART Quick Installation Guide Introduction The DP 1-Port RS232 Serial PCIe with 16950 UART is a high-speed serial card that provides one additional serial port to your system. Key Features and Benefits • PCI Express (x1) single port serial with 128-byte FIFO buffers •...
-
Page 2: Package Contents
Package Contents • DP 1-Port RS232 Serial PCIe with 16950 UART • Spare enhanced low-profile bracket • Driver CD • Quick installation guide Layout Serial port pin header Stripe Connector bracket with 9-pin serial port Figure 1: Layout... -
Page 3: Hardware Installation
Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer’ s reference manual for further information, if needed. Static Electricity Discharge may permanently damage your system. Discharge any static electricity build up in your body by touching your computer’... -
Page 4: Driver Installation
To install the card, carefully align the card's bus connector with the selected PCIe slot on the motherboard. Push the board down firmly, but gently, until it is well seated. Replace the slot bracket's holding screw to secure the card. Replace the computer cover and reconnect the power cord. - Page 5 Insert the driver CD. Close the CD autoPlay window if prompted. For Windows 8: Click Windows key and R, type D:\setup.exe, click OK. (Change D: to match your CD/DVD-ROM drive letter) For Windows 7 / Server 2008 R2: Click Start. In the Search programs and files box, type D:\setup.exe, press Enter.
- Page 6 Windows Vista (32-/64-bit) / XP (32-/64-bit) / Server 2008 (32-/64-bit) / Server 2003 (32- /64-bit) Install the board and boot up Windows. At the Found New Hardware window, click Cancel. Skip this step if not prompted. Insert the driver CD. Close CD autoplay window if prompted.
- Page 7 Windows 2000 Install the board and boot up Windows. At the Found New Hardware Wizard, click Cancel. Insert the driver CD. Close AutoPlay if prompted. Click Start, Run. Type D:\setup.exe, click OK. (Change D: to match your CD/DVD ROM drive letter) At the Welcome to the PLX OXPCIe952 RS-232 Serial/Parallel PCIe Card Setup Wizard, click Install.
- Page 8 For Windows Vista: Right click Computer, click Manage, click Continue, then click Device Manager. For Windows XP / Server 2003 / 2000: Right click My Computer, click Manage, click Device Manager. For Windows Server 2008 / Server 2008 R2: Right click Computer, click Manage, double click Diagnostics, then click Device Manager.
- Page 9 Click the Settings tab. Click the down arrow next to the COM Port Number to Use box. Select a communication port that is not in use, then click OK. Restart your system to take effect.
- Page 10 Blank Page...
-
Page 11: Technical Support And Warranty
Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued. - Page 12 Fremont, CA 94538-3152, USA Phone: 510-657-8688 DP 1-Port RS232 Serial PCIe with 16950 UART is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
