Introduction

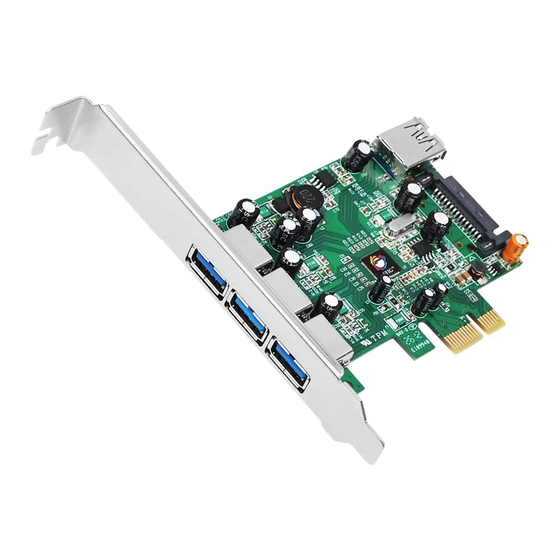

The DP 4-Port USB 3.0 PCIe i/e adds four USB 3.0
ports (1 internal & 3 external) to your
PCIe-enabled desktop PC enhancing existing
systems with the latest USB 3.0 technology.
Key Features and Benefits
•
Adds four SuperSpeed USB 3.0 ports to
PCIe-enabled desktop PC
•
Compliant with Universal Serial Bus 3.0
Specification
•
Compliant with PCI Express Base
Specification
•
Supports per port over-current protection
System Requirements
•
Desktop PC with an available PCIe slot
•
Windows
Vista (32-/64-bit) / XP (32-/64-bit) / Server
2003 & 2008 (32-/64-bit) / Server 2008 R2
04-0816B
DP 4-Port USB 3.0 PCIe i/e
Quick Installation Guide
8 (32-/64-bit) / 7 (32-/64-bit) /
®
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG JU-P40311-S1
Summary of Contents for SIIG JU-P40311-S1
- Page 1 DP 4-Port USB 3.0 PCIe i/e Quick Installation Guide Introduction The DP 4-Port USB 3.0 PCIe i/e adds four USB 3.0 ports (1 internal & 3 external) to your PCIe-enabled desktop PC enhancing existing systems with the latest USB 3.0 technology. Key Features and Benefits •...
- Page 2 Package Contents • DP 4-Port USB 3.0 PCIe i/e adapter • Spare low profile bracket • Driver CD & quick installation guide Layout USB 3.0 Port Power Connector (optional)* USB 3.0 Port Figure 1: Board Layout *Note: This power connector is designed to provide additional power to the board when needed.
- Page 3 Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer’s reference manual for further information, if needed. Static Electricity Discharge may permanently damage your system. Discharge any static electricity build up in your body by touching your computer’s case for a few seconds.
- Page 4 Carefully align the card's bus connector with the selected PCIe slot on the motherboard. Push the board down firmly, but gently, until it is well seated. Replace the slot bracket holding screw to secure the card. Replace the computer cover and reconnect the power cord.
- Page 5 For Windows Vista: At the CD Autoplay window, double click Setup. Click Yes or Continue at the User Account Control. For 2008 R2, skip this step. At Welcome to InstallShield wizard..., click Next. Select I accept the terms of the license agreement, click Next.
- Page 6 At Ready to Install the Program, click Install. Click Finish, then restart the computer. To Verify Successful Installation Go to Device Manager to verify installation. For Windows 8 / Windows 7/ Windows XP / Server 2008 R2 / Server 2003: Right click Computer or My Computer, click Manage, then click Device Manager.
- Page 7 SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship.
- Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 DP 4-Port USB 3.0 PCIe i/e is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
