Introduction

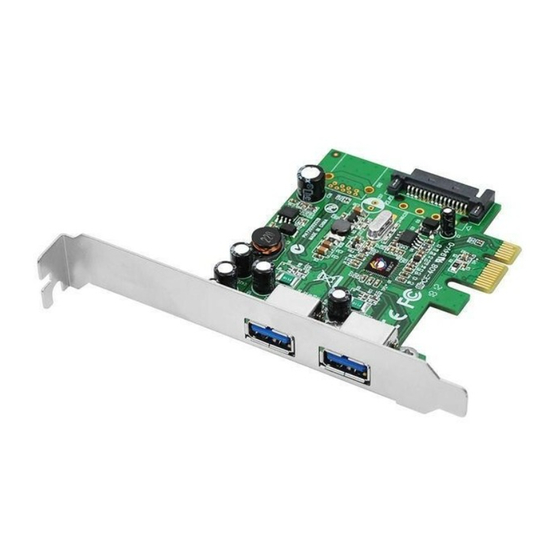

The DP 2-Port USB 3.0 PCIe Host adds two USB
3.0 ports to your PCIe-enabled desktop PC,
enhancing existing systems with the latest USB
3.0 technology.
Key Features and Benefits
•
Compliant with Universal Serial Bus 3.0
Specification
•
Compliant with PCI Express Base
Specification, Revision 2.0
•
Supports data rate up to 5Gb/s and
backward compatible with previous
versions of USB devices
Package Contents
•
DP 2-Port USB 3.0 PCIe Host
•
Spare low profile bracket
•
Driver CD
•
Quick installation guide
04-0793B
DP 2-Port USB 3.0 PCIe Host
Quick Installation Guide
1
Advertisement
Table of Contents
Related Manuals for SIIG JU-P20612-S1
Summary of Contents for SIIG JU-P20612-S1
- Page 1 DP 2-Port USB 3.0 PCIe Host Quick Installation Guide Introduction The DP 2-Port USB 3.0 PCIe Host adds two USB 3.0 ports to your PCIe-enabled desktop PC, enhancing existing systems with the latest USB 3.0 technology. Key Features and Benefits •...
- Page 2 System Requirements • Desktop PC with an available PCIe slot • Windows 8 (32-/64-bit) / 7 (32-/64-bit) / ® Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 Layout Depending on model purchased, your board will come with either 2 external ports or 1 external &...
- Page 3 Hardware Installation For low profile systems, install the spare low profile bracket now. Since the design of computer cases and motherboards vary, refer to your computer’s reference manual for further information. Static Electricity Discharge may permanently damage your system. Discharge any static electricity build up in your body by touching your computer’s case for a few seconds.
- Page 4 Replace the slot bracket holding screw to secure the card. Connect the system power supply to the cards's SATA power connector. (This connection is optional.) Replace the computer cover and reconnect the power cord. Driver Installation Note: For Windows 8, the driver is already embedded in the operating system.
- Page 5 For Windows Vista: At the CD Autoplay window, double click Setup. Click Yes or Continue at the User Account Control. For 2008 R2, skip this step. At Welcome to InstallShield wizard..., click Next. Select I accept the terms of the license agreement, click Next.
- Page 6 At Ready to Install the Program, click Install. Click Finish, then restart the computer. To Verify Successful Installation Go to Device Manager to verify installation. For Windows 8 / Windows 7/ Windows XP / Server 2008 R2 / Server 2003: Right click Computer or My Computer, click Manage, then click Device Manager.
- Page 7 Go to www.siig.com, click Support, then Request A Product Replacement to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.
- Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 DP 2-Port USB 3.0 PCIe Host is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
