Introduction

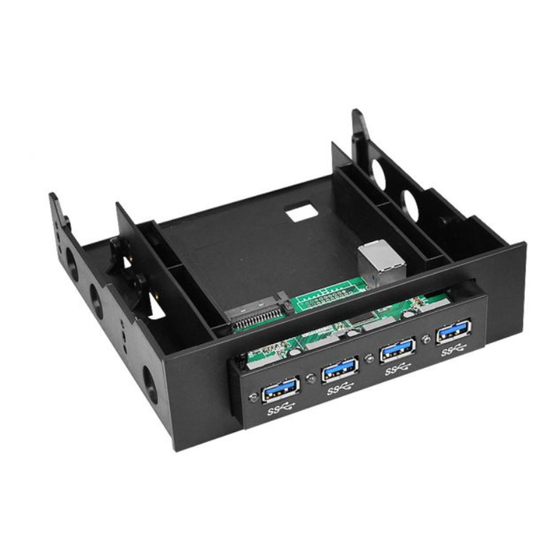

The USB 3.0 4-Port Bay Hub is designed to support
USB 3.0 equipped PC computers and expands
USB 3.0 connectivity to your computer.
Features and Benefits
•
Installs in a standards 3.5" or 5.25" drive
bay (5.25" mounting rack included)
•
Compliant with Universal Serial Bus 3.0
Specification
•
Supports up to 5Gb/s data transfer rate
and is backward compatible with USB 2.0
& 1.1 devices
•
Supports simultaneous operation of multiple
USB 3.0/2.0/1.1 devices
System Requirements
•
Desktop PC with one available internal
USB port or pin header connector
•
One available 3.5" or 5.25" drive bay
04-0852A
USB 3.0 4-Port Bay Hub
Quick Installation Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG USB 3.0 4-Port Bay Hub
Summary of Contents for SIIG USB 3.0 4-Port Bay Hub
- Page 1 USB 3.0 4-Port Bay Hub Quick Installation Guide Introduction The USB 3.0 4-Port Bay Hub is designed to support USB 3.0 equipped PC computers and expands USB 3.0 connectivity to your computer. Features and Benefits • Installs in a standards 3.5" or 5.25" drive bay (5.25"...
-
Page 2: Package Contents
8 (32-/64-bit) / 7 (32-/64-bit) / ® Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 Package Contents • USB 3.0 4-Port Bay Hub • 5.25" mounting rack & installation kit • USB 3.0 A to B cable •... -
Page 3: Usb 3.0 Connector
• Device LED: On when a USB device is connected. One Device LED for one USB 3.0 port. USB 3.0 Connector Type-A connector Type-B connector Figure 2. USB 3.0 Cable Connectors Hardware Installation Important: To ensure the Bay Hub can work properly, the driver of your existing USB 3.0 host adapter has to have support for USB 3.0 hubs. - Page 4 Select an available 3.5" or 5.25" drive bay for the USB 3.0 4-Port Bay Hub, remove the cover plate from the selected drive bay. Note: Before mounting into a 5.25" drive bay, install the hub into the 5.25" mounting rack first, then follow the same assembly instructions.
- Page 5 Carefully thread the cables through the drive bay opening and push the hub assembly into the drive bay. Align the hub's screw holes with the appropriate holes in the drive bay, and attach the hub to the case using the included mounting screws. Be careful not to overtighten the mounting screws.
- Page 6 Figure 5 Or connect the Type-A connector of the included USB 3.0 cable to the USB 3.0 20 pin header in your system through the included USB 3.0 20 pin to type A adapter. See Figure 6. USB 3.0 20 pin header USB 3.0 20 pin to type A adapter Figure 6...
-
Page 7: Verify Installation
The hub is now ready for device connection. Connect the Type-A connector of your USB device(s) into any of the downstream ports on the USB 3.0 4-Port Bay Hub. Verify Installation Check in Device Manager to verify installation. - Page 8 Double click Universal Serial Bus controllers, Generic SuperSpeed USB Hub should be listed. Note: The device name may be slightly different under different operating systems.
- Page 9 Blank Page...
- Page 10 Blank Page...
-
Page 11: Technical Support And Warranty
Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued. - Page 12 Fremont, CA 94538-3152, USA Phone: 510-657-8688 USB 3.0 4-Port Bay Hub is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
