Introduction

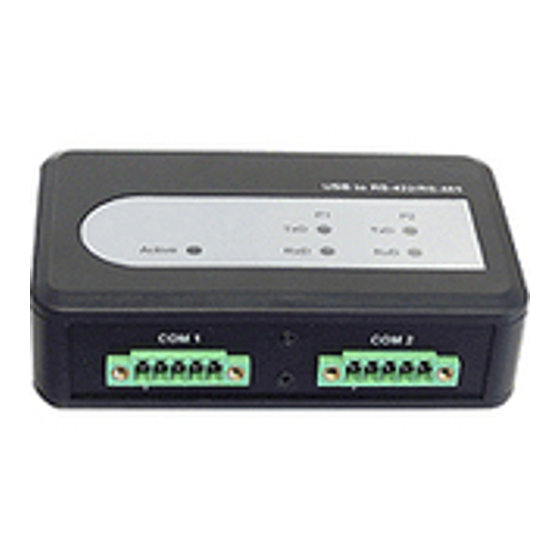

The Industrial USB to 422/485 Serial Adapter
provides additional RS-422/485 ports with 3KV
isolation to your PC or Mac systems.
Key Features and Benefits
•
Supports serial port data transfer rates up
to 230Kb/s
•
Built in 15KVDC ESD serial interface
protection
•
USB bus power
•
3KV optical isolation
•
Auto data direction flow control
•
Wall mount ready
System Requirements
•
Desktop or notebook computer with an
available USB 2.0 port
04-0826A
Industrial USB to 422/
485 Serial Adapter
Quick Installation Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ID-SC0911-S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIIG ID-SC0911-S1

Summary of Contents for SIIG ID-SC0911-S1

  • Page 1 Industrial USB to 422/ 485 Serial Adapter Quick Installation Guide Introduction The Industrial USB to 422/485 Serial Adapter provides additional RS-422/485 ports with 3KV isolation to your PC or Mac systems. Key Features and Benefits • Supports serial port data transfer rates up to 230Kb/s •...

  • Page 2: Package Contents

    Power adapter (for ID-SC0A11-S1 only) • 5-pin terminal block (2pcs for ID-SC0911- S1; 4 pcs for ID-SC0A11-S1) • 3-pin terminal block (for ID-SC0A11-S1 only) • Software CD • Quick installation guide Layout Power LED Status LED Figure 1: ID-SC0911-S1 Layout...

  • Page 3: Pin Assignment

    Tx Status LED Rx Status LED Active LED Figure 2: ID-SC0A11-S1 Layout Pin Assignment Figure 3: Pin Assignment...
  • Page 4 RS-422 Wire Diagram USB to RS-422 RS-422 device Pin 1: TxD- RxD- Pin 2: TxD+ RxD+ TxD- Pin 3: RxD- Pin 4: RxD+ TxD+ Figure 4: point-to-point / 4-wire full-duplex communication USB to RS-422 RS-422 device RS-422 device RS-422 device Figure 5: point-to-multi point / 4-wire full-duplex communication...
  • Page 5 RS-485 Wire Diagram USB to RS-485 RS-485 device Pin 1: TxD- RxD- RxD+ Pin 2: TxD+ Pin 3: RxD- Pin 4: RxD+ Figure 6: point-to-point / 2-wire half-duplex communication RS-485 device USB to RS-485 RS-485 device RS-485 device Figure 7: point-to-multi point / 2-wire half-duplex communication...

  • Page 6: Windows Installation

    Windows Installation Follow the instructions below to install the Industrial USB to 422/485 Serial Adapter drivers. Windows 8 (32-/64-bit) / Windows 7 (32-/ 64-bit) / Server 2008 R2 Insert the driver CD. At the AutoPlay box, click Open folder to view files, then double click Setup file.

  • Page 7: Windows Vista (32-/64-Bit)

    Windows Vista (32-/64-bit) Insert the driver CD, at the prompted driver window, double click Setup file. At the User Account Control, click Allow. Double click Setup file, then click Allow again. Plug the adapter into the computer, click Cancel at the Found New Hardware (if prompted).
  • Page 8 To Verify Windows Installation Go to Device Manager to verify installation. For Windows 8 / Windows 7 / Windows XP / Server 2003 & 2008 R2: Right click Computer or My Computer, click Manage, then click Device Manager. For Windows Vista: Right click Computer, click Manage, click Continue, then click Device Manager.
  • Page 9 RS-422/485 Mode Setting Follow the instructions below to set up the output mode for each port. Open the driver CD, then select folder USB Serial Converter Set. Double click USB Serial Converter Set file. Then the following window will prompt up.
  • Page 10 422 or RS-485 ; 4 wire or 2 wire), and click SET to save the settings. Note: The following image is the screen shot of ID-SC0A11-S1. For ID-SC0911-S1, there are only two ports for setting. Figure 9 At the Set Successfully window, click OK.

  • Page 11: Technical Support And Warranty

    Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.
  • Page 12 Fremont, CA 94538-3152, USA Phone: 510-657-8688 Industrial USB to 422/485 Serial Adapter is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.

This manual is also suitable for:

Id-sc0a11-s1

Table of Contents
