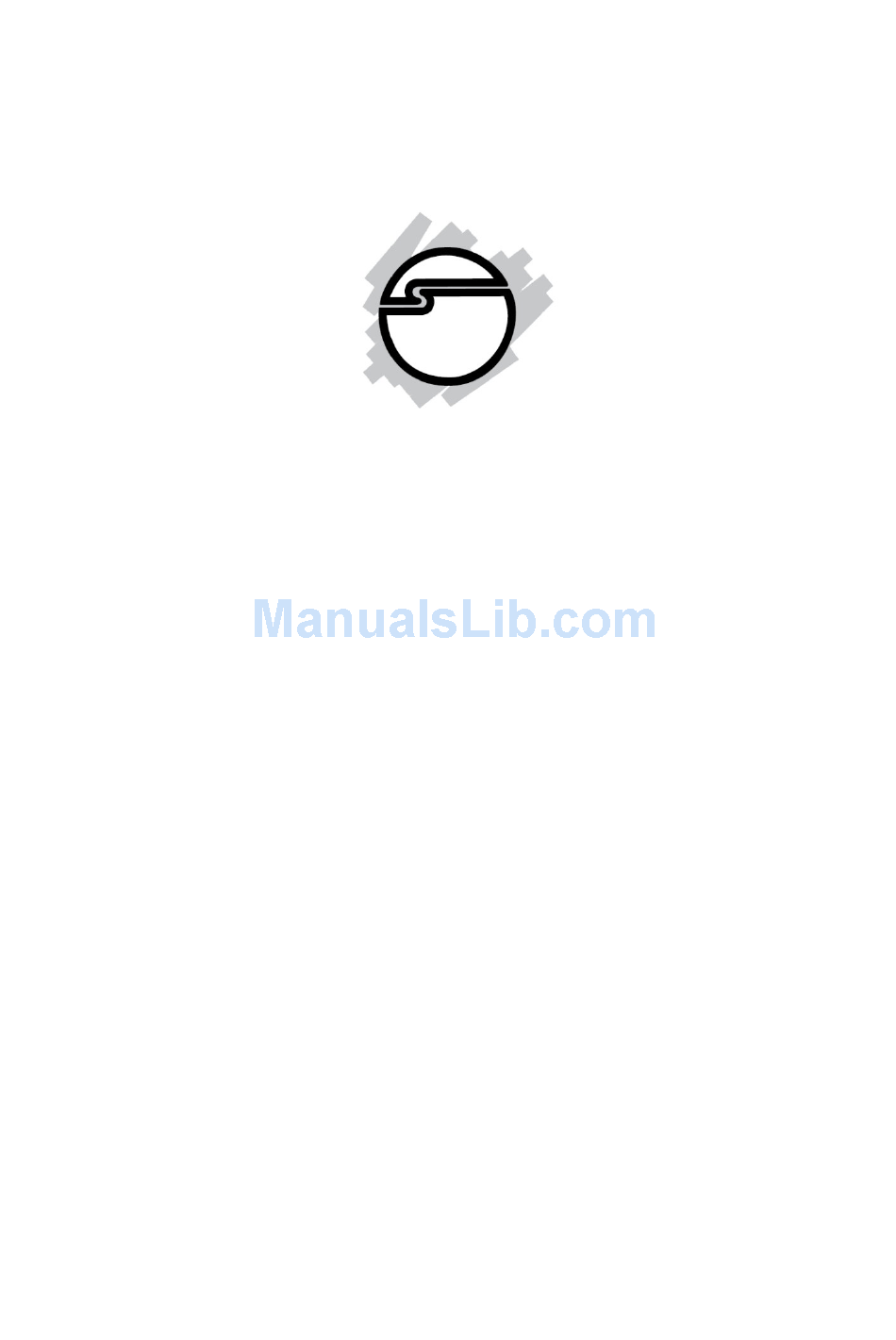

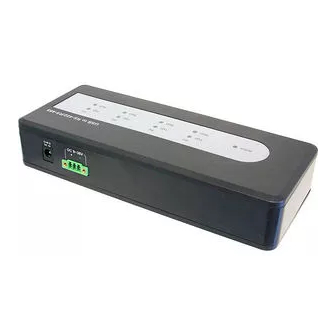

- Page 1 USB to RS-422/485 Serial Adapter (ID-SC0911-S1/SC0A11-S1) User’s Manual...
-
Page 2: Copyright Statement
Copyright Statement No part of this publication may be reproduced in any form by any means without the prior written permission. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special, incidental, consequential, or other damage. Safety Instructions Always read the safety instructions carefully Keep this User’s Manual for future reference Keep this equipment away from humidity If any of the following situation arises, get the equipment checked by a service technician: The equipment has been exposed to moisture. The equipment has been dropped and damaged. The equipment has obvious sign of breakage. The equipment has not been working well or you cannot get it work according to User’s Manual. ... -
Page 3: Table Of Contents
- Installation Verification ................. 16 4. RS-422/RS-485 ModeSetting ..............17 - Connect Serial Port Device ..............19 - Appendix ....................20 - RS-422 wire diagram ................20 - RS-485 wire diagram ................21 Technical Support and Warranty: .............. 23 About SIIG, Inc..................... 24... -
Page 4: Introduction
1. Introduction USB‐to‐RS422/485 device provides an easy way to connect serial ports as needed for systems. USB‐to‐Serial functions as a converter between a USB port and standard serial ports. We can easily connect this converter to the USB port on your PC or USB hub and get access to any RS‐422/485 devices such as PDAs, scanners, printers, etc. This device is suitable for portable devices, equipments, sales‐end applications. Feature Compliant with USB 2.0 specification, HI‐Speed USB data transmission rate can up to 480 Mbps No extra U/O or IRQ required Support Serial port data transmission rate up to 230 Kbps Auto direction flow control Support USB plug‐and‐play 15KV DC ESD immunity to serial interface 3KV optical coupling isolation Wall mount support Package Content Before installation, please check the package contains the following items: USB‐to‐R422/485 Device x1 ... -
Page 5: Specification
2. Specification 2xRS‐422/485 (ID‐SC0911‐S1) Ports 4xRS‐422/485 (ID‐SC0A11‐S1) Connector Terminal block‐5 pin ESD Protection 15KV ESD, 3KV isolation FIFO 4K bytes Serial Communication 300 bps to 921.6 Kbps Speed Interface USB2.0 Bus‐power (ID‐SC0911‐S1) Power Requirements Bus‐power/5V 3ADC/9~36VDC (ID‐SC0A11‐S1) Operating Temperature 0℃ to 55℃ Operating Humidity 5 to 95% RH 100x60x29mm (ID‐SC0911‐S1) Dimensions (LxWxH) 195x80x38mm (ID‐SC0A11‐S1) Regulatory Approvals FCC/CE * Specification is subject to change without further notice. ... -
Page 6: 2-Port Industrial Usb To 422/485 Serial Adapter
2-Port Industrial USB to 422/485 Serial Adapter Hardware Dimension 60 mm 100 mm 60 mm 28.9 mm... -
Page 7: Hardware Introduction
Hardware Introduction Status Power Wall mount hole Port Serial Port Serial Port... -
Page 8: 4-Port Industrial Usb To 422/485 Serial Adapter
4-Port Industrial USB to 422/485 Serial Adapter Hardware Dimension 80 mm 195 mm 120 mm 38 mm... -
Page 9: Hardware Introduction
Hardware Introduction Status LEDs Power USB2.0 RS422/485 Terminal block DC Power DC Power jack Terminal Block... -
Page 10: Installation
3. Installation On Windows 2000 / XP / Vista Note: DO NOT connect the Serial to USB Device to computer before installing the driver. 1. Please insert the provided CD into CD‐ROM and click driver setup file to install. ... - Page 11 2. Please select Install from a list or specific location and click Next. ...
- Page 12 When the installation completed, please connect the USB to Serial Converter to available USB port. ...
-
Page 13: Installation Verification
Installation Verification To verify your installation, please launch Device Manager as following: Under Windows 2000/ XP Operation System: Right‐Click My Computer and select Properties > System > (Hardware) > Device Manager > Ports (COM & LPT). Under Windows Vista/ 7 Operation System: Right‐Click My Computer and select Properties > Device Manager > Ports (COM & LPT) ... -
Page 14: On Windows 7
On Windows 7 1. Please Locate and install driver software manually. ... - Page 15 2. Please browse for driver software on your computer. 3. Please click Next to install driver. 4. Please click Close to complete installation. ...
-
Page 16: Installation Verification
Installation Verification To verify your installation, please launch Device Manager as following: Under Windows Vista/ 7 Operation System: Right‐Click My Computer and select Properties > Device Manager > Ports (COM & LPT) ... -
Page 17: Rs-422/Rs-485 Modesetting
4. RS-422/RS-485 ModeSetting ID‐SC0911‐S1/SC0A11‐S1 can support the 4‐wire RS‐232 and the 2/4‐wire RS‐485 operation mode, user can use the USB Serial Converter Set utility on the driver CD to change the ID‐SC0911‐S1/SC0A11‐S1 operation mode on each port. Run the USB Serial Converter Set tool utility on the driver CD, they will show up as following Click Scan button to locate all the RS‐422/RS‐485 serial server on line, selected the desired serial server on list ... - Page 18 Selected the desired port mode and click the SET button to finish the mode setting ...
-
Page 19: Connect Serial Port Device
Connect Serial Port Device Now you can connect your RS‐422/485 device and sensor through the USB to 422/485 Serial Adapter ... -
Page 20: Appendix
Appendix RS-422 wire diagram T/R+ T/R- USB-to-RS422 RS-422 device RXD+ RXD- RS‐422 point‐to‐point/4‐wire full‐duplex communication T/R+ T/R- USB-to-RS422 RS-422 device RXD+ RXD- RS-422 device RS-422 device RS‐422point‐to‐multi point/4wire full duplex communication ... -
Page 21: Rs-485 Wire Diagram
RS-485 wire diagram T/R+ 485+ T/R- 485- USB-to-RS485 RS-485 device RXD+ RXD- RS‐485 point‐to‐point/2 wire half‐duplex communication T/R+ 485+ T/R- 485- USB-to-RS485 RS-485 device RXD+ RXD- 485+ 485- RS-485 device 485+ 485- RS-485 device RS‐485 point‐to‐multi point/2 wire half‐duplex communication ... - Page 22 Blank Page ...
-
Page 23: Technical Support And Warranty
B) If your purchase has passed the storeʹs return policy period, please follow these steps to have the product repaired or replaced. Step 1: Submit your RMA request. Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT, then RMA to submit a request to SIIG RMA or fax a request to 510‐657‐5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued. Step 2: After obtaining an RMA number, ship the product. ... -
Page 24: About Siig, Inc
All centered around the distribution and switching of A/V signals over CAT5/6, these products include matrix switches, distribution amplifiers, extenders, converters, splitters, cabling, and more. SIIG is the premier one‐stop source of upgrades and is committed to providing high quality products while keeping economical and competitive prices. High‐quality control standards are evident by one of the lowest defective return rates in the industry. ...
