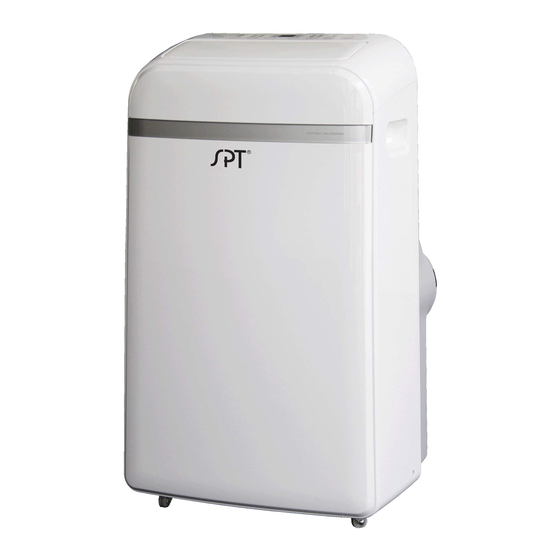

Portable Air Conditioner

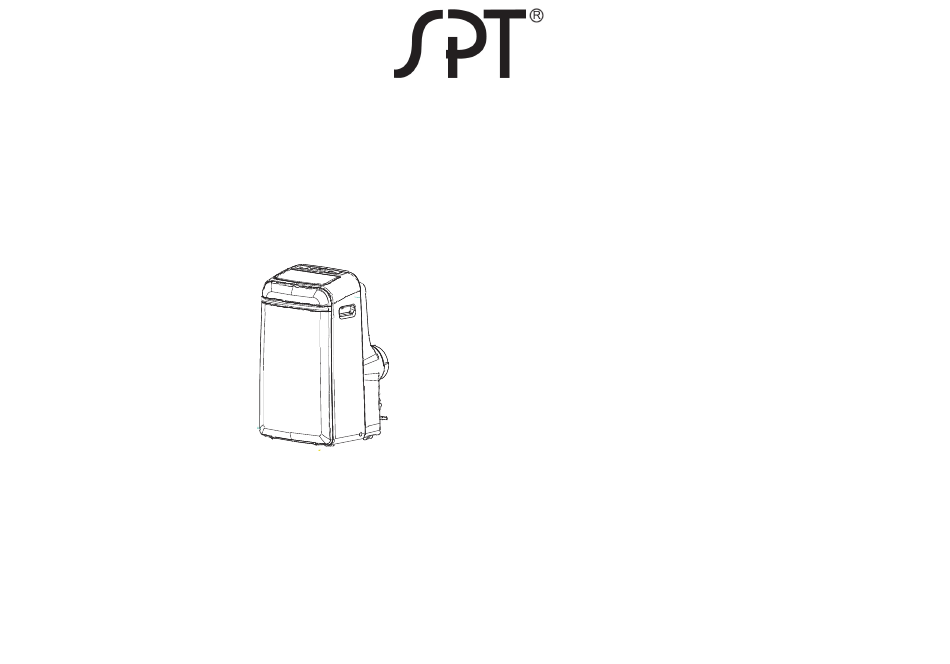

Instruction Manual
WA-P903E: 14,000BTU (cooling only)
Thank you for purchasing our Portable Air Conditioner.
Before using your air conditioner, please read this instruction manual carefully and keep it for future reference.
READ AND SAVE THESE INSTRUCTIONS!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WA-P903E and is the answer not in the manual?

Questions and answers

Related Manuals for SPT WA-P903E

Summary of Contents for SPT WA-P903E

  • Page 1 Portable Air Conditioner Instruction Manual WA-P903E: 14,000BTU (cooling only) Thank you for purchasing our Portable Air Conditioner. Before using your air conditioner, please read this instruction manual carefully and keep it for future reference. READ AND SAVE THESE INSTRUCTIONS!

  • Page 3: Table Of Contents

    Contents P r e p a r a t i o n - - - - - - - - - - - - - - - - - - - - - - S a f e t y P r e c a u t i o n s - - - - - - - - - - - - - - - - C a u t i o n s - - - - - - - - - - - - - - - - - - - - - - - - D e s i g n a n d C o m p l i a n c e N o t e s - - - - - - - I n s t a l l a t i o n - - - - - - - - - - - - - - - - - - - - - -...

  • Page 4: Preparation

    Preparation control panel horizontal louver blade upper air filter (swing automatically) (behind the grille) handle (both sides) upper air intake upper drain outlet air outlet lower air filter lower air intake lower drain outlet (heating models only) power cord buckle power cord outlet Caster power plug socket...

  • Page 5: Safety Precautions

    Safety Precautions • DO NOT operate an unit that has been dropped or damaged. Please read through these instructions before you start the • Only use the included accessories and specied parts for installation process. Improper installation can cause damage installation.

  • Page 6: C Autions

    C autions • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 7: Installation

    Installation Choosing The Right Location Recommend Installation 50cm 19.7inch Your installation location should meet the following requirements: NOTE: -Make sure that you install your unit on an even surface to minimize All the illustrations in the manual are for explanation noise and vibration.
  • Page 8 Installation Tools Needed Window Installation Kit -Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors; -Saw (optional, to shorten window adaptor for narrow windows) Step One: Preparing the Exhaust Hose assembly Accessories Press window slider adaptor and unit adaptor onto the exhaust hose. Clips on the adaptors will automatically clamp onto the exhaust hose.
  • Page 9 Installation Note: Once the exhaust hose assembly and adjustable slider kit are prepared, choose from one of the following installation methods. Type 1: Hung Window Installation Cut the adhesive foam Insert the slider kit Cut the non-adhesive If desired, install the Insert the slider kit seal A and B strips to the assembly into window...
  • Page 10 Installation Thr ough-the wall connection Note: It is necessary to purchase the following parts Cover the hole using the adaptor cap when not in use. for through-the-wall installation: IMPORTANT: Wall Adaptor DO NOT OVER BEND THE EXHAUST HOSE (sold separately, please contact The exhaust hose can be compressed or extended Sunpentown at 1-800-330-0388 or visit www.sunpentown.com)

  • Page 11: Operation

    Operation Swing button Mode button Fan button Selects the appropriate operating mode. Each press of Used to initiate the Auto swing feature. Controls the fan speed. Press to select the fan speed in four steps: LOW, MED, HIGH the button will select mode in the following sequence: If auto-swing is in function, press the and AUTO.
  • Page 12 Operation Operation Instructions LED display COOL operation Displays set temperature, in either °C or °F. - Press the MODE button until COOL indicator lights up. Displays auto-timer settings (if any) - Press the + or - button to set desired room temperature. T emperature range is between 62°F~86°F (17°C~30°C).
  • Page 13 Operation TIMER function SLEEP function - If unit is running in COOL mode when SLEEP function is When the unit is operating: activated, unit will automatically increase set temperature - Press the TIMER button to program auto-stop, the by 1°C/2°F after 30 minutes. A fter another 30 minutes, unit TIMER OFF indicator will illuminate.
  • Page 14 Operation NOTE: Make sure connection is secure to prevent leakage. Water drainage Direct the hose towards the drain, making sure there are Continuous Drainage for DRY mode no kinks that may stop the water flow. Place the end of the - Remove the upper drain plug hose into the drain and make sure the end of hose is down from back of unit.

  • Page 15: M A I N T E N A N C

    Maintenance Safety Precautions Clean the Unit Use a lint free cloth soaked with neutral detergent to clean the -Always unplug the unit before cleaning or servicing. housing. Finished by a dry clean cloth. -DO NOT use flammable liquids or chemicals to clean the unit. -DO NOT wash the unit under running water.

  • Page 16: T R O U B L E S H O O T I N

    Trouble Shooting Please check the machine according to the following before asking for maintenance: Sociable Remark Problem Possible Cause Troubleshooting Do not dispose this product as unsorted The Water Collection Tray is full. Turn off the unit, drain the water municipal waste.

  • Page 17: Using The Remote Controller

    USING THE REMOTE CONTROLLER NOTE:  Buttons design is based on typical model and might be slightly different from the actual one you purchased, the actual shape shall prevail. Remote Contr oller Specifica tions  All the functions described are accomplished by the unit, if the unit is not equipped with a certain feature, there will be no corresponding action.
  • Page 18 Function Buttons Before you begin using your new air conditioner, make sure to familiarize yourself with the remote control. The following is a brief introduction to the remote control. For detailed instructions on operation of the air conditioner, refer to the Instruction Manual. SHORT CUT ON/OFF Sets and activates your...
  • Page 19 Handling the Remote Controller NOT SURE WHAT A FUNCTION DOES? Refer to the Operation Instructions section of this manual for a detailed description on how to use your air conditioner. SPECIAL NOTE Button designs on your unit may differ slightly from the example shown.
  • Page 20 Remote LCD Scr een Indicator s Transmission Indicator Lights up when remote sends signal to unit ON/OFF display MODE display Displays the current Appears when the unit is tur ned on, and disappears when it is turned off mode, including: AUTO TIMER OFF display TIMER ON display...
  • Page 21 How To Use The Basic Functions The operating temperature range for the unit is 17°C-30°C COOL OPERATION (62°F-86°F). You can increase or decrease the set temperature 1. Press the MODE button to select COOL in 1°C(1°F) increments 2. Set your desired temperature using the Temp Up/Down button.
  • Page 22 How To Use The Basic Functions ON/OFF SHORT ON/OFF SHORT TIMER MODE TIMER MODE TEMP TEMP TIMER TIMER FOLLOW SLEEP SWING FOLLOW SLEEP SWING DRY OPERATION FAN OPERATION 1. Press the MODE button to select DRY 1. Press the MODE button to select FAN mode. mode.
  • Page 23 Setting the Timer Your air conditioning unit has two timer-related functions: TIMER ON: Set the amount of time after which the unit will automatically turn on. TIMER OFF: Set the amount of time after which the unit will automatically turn off. TIMER ON function: Sets amount of time for unit to turn on, such as when you will return home.
  • Page 24 Setting combined timers: TIMER ON and TIMER OFF at the same Keep in mind that the time periods you set for both functions refer to hours after the current time. For example, say that the current time is 1:00 PM, and you want the unit to turn on automatically at 7:00 PM (which is 6 hours from current time); operate for 2 hours, then automatically turn off at 9:00 PM (which is 8 hours from current time).
  • Page 25 Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn off (see the figure below). Your remote display Timer on Timer is set To turn ON 6 hours from current time Timer off Timer is set to turn OFF 8 hours from current time Unit turns Unit turns...
  • Page 26 How To Use T he Advanced Functions SLEEP Function The SLEEP function is used to conserve energy while you sleep. When activated, unit will increase set temperature by 1°C/1°F after 30 minutes; and by another 1°C/1°F after additional 30 minutes. New temperature will be maintained for 7 hours then unit returns to originally set temperature.
  • Page 27 If this product is defective or not working properly Please DO NOT return to your retail store Please contact us directly with any Service or Technical Assistance Contact us toll free at: 1-800-330-0388...
  • Page 28 Your Guarantee If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of purchase, it will be repaired free of charge. This guarantee is subject to the following terms: ·...
