ADS8688EVM-PDK Initial Setup
The microSD memory cards are formatted at the factory with the necessary firmware files for the Simple
Capture card to boot properly. In addition to the Simple Capture card firmware files (application and MLO
files), the microSD memory cards contain the ADS8688EVM-PDK software installation files.
5.2.2 Verify Jumpers are in the Factory-Default Position and Connect the Hardware
The ADS8688EVM-PDK includes both the ADS8688EVM and the Simple Capture card; however, the
devices are shipped unconnected. Follow these steps to verify that the ADS8688EVM-PDK kit is
configured and connected properly.
1. Verify the microSD card is installed on the back of the Simple Capture card ; see
2. Verify the microSD card is installed on the back of the ADS8688EVM; see
3. Verify the ADS8688EVM jumpers are configured as illustrated in
4. Connect the ADS8688EVM board to the Simple Capture card as

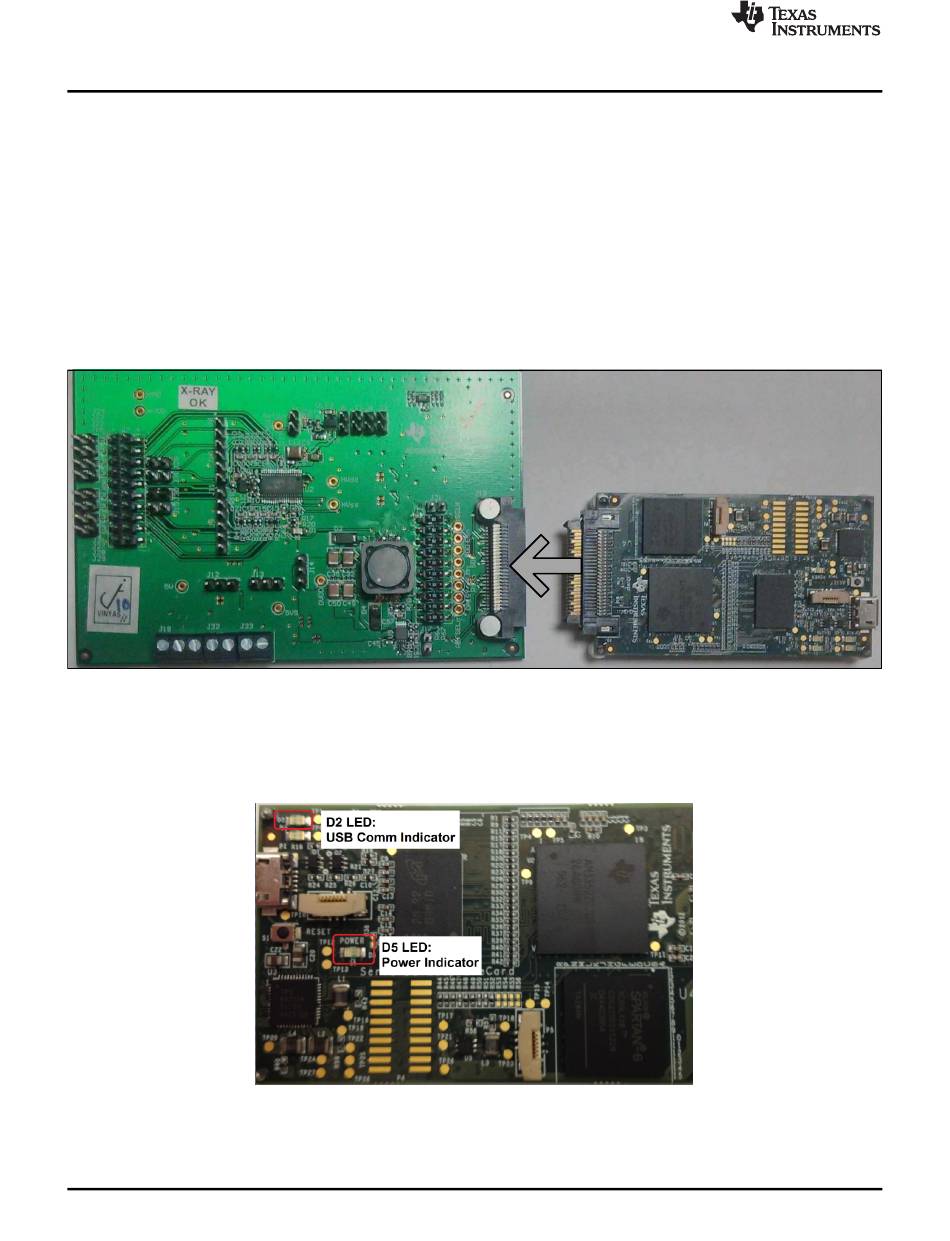

Figure 7. Connecting the ADS8688EVM Board to the Simple Capture Card
5. Connect the Simple Capture card to the computer through the micro USB cable.
6. Verify that the LED D5 power-good indicator is illuminated. Wait approximately ten seconds and verify
that diode D2 blinks, indicating that USB communication with the host computer is functioning properly.
Figure 8 shows the location of the LED indicators in the Simple Capture card .
14
ADS8688EVM-PDK Evaluation Module
Figure 8. LED Indicators on the Simple Capture Card
