Power Supplies
`
`
`
`
`
`
`
`
Jumper for Selecting Source for
External
HVSS
The AVDD analog supply for the ADS8688 is generated by converting an unregulated 5-V supply from the
Simple Capture card or by converting an external 5-V supply to a regulated 5-V supply by using the
REG71055 charge pump and the TPS7A4901 linear regulator. The DVDD digital supply for the ADC is
derived from a 3.3-V supply from the Simple Capture card.
10
ADS8688EVM-PDK Evaluation Module
HVSS
` `
GND External GND External
HVDD 5V

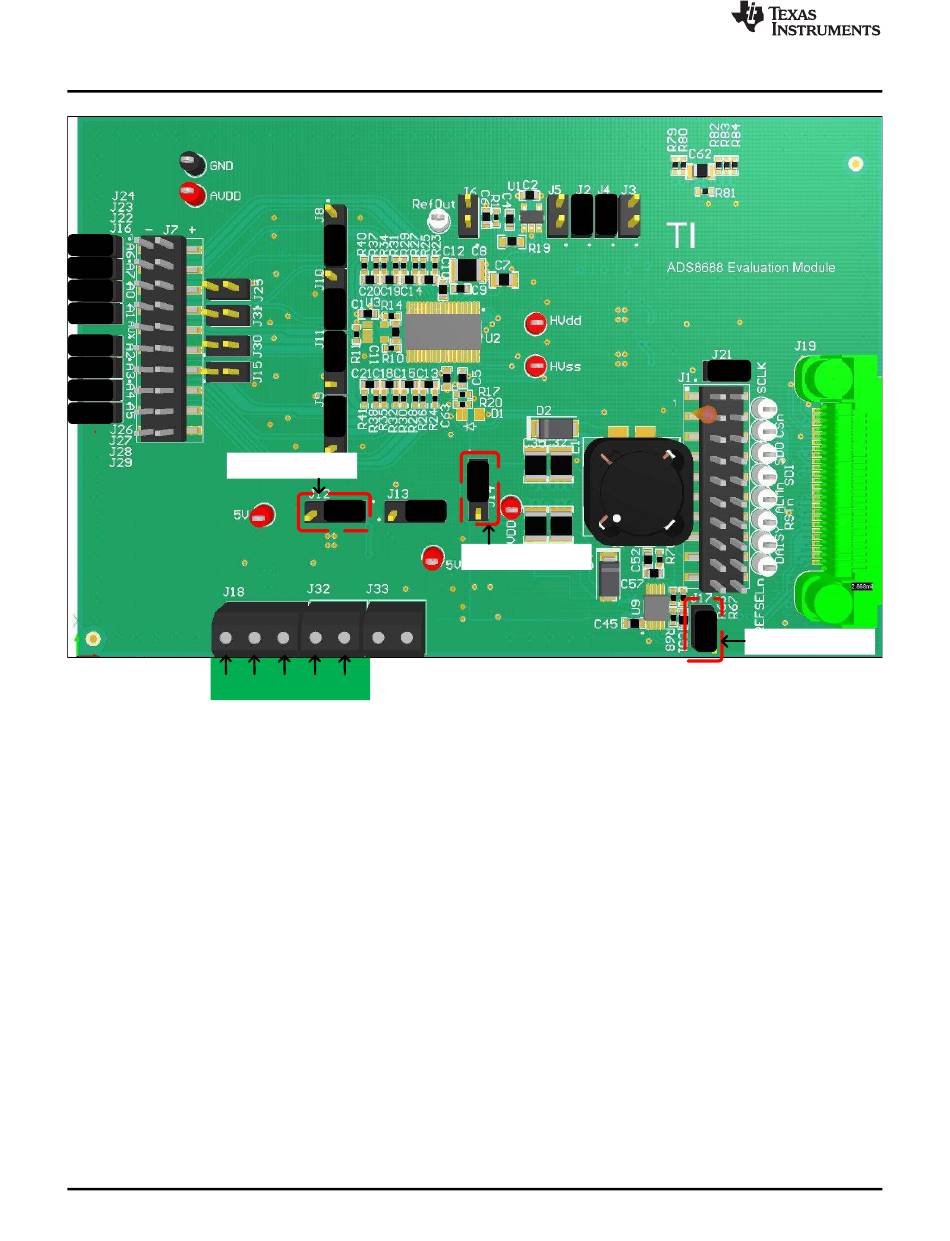

Figure 3. Power-Supply Connections Diagram
Copyright © 2014, Texas Instruments Incorporated
Jumper for Selecting Source for
HVDD
SBAU230A – August 2014 – Revised December 2014
www.ti.com
`
Jumper for Disabling Onboard
regulator for HVDD and HVSS
