10010 – 100C Air Compressor (standard mounting bracket, CE Certified)
10014 – 100C Air Compressor (no leader hose or check valve, CE Certified)
10016 – 100C Air Compressor (with Omega Bracket, CE Certified)
10019 – 100C Air Compressor Stealth Black (with Omega Bracket, CE Certified)
100C - P/N 10010
100C - P/N 10016
It is essential that you and any other operator of this
product read and understand the contents of this manual
P/N 10010
SAVE THIS MANUAL FOR FUTURE REFERENCE

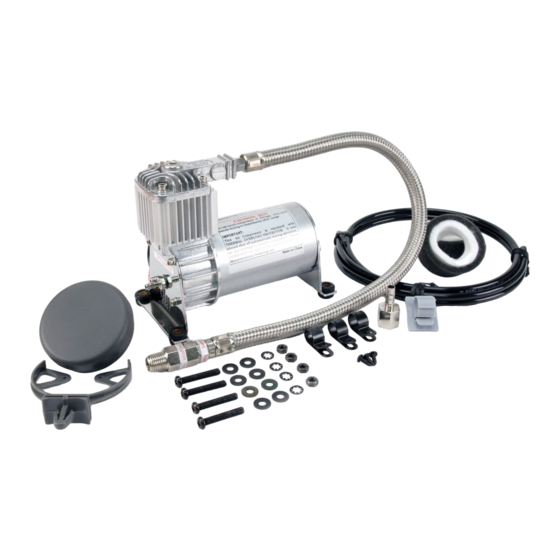

100C Air Compressor Kit
IMPORTANT:
before installing and using this product.
USER MANUAL
100C - P/N 10014
100C - P/N 10019 Stealth Black
P/N 10010
10014
10016
10019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VIAIR 100C
Summary of Contents for VIAIR 100C
- Page 1 100C Air Compressor Kit 10010 – 100C Air Compressor (standard mounting bracket, CE Certified) 10014 – 100C Air Compressor (no leader hose or check valve, CE Certified) 10016 – 100C Air Compressor (with Omega Bracket, CE Certified) 10019 – 100C Air Compressor Stealth Black (with Omega Bracket, CE Certified)
-
Page 2: Important Safety Instructions
100C Air Compressor Kit IMPORTANT SAFETY INSTRUCTIONS CAUTION - To reduce risk of electrical shock or electrocution: - Do not disassemble. Do not attempt repairs or modifications. Refer to qualified service agencies for all service and repairs. - Do not use this product in an area where it can fall or be pulled into water or other liquid. - Do not reach for this product if it has fallen into liquid. - Use this compressor with 12-volt DC systems only. - This product should never be left unattended during use. WARNING - To prevent injury: - Never allow children to operate this compressor. Close supervision is necessary when this compressor is being used near children. -
Page 3: Mounting And Wiring
15. Connect and test compressor system by running the compressor for a short time to build up pressure in your air tank. 16. Once air pressure reaches preset cut out pressure of your pressure switch, the compressor will shut off. Inspect all air line connections for leaks with soap and water solution. If a leak is detected, the air line may not be cut squarely or pushed all the way in. Tighten connections if needed. (Fig. 1) Air Compressor Kit Installation Parts List: 100C - P/N 10010, & 10014 100C - P/N 10016, & 10019 C D E B C D REDUCER A. Hose Bracket (1pc) (P/N 10010 only) A. Mounting Bolts (4pcs) B. Mounting Bolts (4pcs) - Page 4 100C Air Compressor Kit (Fig. 2) Compressor (Fig. 3) Leader Hose Bracket Mounting Hardware L. Hose Clamp B. Mounting Bolt M. Clamp Release Tab C. Flat Washer N. Self Anchoring Pin D. Locking Washer E. Nut K. Vibration Isolator OPERATING INSTRUCTIONS 1. IMPORTANT: Always operate the compressor at or below the MAXIMUM PRESSURE RATING of the compressor. Please refer to Application & Specifications Section of this manual for details. 2. A lways observe the MAXIMUM DUTY CYCLE of the air compressor. Refer to Compressor Applications and Specification Sections of this manual for details. Operation exceeding maximum pressure ratings and/or duty cycle will result in damage to the air compressor. 3. Y our air compressor is equipped with an AUTOMATIC THERMAL OVERLOAD PROTECTOR. This feature is designed to protect the air compressor from overheating and causing permanent damage to your air compressor. The thermal overload protector will automatically cut power to your air compressor should the internal operating temperature of the air compressor rise above safe levels during excessive use.
-
Page 5: Maintenance And Repairs
100C Air Compressor Kit MAINTENANCE & REPAIRS 1. Periodically check all electrical and fitting connections. Clean and tighten as needed. 2. Periodically check all mounting screws. Tighten as needed. 3. R eplace air filter element periodically. Replacement frequency depends on operating frequency and operating environment. For frequent use in dusty environments, we recommend that you replace air filter element at least once a month. 4. R egularly clean dust and dirt from compressor cooling fins and motor housing. 5. Y our air compressor is equipped with permanently lubricated, maintenance-free motor. Never try to lubricate compressor. 6. A ll repairs should be performed by Manufacturer or Manufacturer’s Authorized Service Agencies only. CAUTION: Never touch the air compressor or fittings connected to the air compressor with bare hands during or immediately after use. Leader hose and fittings connected to Leader Hose will become very hot during and after use. If necessary, wear heat resistant gloves to handle fittings, air line, and leader hose. - Page 6 100C Air Compressor Kit COMPRESSOR APPLICATION GUIDE To ensure that you get the highest level of satisfaction from your compressor performance, refer to information below: VIAIR COMPRESSOR REFERENCE CHART COMPRESSOR SERIES MAX. WORKING DUTY CYCLE PRESSURE (100 PSI @ 72°F) 090 SERIES 120 PSI 9% 092 SERIES 120 PSI 9% 095 SERIES 120 PSI 9% 097 SERIES 130 PSI 10% 098 SERIES 130 PSI 10% 100 SERIES 130 PSI 15% 250 IG SERIES 150 PSI 100%...
-
Page 7: Troubleshooting Guide
100C Air Compressor Kit TROUBLESHOOTING GUIDE: PROBLEM: POSSIBLE CAUSE(S) CORRECTIVE ACTION Tank pressure drops when 1. Loose drain cock 1. Tighten drain cock compressor(s) shut off 2. Check valve leaking 2. Replace check valve or 3. Loose connections compressor 3. Check all connections with soap and water solution and tighten Compressor runs 1. Excessive air usage 1. Decrease air usage continuously and air flow 2. Loose connections... - Page 8 100C Air Compressor Kit AMERICAN WIRE GAUGE GUIDE 12-VOLT: Length of wire from battery to compressor (in feet) Amp Draw SINGLE “C” MODEL COMPRESSOR WIRING DIAGRAM Wiring Diagram: (Fuse Not Included) 12V 40A Relay Fuse Battery To Keyed Power Source Pressure Switch LIMITED WARRANTY: VIAIR Corporation warrants this product, when properly installed and under normal conditions of use, to be free from defects in workmanship and materials for a period of one year from its original date of purchase. To receive warranty service or repair, please 15 Edelman contact VIAIR Corporation.
